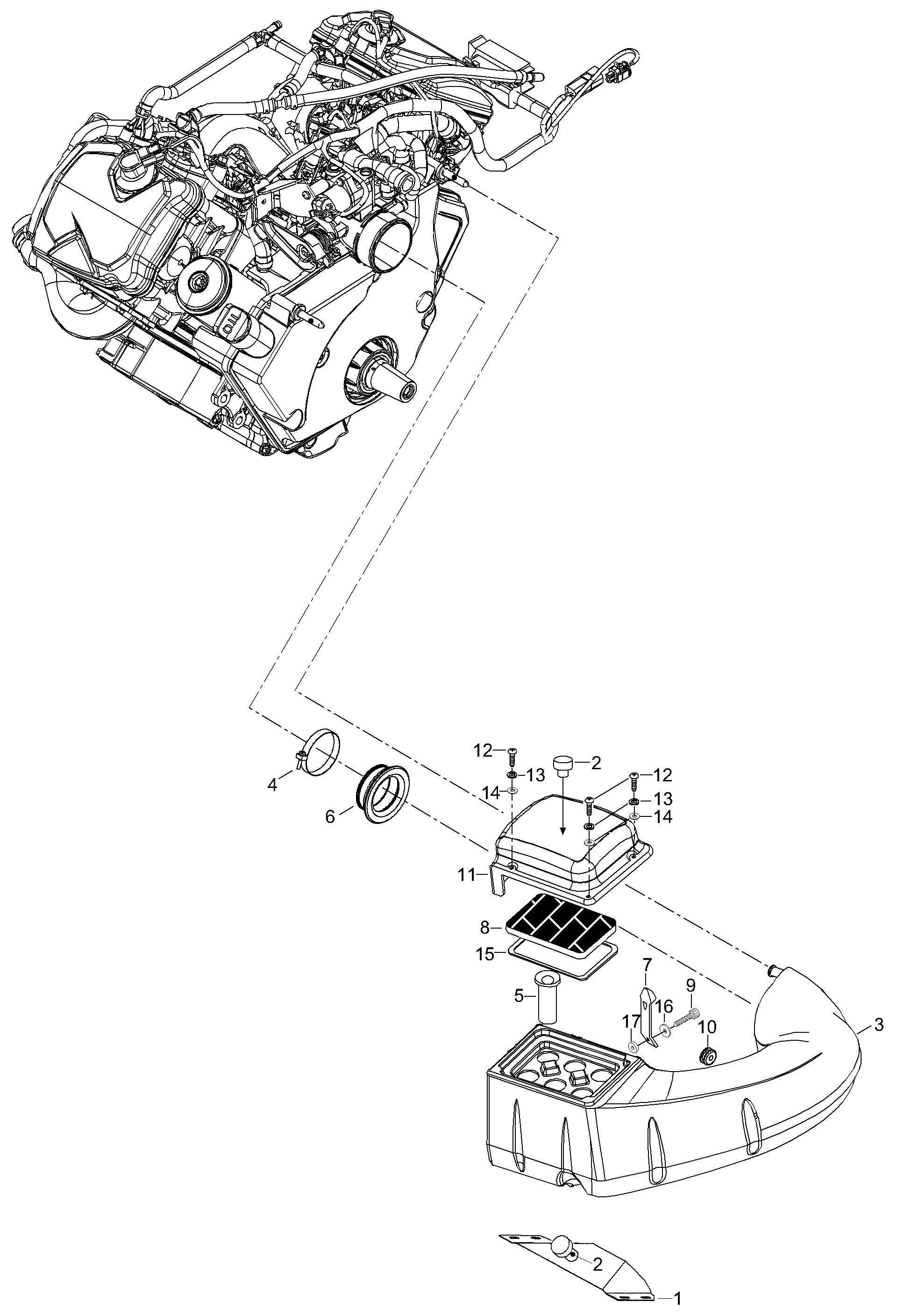

01- Air Silencer для BRP Lynx 59 YETI - 2004
-
№АртикулНазвание
-
1605351370 Bracket, air intakeBracket, air intake
-
2570044700 Rubber damperRubber damper
-
3605150516 AirboxAirbox
-
4508000382 ClampClamp
-
55444445 Inlet tubeInlet tube
-
6508000254 Intake adaptorIntake adaptor
-
7531955 LatchLatch
-
8605350180 FilterFilter
-
940364 Allen screw M6 x 16Allen screw M6 x 16
-
10570065500 GrommetGrommet
-
11605250565 CoverCover
-
1240070 Screw M5 x 10Screw M5 x 10
-
1320013 Spring washerSpring washer
-
1420008 WasherWasher
-
15415110900 StripeStripe
-
16543392 WasherWasher
-
17543417 SleeveSleeve
