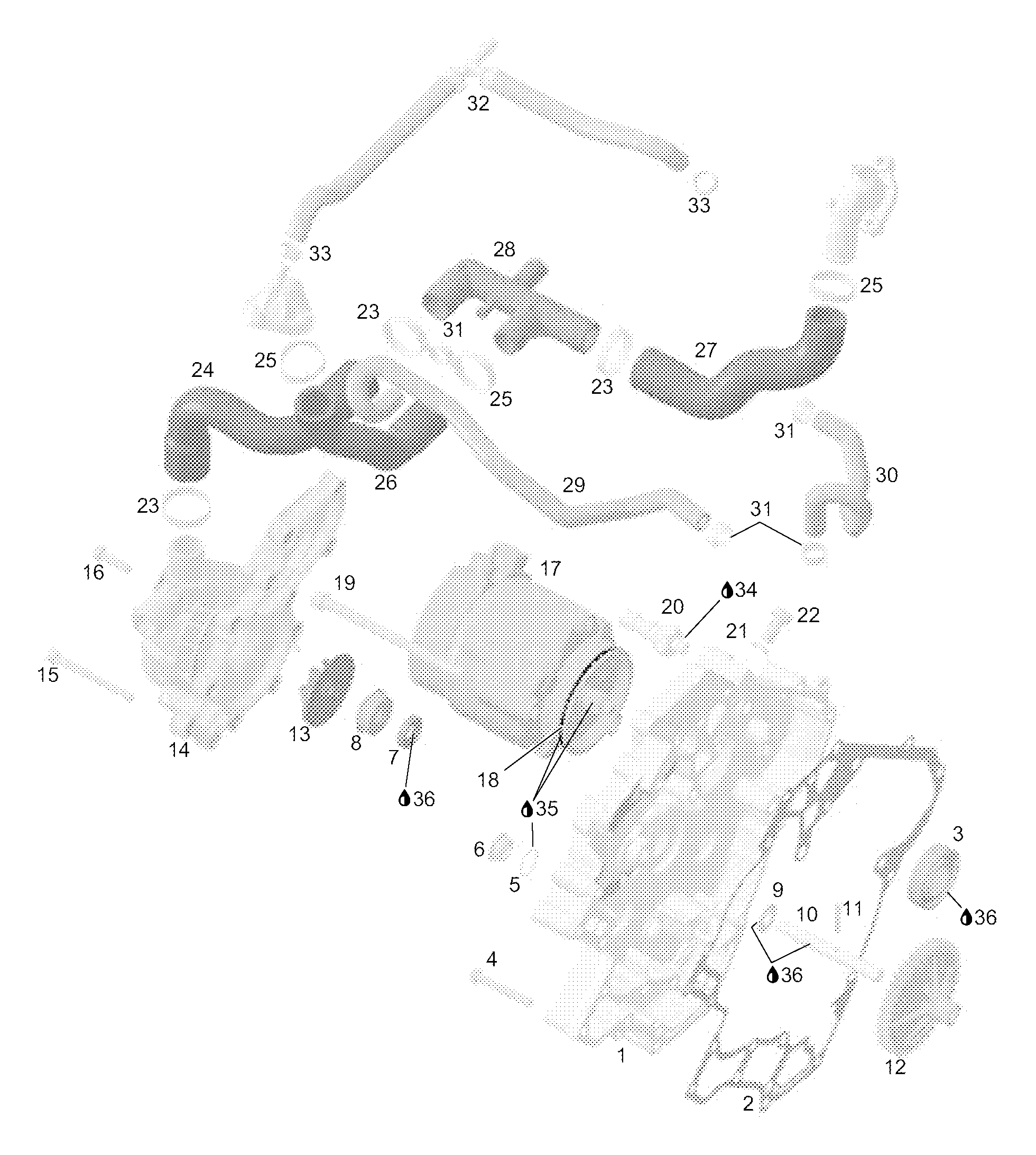

01- Waterpump для BRP Lynx 59 YETI - 2004
-
№АртикулНазвание
-
1420811661 Ignition coverIgnition cover
-
2420950590 GasketGasket
-
3420932650 Ball bearingBall bearing
-
4420440322 Screw M6 x 45Screw M6 x 45
-
5420250890 O-ringO-ring
-
6420241801 Plug screwPlug screw
-
7420650310 Oil sealOil seal
-
8420650370 Rotary sealRotary seal
-
9420227685 Thrust washerThrust washer
-
10420837480 Waterpump shaftWaterpump shaft
-
11420232430 Needle pinNeedle pin
-
12420834460 Waterpump gear (41 teeth)Waterpump gear (41 teeth)
-
13420222500 ImpellerImpeller
-
14420811605 Waterpump housingWaterpump housing
-
15420440602 Screw M6 x 65Screw M6 x 65
-
16420440232 Screw M6 x 25Screw M6 x 25
-
17420296460 Alternator (40 amperes)Alternator (40 amperes)
-
18420850430 O-ringO-ring
-
19420941651 Screw M8 x 119Screw M8 x 119
-
20420256772 Oil pressure switchOil pressure switch
-
21420230150 Gasket ringGasket ring
-
22420940874 Banjo bolt M10 x 19Banjo bolt M10 x 19
-
23420853173 ClampClamp
-
24420922180 Molded hoseMolded hose
-
25420853163 ClampClamp
-
26420922745 Molded hoseMolded hose
-
27420922740 Molded hoseMolded hose
-
28293700023 Elbow fittingElbow fitting
-
29420822090 Molded hoseMolded hose
-
30420822092 Molded hoseMolded hose
-
31420853303 ClampClamp
-
32420660881 Molded hose assyMolded hose assy
-
33420853303 ClampClamp
-
34293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
35293550014 Grease, super lubeGrease, super lube
-
36293600054 Oil, 0 W 40, 12x1 literOil, 0 W 40, 12x1 liter
