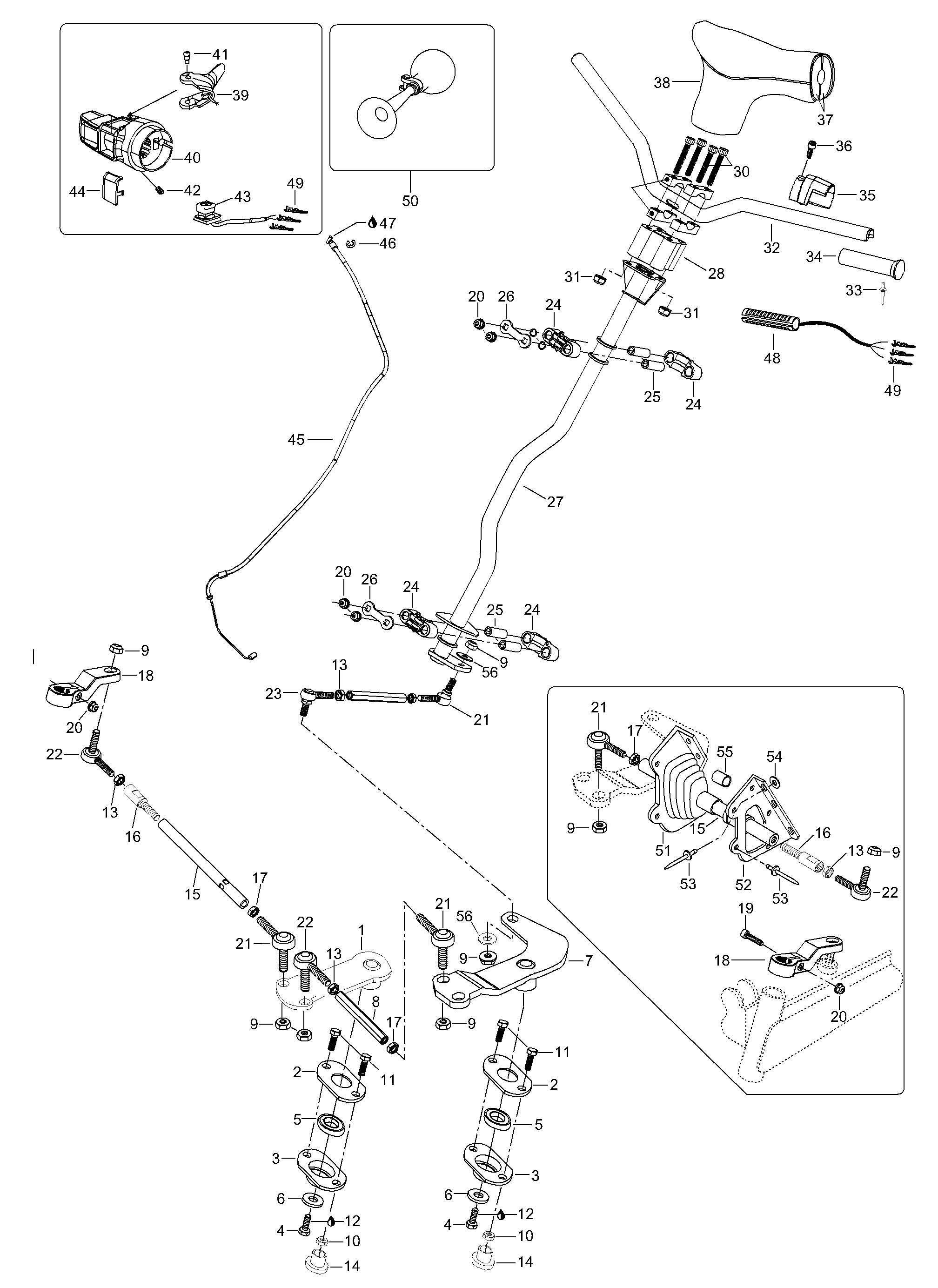

07- Steering для BRP Lynx 59 YETI - 2004
![](/wa-data/public/shop/sheme/bombardier/lynx/1945a608-3eba-447c-bda8-990667a77d65.png)
-
№АртикулНазвание
-
1605350266 R.H. Lever weldR.H. Lever weld
-
25345380 PlatePlate
-
3605350644 Bearing SupportBearing Support
-
440337 Screw M8 x 16Screw M8 x 16
-
5405404500 BearingBearing
-
65446279 WasherWasher
-
7605350826 L.H. Lever weldL.H. Lever weld
-
8605448308 Tie rod, shortTie rod, short
-
933023 Nut elastic M10Nut elastic M10
-
1033011 Nut elastic M8Nut elastic M8
-
1140336 Screw M8 x 20Screw M8 x 20
-
12293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
1333019 Nut M10 R.H.Nut M10 R.H.
-
1428210 PluggPlugg
-
15605450794 Tie rodTie rod
-
16605450793 AdjusterAdjuster
-
1733017 Nut M10 L.H.Nut M10 L.H.
-
185348261 Steering ArmSteering Arm
-
1940828 Allen screw M8 x 35Allen screw M8 x 35
-
2033201 Elastic flanged nut M8Elastic flanged nut M8
-
21506151495 Ball joint, leftBall joint, left
-
22506151492 Ball joint, rightBall joint, right
-
23605450895 Ball joint, rightBall joint, right
-
24506150400 Half-housingHalf-housing
-
25506150500 Bushing-housingBushing-housing
-
26506150600 Plate stopperPlate stopper
-
27605150632 Steering paleSteering pale
-
28605351275 Extension, 90 mmExtension, 90 mm
-
29548448 FasteningFastening
-
3040209 Allen screw M8 x 130Allen screw M8 x 130
-
3133027 Elastic stop nut M8Elastic stop nut M8
-
32605251368 Steering handle barSteering handle bar
-
3336005 RivetRivet
-
345340464 HandleHandle
-
35506151566 AdaptorAdaptor
-
3640390 Allen screw M8 x 20Allen screw M8 x 20
-
37605250567 Foam, front partFoam, front part
-
37605250568 Foam, rear partFoam, rear part
-
38605250569 CoverCover
-
39512059766 Heated handleHeated handle
-
40512059763 Throttle handle hous.Throttle handle hous.
-
41732601143 ScrewScrew
-
42414440800 Screw M8 x 10Screw M8 x 10
-
43515175410 Kill switchKill switch
-
44572100901 CoverCover
-
45512059349 Throttle CableThrottle Cable
-
4631038 CirclipCirclip
-
47293550004 Dielectric grease, 150gDielectric grease, 150g
-
48515175664 Heating grip kitHeating grip kit
-
4942603 ConnectorConnector
-
5021003 Condor HornCondor Horn
-
51570024800 R.H. Cap rod tieR.H. Cap rod tie
-
51570024900 R.H. Cap rod tieR.H. Cap rod tie
-
52605350120 R.H. Plate-capR.H. Plate-cap
-
52605350119 L.H. Plate-capL.H. Plate-cap
-
5336037 RivetRivet
-
5420008 WasherWasher
-
55572036500 BushingBushing
-
5620105 WasherWasher
