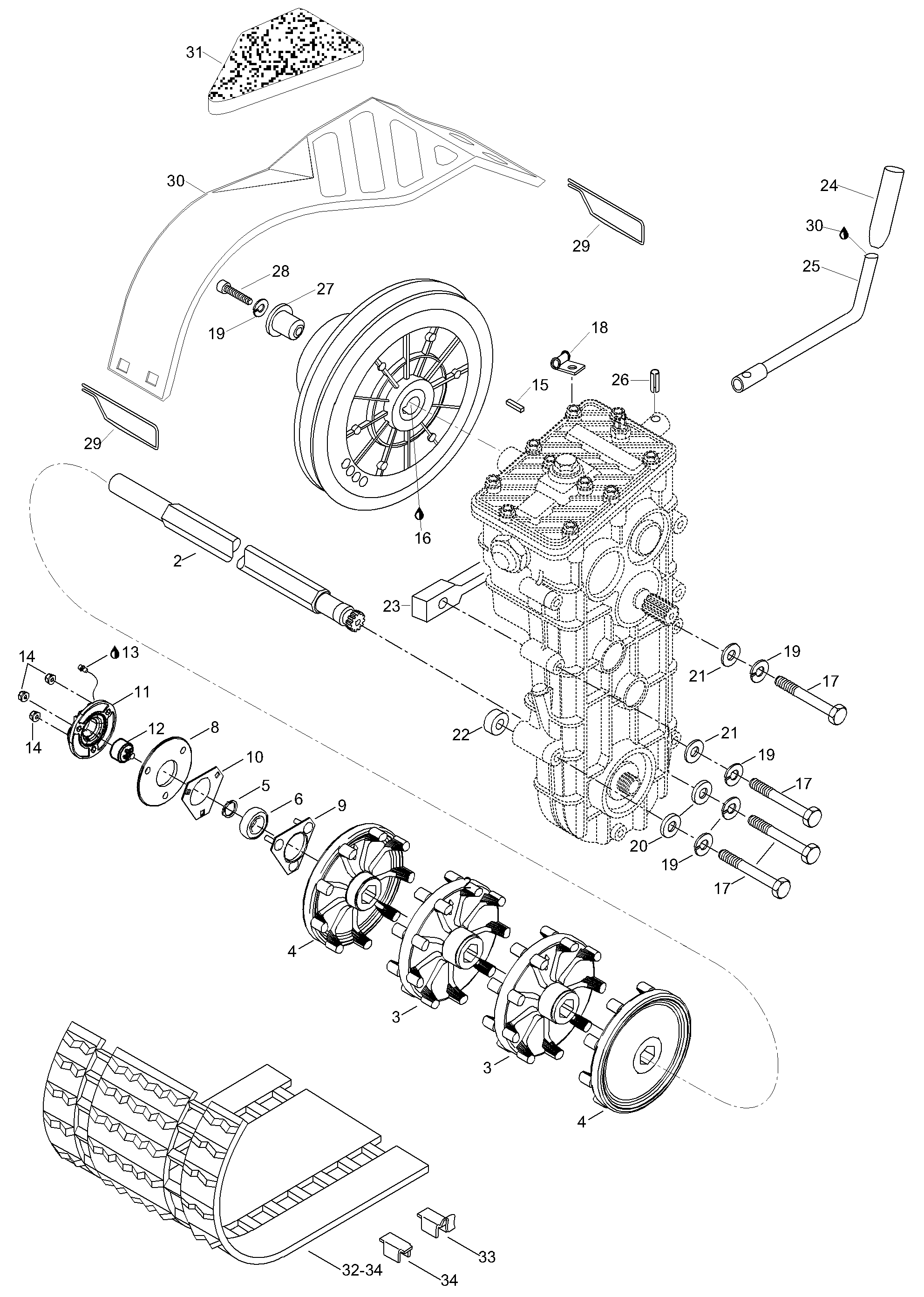

05- Drive Axle для BRP Lynx 59 YETI - 2004
-
№АртикулНазвание
-
1605250539 Drive axle assy. Includes items 1 thru 5Drive axle assy. Includes items 1 thru 5
-
2605249455 Drive axleDrive axle
-
3414931800 Sprocket 1:1Sprocket 1:1
-
4415067400 Sprocket 1:2Sprocket 1:2
-
5371910200 CirclipCirclip
-
6504152009 BearingBearing
-
7501017400 Ball bearing protectorBall bearing protector
-
85446641 PlatePlate
-
9504151860 Bearing housingBearing housing
-
10501025000 FlangeFlange
-
11504152173 FlangeFlange
-
12504152040 Magnetic, adaptorMagnetic, adaptor
-
13413711500 Synthetic greaseSynthetic grease
-
1433201 Elastic flanged nut M8Elastic flanged nut M8
-
15418763 KeyKey
-
16293800070 Loctite 767, 8 ozLoctite 767, 8 oz
-
1740299 Screw M8 x 100Screw M8 x 100
-
185443134 ClampClamp
-
1920014 Lock washerLock washer
-
2020077 WasherWasher
-
2120104 Washer, hardenedWasher, hardened
-
22605450155 SleeveSleeve
-
23605351366 Connecting barConnecting bar
-
2428247 ButtonButton
-
25605350153 Shift handleShift handle
-
2641007 Spring keySpring key
-
275443201 SpacerSpacer
-
2840286 Allen screw M8 x 45Allen screw M8 x 45
-
295442726 PinPin
-
30605149860 Belt guardBelt guard
-
31605250741 FoamFoam
-
3213070 Track (31.8). Includes items 32 thru 34Track (31.8). Includes items 32 thru 34
-
335318323 Cleat guideCleat guide
-
345318322 Slide guideSlide guide
