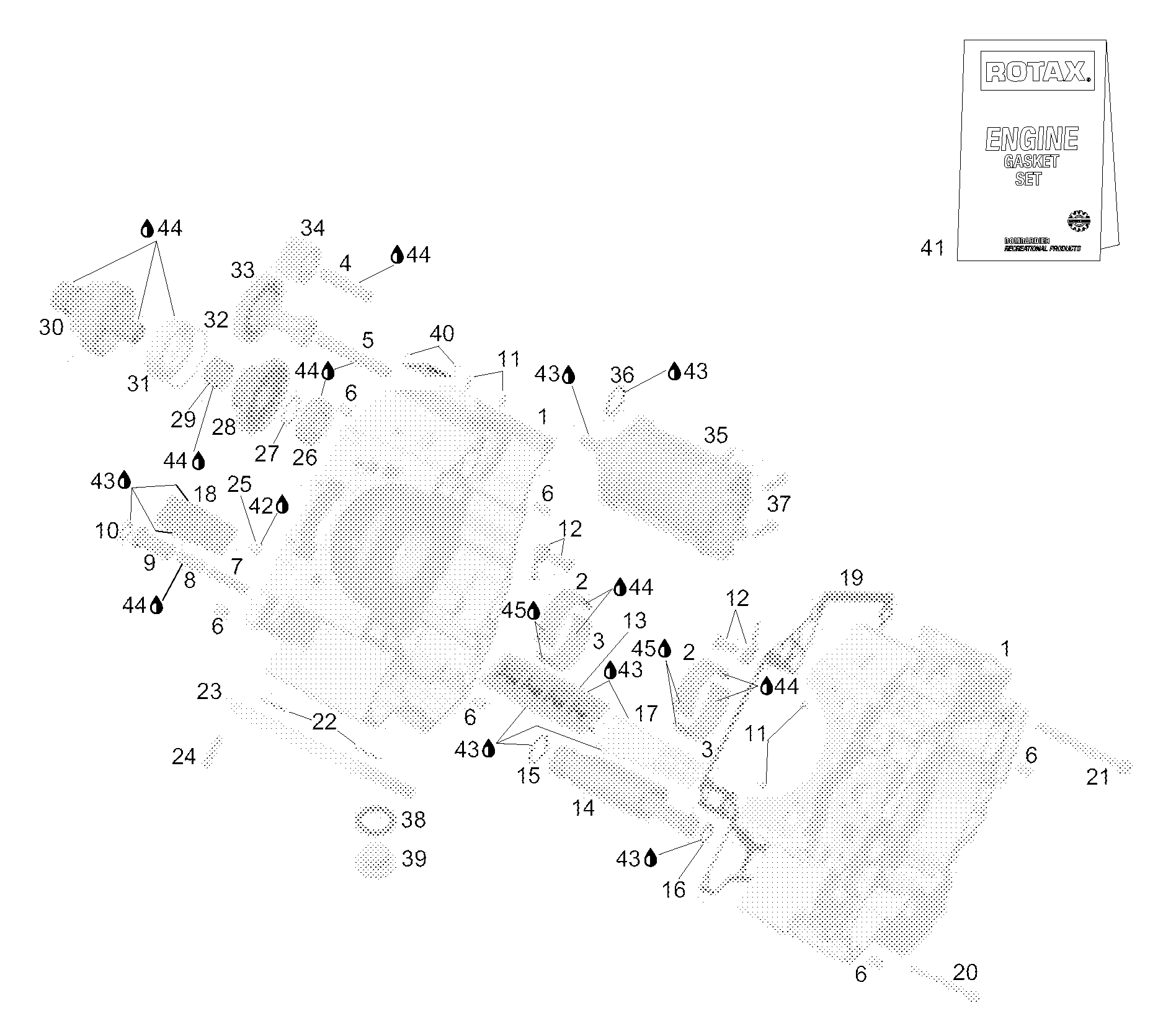

05- Crankcase для BRP Lynx 59 YETI - 2004
-
№АртикулНазвание
-
1420888883 Crankcase ass’y. Includes items 1 thru 11Crankcase ass’y. Includes items 1 thru 11
-
2420933492 Bearing sleeveBearing sleeve
-
3420933495 Plain BearingPlain Bearing
-
4420229301 Location pinLocation pin
-
5420229410 PinPin
-
6420632010 Center pinCenter pin
-
7420239445 SpringSpring
-
8420256510 Pressure regulating pistonPressure regulating piston
-
9420956780 Valve seatValve seat
-
10420230880 O-ringO-ring
-
11420929650 Drive pin 5 x 10Drive pin 5 x 10
-
12420956820 Oil nozzle assyOil nozzle assy
-
13420924735 Valve housins assyValve housins assy
-
14420956790 Oil sieve ass’y. Includes items 14 thru 16Oil sieve ass’y. Includes items 14 thru 16
-
15420931630 O-ringO-ring
-
16293300024 O-ringO-ring
-
17420856070 Oil sieveOil sieve
-
18420856072 Oil sieveOil sieve
-
19420950600 GasketGasket
-
20420440602 Screw M6 x 65Screw M6 x 65
-
21420440412 Screw M8 x 90Screw M8 x 90
-
22420430370 O-ringO-ring
-
23420811770 CoverCover
-
24420440232 Screw M6 x 25Screw M6 x 25
-
25420240480 Plug screw 1/8-27Plug screw 1/8-27
-
26420232192 Ball bearingBall bearing
-
27420227440 Thurst washerThurst washer
-
28420834410 Cam clutch drive gear (32)Cam clutch drive gear (32)
-
29420232745 Needle bearingNeedle bearing
-
30420834407 Generator gear ass’y. Includes items 30 thru 32Generator gear ass’y. Includes items 30 thru 32
-
31420259492 Sprag clutchSprag clutch
-
32420845590 Snap ringSnap ring
-
33420834705 Double gear (61/11 teeth)Double gear (61/11 teeth)
-
34420834430 Intermediate gear (33 teethIntermediate gear (33 teeth
-
35420296480 Electric starter assyElectric starter assy
-
37420440232 Screw M6 x 25Screw M6 x 25
-
38420950620 Gasket ring (plug screw)Gasket ring (plug screw)
-
39420641090 Plug screwPlug screw
-
41420889980 Gasket set engineGasket set engine
-
42293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
43293550014 Grease, super lubeGrease, super lube
-
44293600054 Engine oil 4 strokes, 0W40,Engine oil 4 strokes, 0W40,
-
45420899271 Petamo grease GHY133N,Petamo grease GHY133N,
