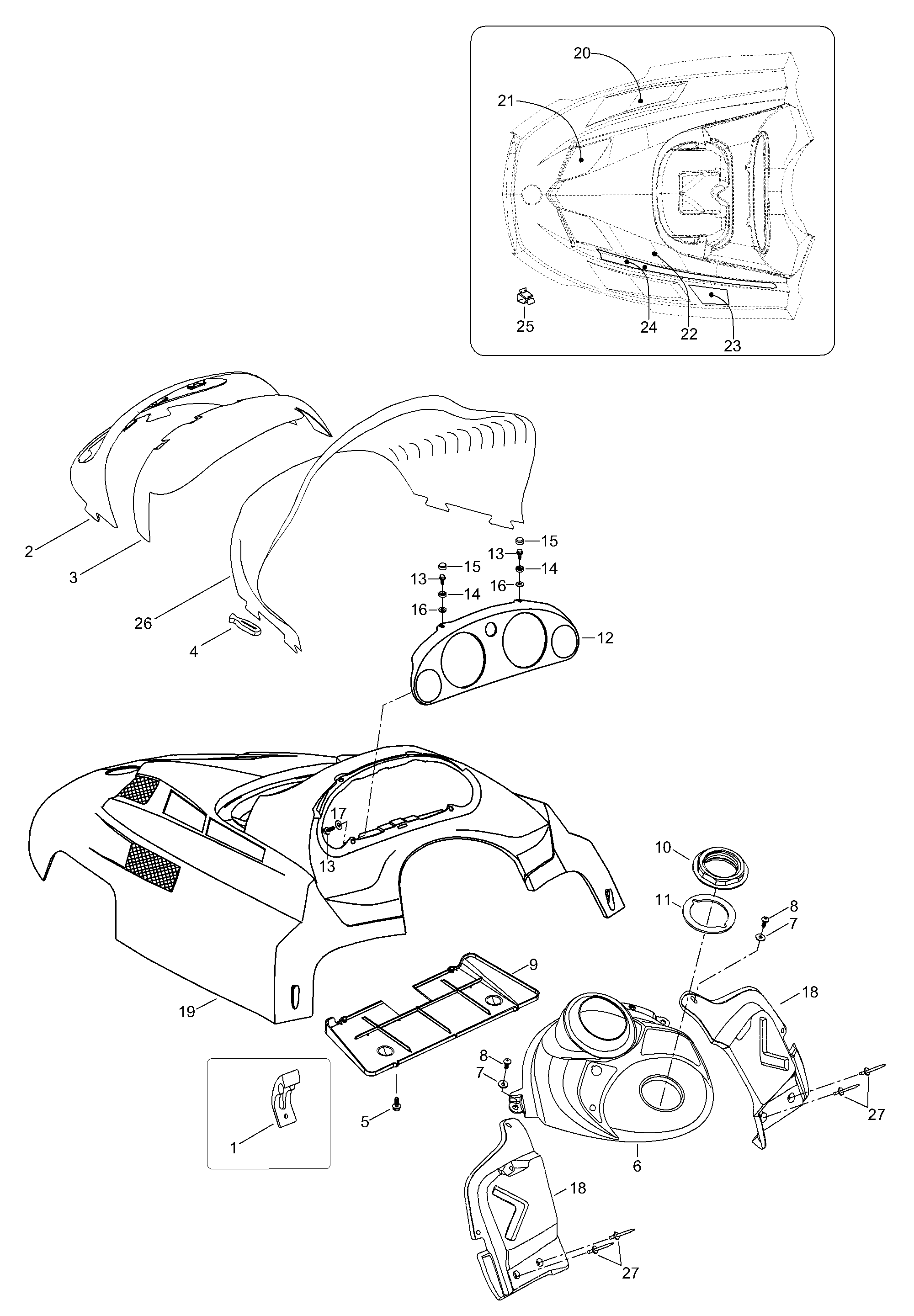

09- Hood для BRP Lynx 59 YETI - 2004
-
№АртикулНазвание
-
1517302152 Hood latchHood latch
-
2517302158 Mold. head lampMold. head lamp
-
3517302003 Windshield supportWindshield support
-
4570023800 Windshield latchWindshield latch
-
5243141640 Screw M4 x 16Screw M4 x 16
-
6517302729 Center consoleCenter console
-
720008 WasherWasher
-
8732600030 ScrewScrew
-
9605250865 Air intake plateAir intake plate
-
10517302043 Console nutConsole nut
-
115447116 GasketGasket
-
12605351374 Indicator supportIndicator support
-
13241140060 Screw K40 x 10Screw K40 x 10
-
14414436800 Retainer capRetainer cap
-
15414436900 Snap capSnap cap
-
16234042600 WasherWasher
-
17517124300 WasherWasher
-
18605250614 R.H.consoleR.H.console
-
18605250613 L.H.consoleL.H.console
-
19605150537 Hood, Seashore. Includes items 19 thru 25Hood, Seashore. Includes items 19 thru 25
-
20605350924 R.H. upper grillR.H. upper grill
-
20605350923 L.H. upper grillL.H. upper grill
-
21605350926 R.H. lower grillR.H. lower grill
-
21605350925 L.H. lower grillL.H. lower grill
-
22605350927 L.H. upper grillL.H. upper grill
-
23605350929 Heat shieldHeat shield
-
24605350921 Heat shieldHeat shield
-
25414227300 ClipClip
-
26605150480 WindshieldWindshield
-
2736036 RivetRivet
