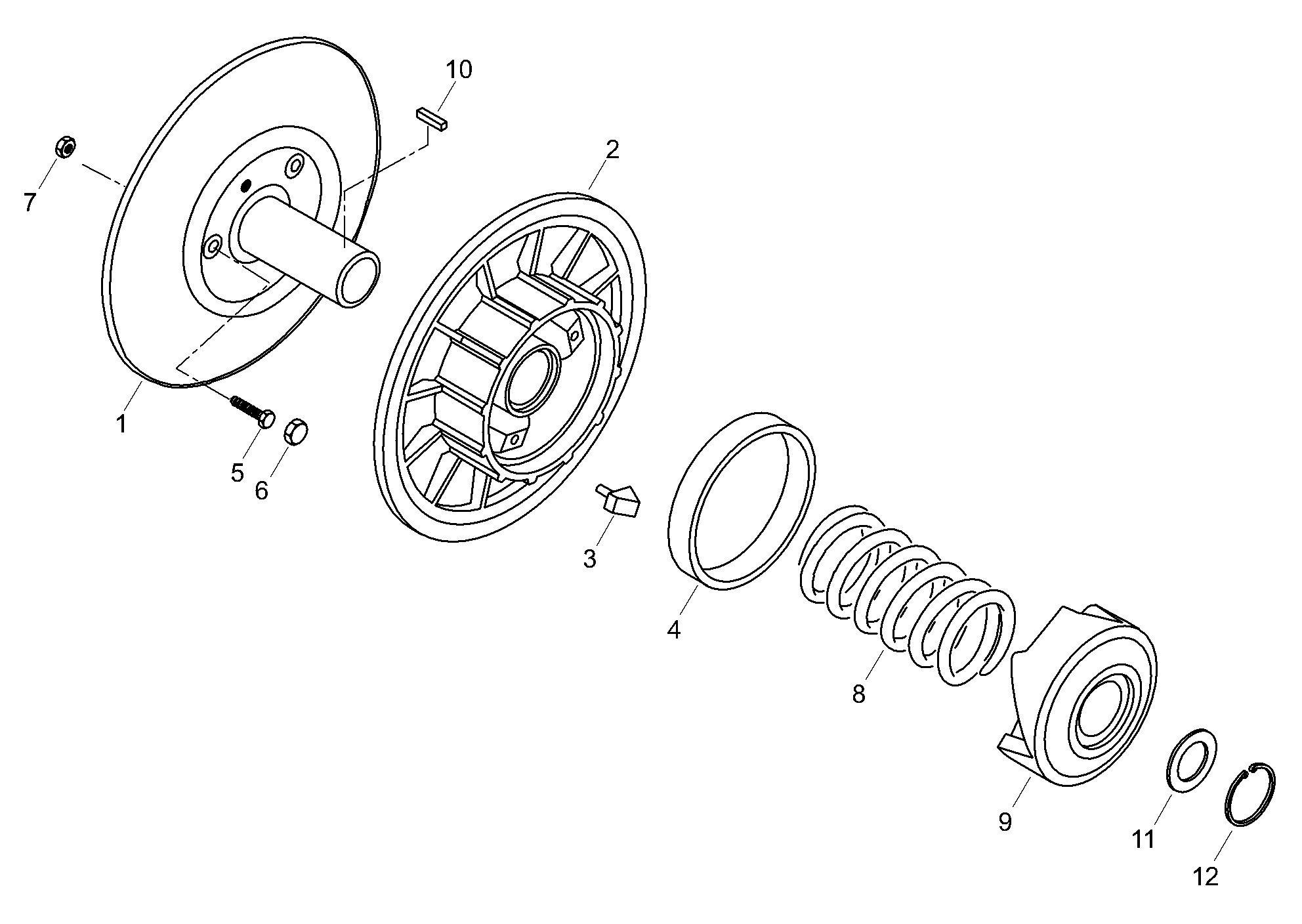

05- Driven Pulley для BRP Lynx 59 YETI - 2004
-
№АртикулНазвание
-
1140050 Fixed half pulleyFixed half pulley
-
2140051 Sliding half pulley. Includes items 2 thru 4Sliding half pulley. Includes items 2 thru 4
-
3417212500 Cam shoeCam shoe
-
4140053 Cam bushingCam bushing
-
5417118900 Hexagonal head screwHexagonal head screw
-
6417119600 Plastic capPlastic cap
-
7417119000 Nut M6Nut M6
-
8140056 Spring, blackSpring, black
-
9140057 Fix cam 40/30Fix cam 40/30
-
10417119400 Sguare keySguare key
-
11417114900 Shim 0.05'’Shim 0.05'’
-
11417117000 Shim 0.025'’Shim 0.025'’
-
12417119500 Snap ringSnap ring
