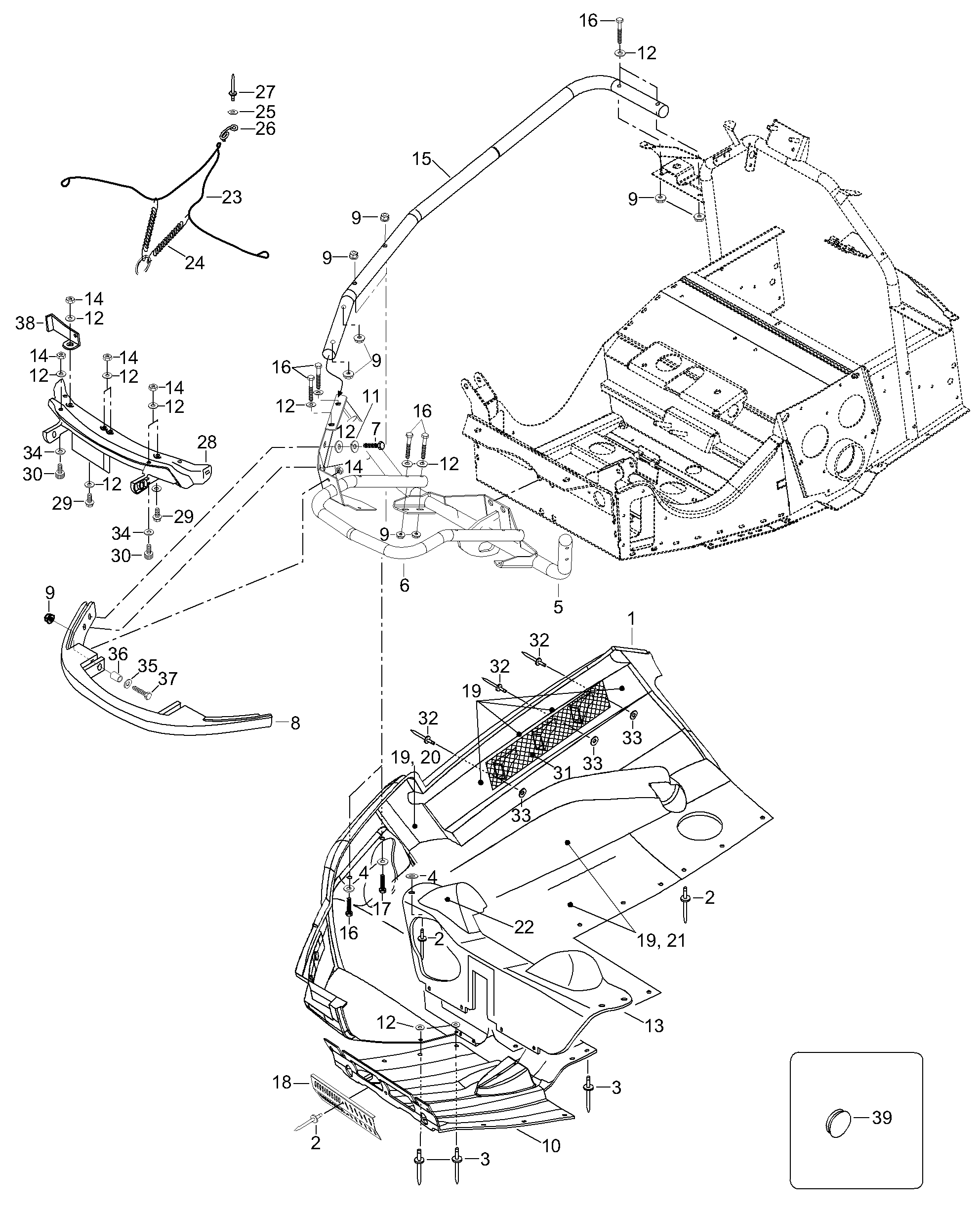

09- Bottom Pan для BRP Lynx 59 YETI - 2004
![](/wa-data/public/shop/sheme/bombardier/lynx/f174cbd2-cfeb-441b-b09e-d2c8a0791ec9.png)
-
№АртикулНазвание
-
1605149806 R.H. bottom panR.H. bottom pan
-
1605149805 L.H. bottom panL.H. bottom pan
-
236037 RivetRivet
-
336072 RivetRivet
-
420008 WasherWasher
-
5605350850 Bumper supportBumper support
-
6605351509 BumperBumper
-
740029 Screw M6 x 16Screw M6 x 16
-
8502006719 BumperBumper
-
933200 Elastic flanged nut M6Elastic flanged nut M6
-
10605149807 Bottompan, centerBottompan, center
-
1120052 Lock washerLock washer
-
1220009 WasherWasher
-
13605250708 CoverCover
-
1433010 Nut elastic M6Nut elastic M6
-
15605150849 Side bumperSide bumper
-
1640002 Screw M6 x 40Screw M6 x 40
-
1740084 Screw M6 x 45Screw M6 x 45
-
18605251582 GrillGrill
-
1944001 Reflective sheetReflective sheet
-
20605351212 Heat protectorHeat protector
-
21605351213 Heat protectorHeat protector
-
22605351214 Heat protectorHeat protector
-
23605351372 Retainer cableRetainer cable
-
245442675 SpringSpring
-
2520002 WasherWasher
-
265442870 Cable keeperCable keeper
-
2736005 RivetRivet
-
28517302631 Hinge halfHinge half
-
2940030 Screw M6 x 20Screw M6 x 20
-
3040381 Allen screw M6 x 20Allen screw M6 x 20
-
31605351546 GrillGrill
-
3236891 RivetRivet
-
3320037 WasherWasher
-
3420117 WasherWasher
-
3520003 WasherWasher
-
36517302179 BushingBushing
-
3740003 Screw M6 x 35Screw M6 x 35
-
38605351464 R.H. BracketR.H. Bracket
-
38605351463 L.H. BracketL.H. Bracket
