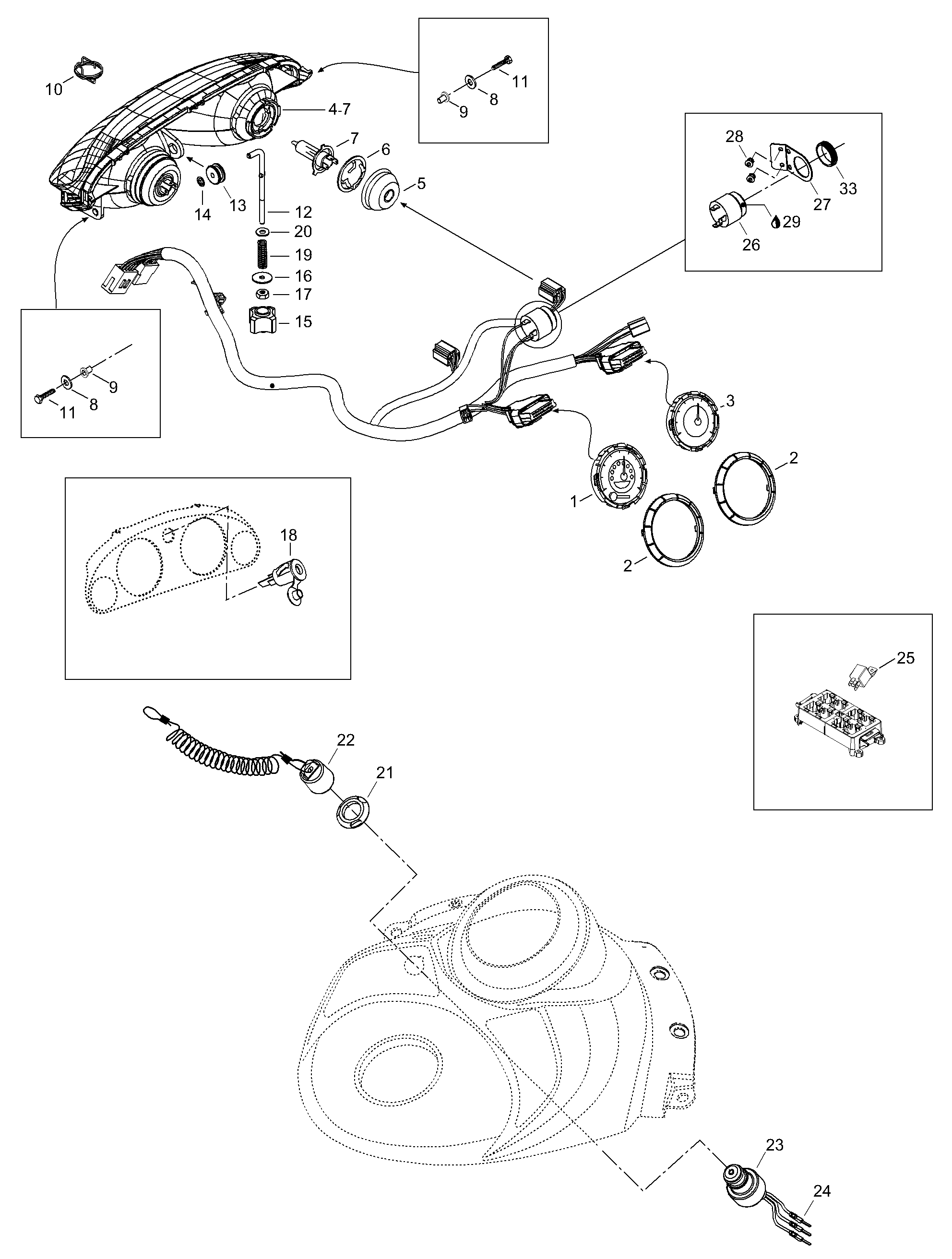

10- Electric для BRP Lynx 59 YETI - 2004
-
№АртикулНазвание
-
1515176185 SpeedometerSpeedometer
-
2515175651 Ring gaugeRing gauge
-
3515176072 TachometerTachometer
-
4515175909 Twin headlamp assy. Includes items 4 thru 7Twin headlamp assy. Includes items 4 thru 7
-
5410607100 CoverCover
-
6410608300 Bulb holderBulb holder
-
7410504401 Halogen bulb 60/55WHalogen bulb 60/55W
-
820008 WasherWasher
-
9250100018 WellnutWellnut
-
105447238 SpringSpring
-
1140235 Allen screw M5 x 35Allen screw M5 x 35
-
12605450023 Adjuster rodAdjuster rod
-
13415100800 GrommetGrommet
-
14732610072 Nut pushNut push
-
15515175548 HandleHandle
-
1620038 WasherWasher
-
1733010 Nut elastic M6Nut elastic M6
-
1842026 Flush Mounted SocketFlush Mounted Socket
-
19415100600 SpringSpring
-
2020003 WasherWasher
-
21278000508 Safety switch nutSafety switch nut
-
22515166900 Cap assy, D.E.S.S.Cap assy, D.E.S.S.
-
23515166800 DESS-switchDESS-switch
-
2442603 ConnectorConnector
-
25410113604 RelayRelay
-
26515176035 Back up alarmBack up alarm
-
275447941 Support for back up alarmSupport for back up alarm
-
2836005 RivetRivet
-
29293800086 Silicone sealant, 300 mlSilicone sealant, 300 ml
