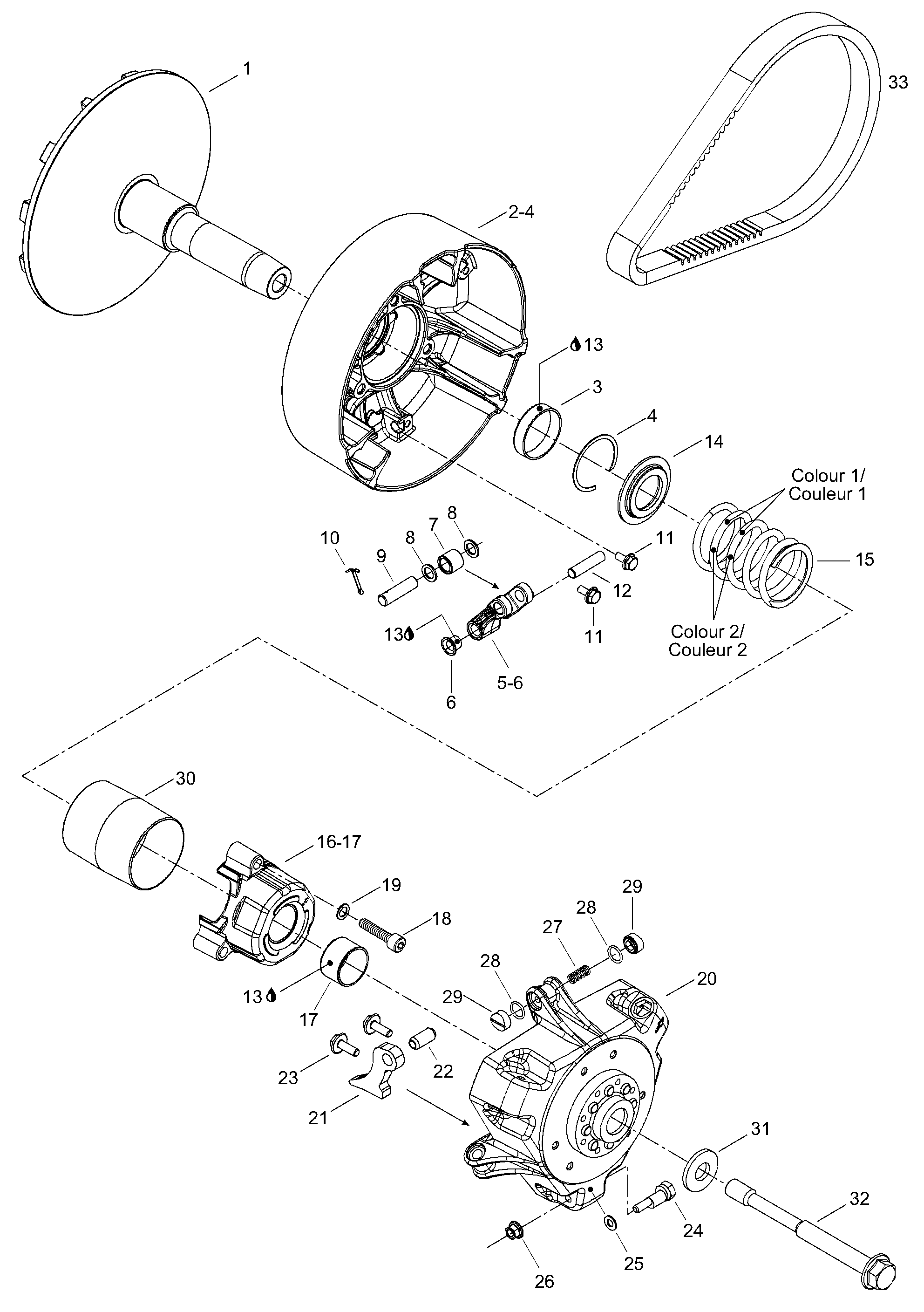

05- Clutch для BRP Lynx 59 YETI - 2004
-
№АртикулНазвание
-
1417222593 Inner half assyInner half assy
-
2417222629 Outer half assy. Includes items 2 thru 4Outer half assy. Includes items 2 thru 4
-
3417006900 Bushing outer halfBushing outer half
-
4293370037 CirclipCirclip
-
5417222672 Lever assy. Includes items 5 thru 6Lever assy. Includes items 5 thru 6
-
6417222633 Flanged bushingFlanged bushing
-
7417003900 Roller assyRoller assy
-
8417004302 Thrust washerThrust washer
-
9417222594 PinPin
-
10732958001 Cotter pinCotter pin
-
11210361296 Screw M6 x 12Screw M6 x 12
-
12417009202 Lever axleLever axle
-
13413703100 Loctite 609 10ccLoctite 609 10cc
-
14417222312 Spring seatSpring seat
-
15414817500 Spring, red/yellowSpring, red/yellow
-
16417007500 Spring cover assy. Includes items 16 thru 17Spring cover assy. Includes items 16 thru 17
-
17417009204 Bushing Spring coverBushing Spring cover
-
18205084044 Allen screw M6 x 40Allen screw M6 x 40
-
19250200009 Friction-washerFriction-washer
-
20417222530 Governor cupGovernor cup
-
21417222569 Ramp 607Ramp 607
-
22250400009 Dowel tubeDowel tube
-
23250000059 Hex. locking screw M6 x 18Hex. locking screw M6 x 18
-
24417005500 Calibration screwCalibration screw
-
25417005600 WasherWasher
-
26233061414 Locking nut M6Locking nut M6
-
27417005700 SpringSpring
-
28732401030 O-ringO-ring
-
29417222362 Slider shoeSlider shoe
-
30417009205 ProtectorProtector
-
3120110 WasherWasher
-
32417300242 ScrewScrew
-
33605348425 Drive beltDrive belt
