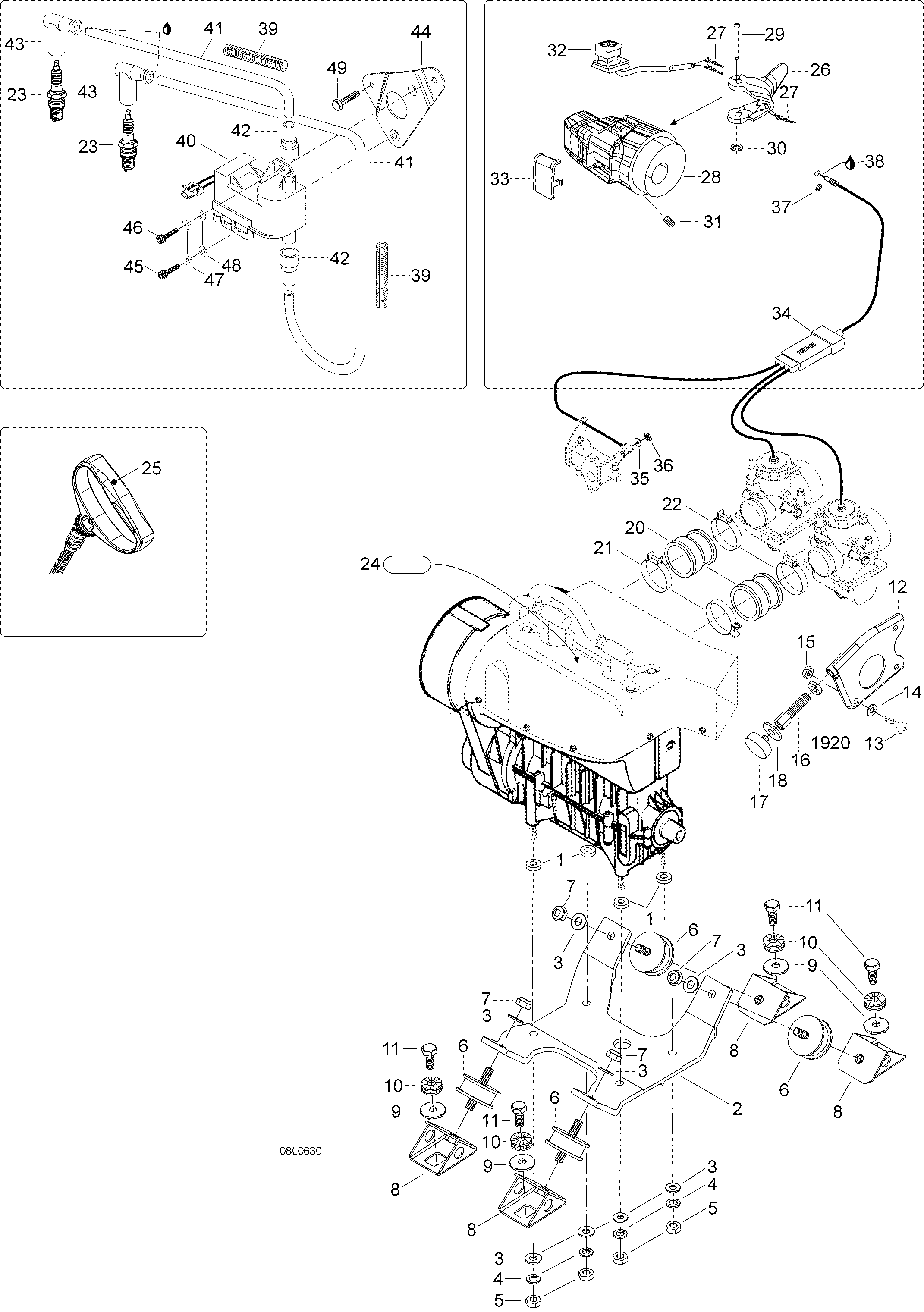

01- Engine And Engine Support для BRP Lynx Safari 400 - 2006
![](/wa-data/public/shop/sheme/bombardier/lynx/66d01e7f-8cd9-44c8-afb0-b82f75ea4030.png)
-
№АртикулНазвание
-
1512051800 WasherWasher
-
2512059397 Engine supportEngine support
-
320005 Washer A10,5Washer A10,5
-
420113 Spring washer M10Spring washer M10
-
533004 Nut M10Nut M10
-
6570127700 RubberRubber
-
733082 Elastic stop nut M10Elastic stop nut M10
-
8512050900 Engine supportEngine support
-
9512056700 Lock washerLock washer
-
1020068 Lock washerLock washer
-
1140040 Hex. screw M10 x 25Hex. screw M10 x 25
-
12512059446 Support plateSupport plate
-
1340344 Socket head screw M8 x 25Socket head screw M8 x 25
-
1420004 Washer A8,4Washer A8,4
-
1533011 Elastic stop nut M8Elastic stop nut M8
-
16512058800 Stopper screwStopper screw
-
17512059056 StopperStopper
-
185147306 WasherWasher
-
1933218 Jam nut M12Jam nut M12
-
20512059478 AdaptorAdaptor
-
21512059395 ClampClamp
-
22512059834 ClampClamp
-
23414961100 Spark plug , BR 9 ESSpark plug , BR 9 ES
-
24516000986 Decal, spark plugDecal, spark plug
-
25572084400 GripGrip
-
26512059624 Throttle handleThrottle handle
-
27605642628 ConnectorConnector
-
28572100900 Throttle handle housingThrottle handle housing
-
29414438700 PinPin
-
30414439000 CirclipCirclip
-
31414440800 Screw M8 x 10Screw M8 x 10
-
32515175410 Switch killSwitch kill
-
33572100901 CoverCover
-
34512059625 Throttle cableThrottle cable
-
35414753300 WasherWasher
-
3631035 CirclipCirclip
-
3731038 CirclipCirclip
-
38293550004 Dielectric-rasva, 150gDielectric-rasva, 150g
-
3928012 TubingTubing
-
40512059518 Electronic box ass'y. Includes 40 to 43Electronic box ass'y. Includes 40 to 43
-
41278001268 Ignition cableIgnition cable
-
42515174900 Protection capProtection cap
-
43278000237 Spark plug connectorSpark plug connector
-
44512059494 BracketBracket
-
4540364 Socket head screw M6 x 16Socket head screw M6 x 16
-
4640052 Socket head screw M6 x 20Socket head screw M6 x 20
-
4720052 Lock washer A6Lock washer A6
-
4820003 Washer A6,4Washer A6,4
-
49209561640 Self tapping screw 6.3 x 16Self tapping screw 6.3 x 16
