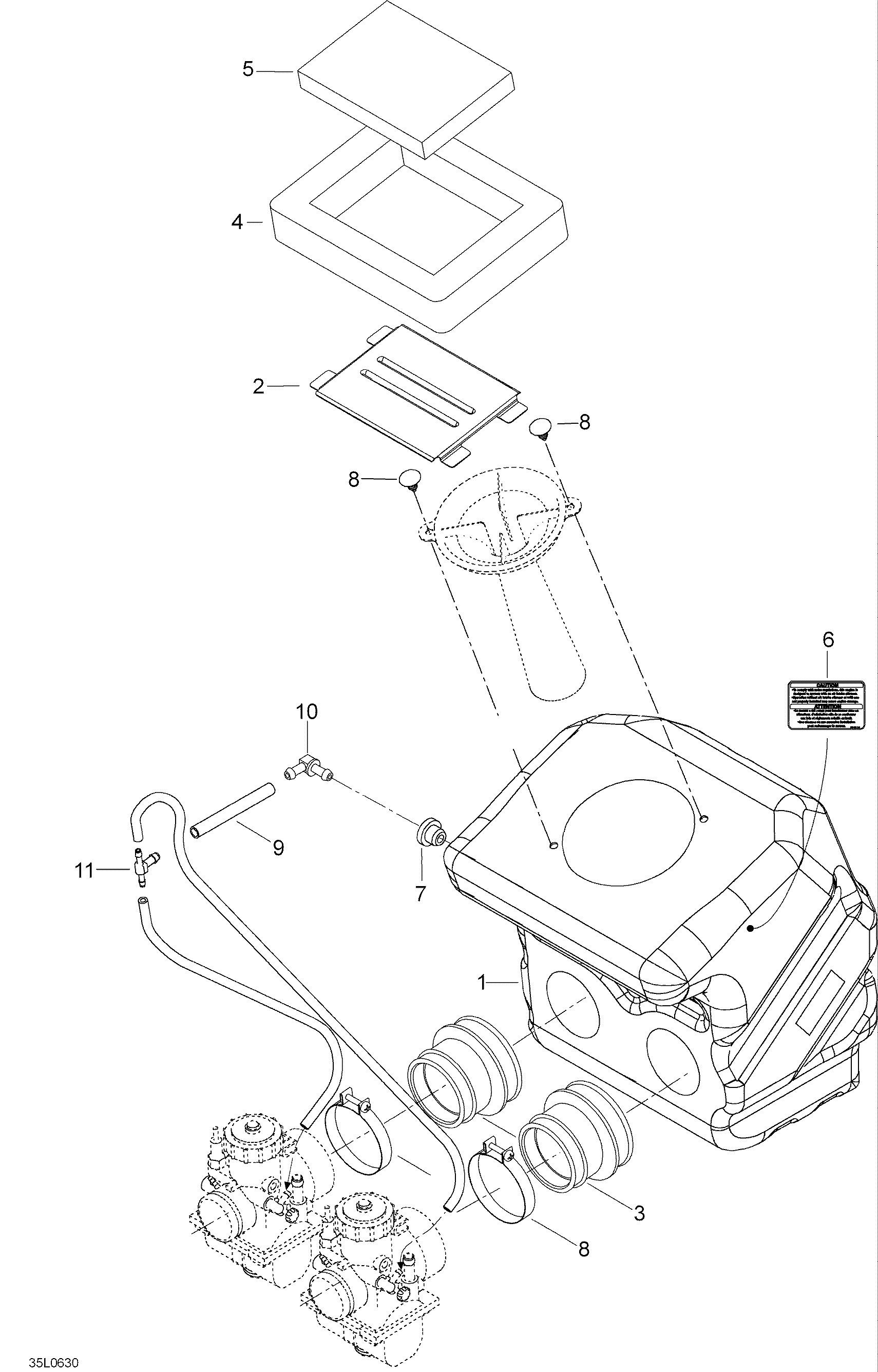

02- Air Silencer для BRP Lynx Safari 400 - 2006
-
№АртикулНазвание
-
1508000316 Air intake ass'y. Include parts 1 to 6Air intake ass'y. Include parts 1 to 6
-
2508000004 Intake grillIntake grill
-
3508000203 Intake adaptorIntake adaptor
-
4508000245 Lower foamLower foam
-
5508000154 Air filterAir filter
-
6516001191 Label cautionLabel caution
-
7513032908 GrommetGrommet
-
8508000344 ClampClamp
-
939038 HoseHose
-
10414580600 GrommetGrommet
-
11572045500 T-fittingT-fitting
