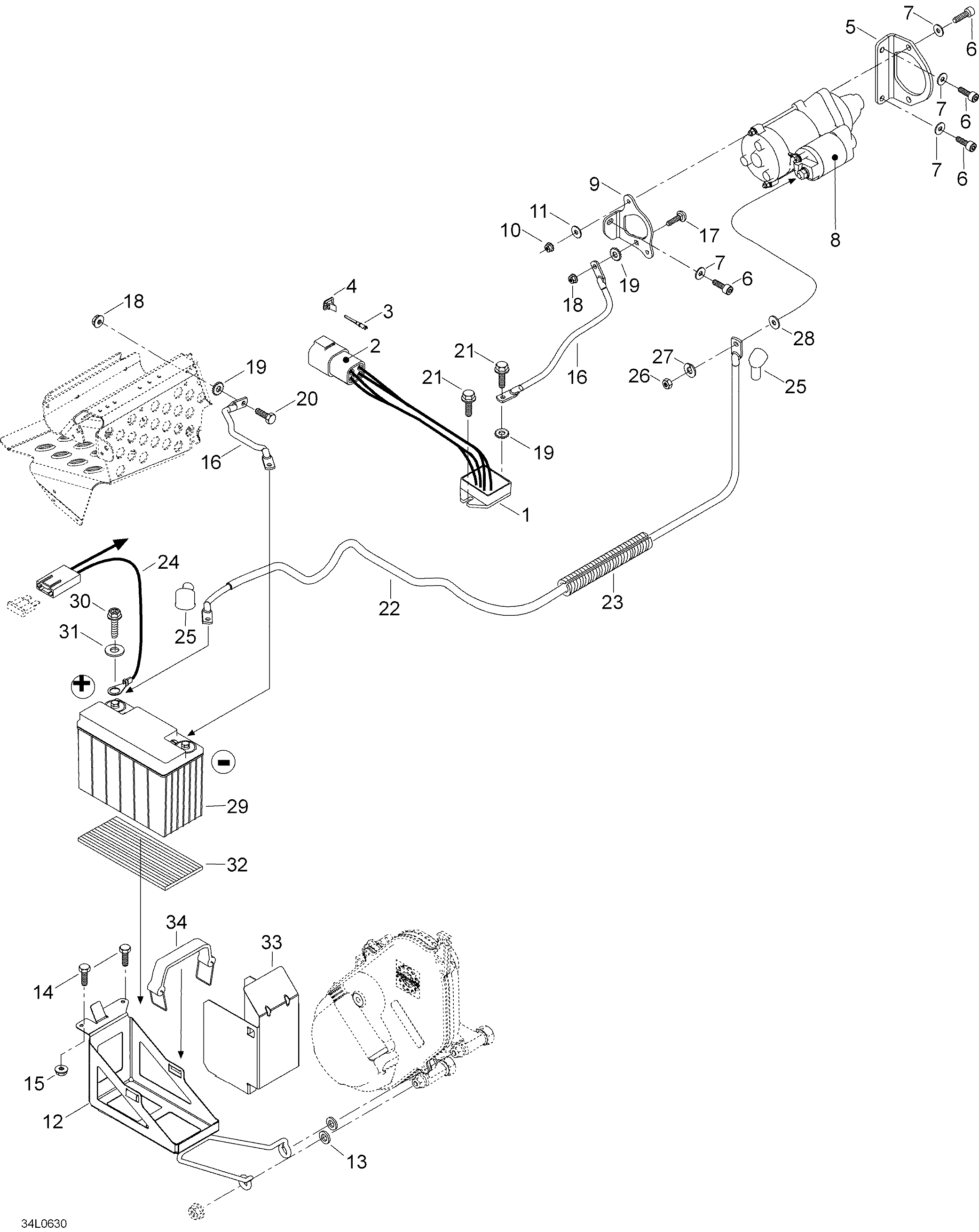

10- Electric Starter для BRP Lynx Safari 400 - 2006
-
№АртикулНазвание
-
1515175656 Voltage regulator. Includes 1 to 4Voltage regulator. Includes 1 to 4
-
2278001477 Connector housingConnector housing
-
3515175568 ConnectorConnector
-
4278001478 WedgeWedge
-
5515175659 Starter bracket, PTO-sideStarter bracket, PTO-side
-
640305 Socket head screw M8 x 20Socket head screw M8 x 20
-
720014 Spring washer A8Spring washer A8
-
8515175141 StarterStarter
-
9515175660 Starter bracket, MAG-sideStarter bracket, MAG-side
-
9515175633 Starter bracket, MAG-sideStarter bracket, MAG-side
-
1033009 Nut elastic M5Nut elastic M5
-
11391301700 WasherWasher
-
12515175848 Battery supportBattery support
-
1320005 Washer A10,5Washer A10,5
-
1440247 Screw M5 x 16Screw M5 x 16
-
1533062 Elastic flanged nut M5Elastic flanged nut M5
-
16515175483 Ground wireGround wire
-
1740866 Locking screw M6 x 20Locking screw M6 x 20
-
1833200 Elastic flanged nut M6, NylockElastic flanged nut M6, Nylock
-
1920017 Serrated lock washer M6Serrated lock washer M6
-
2040029 Hex. screw M6 x 16Hex. screw M6 x 16
-
2140322 Self tapping screw M6 x 16Self tapping screw M6 x 16
-
22515175634 Battery wireBattery wire
-
2328012 TubingTubing
-
245446894 Wire, fuse-batteryWire, fuse-battery
-
25570151000 Cap protectionCap protection
-
2633006 Nut M8Nut M8
-
2720014 Spring washer A8Spring washer A8
-
2820004 Washer A8,4Washer A8,4
-
29515175642 Battery. Includes 29 to 31Battery. Includes 29 to 31
-
30207161644 Screw M6 x 16Screw M6 x 16
-
31391302100 WasherWasher
-
325347314 Rubber blanketRubber blanket
-
33515175643 ProtectorProtector
-
34515175475 Battery strapBattery strap
