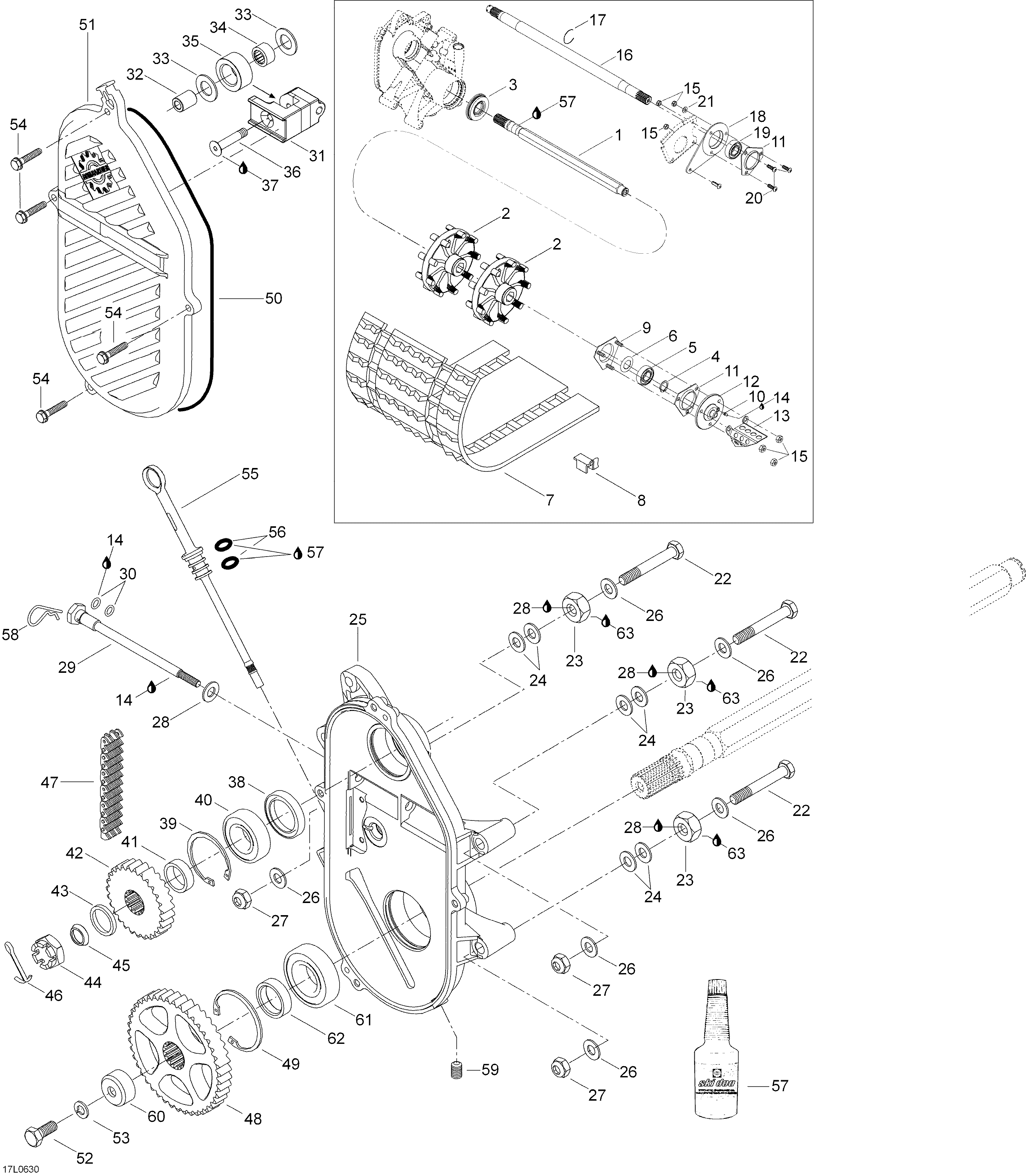

05- Drive System для BRP Lynx Safari 400 - 2006
-
№АртикулНазвание
-
1605253641 Drive axleDrive axle
-
2414663900 Sprocket 9 teethSprocket 9 teeth
-
3504151918 Oil sealOil seal
-
431001 CirclipCirclip
-
5504152009 Ball bearingBall bearing
-
6501017400 ProtectorProtector
-
7504152489 Track ass'y(22,2). Includes 7 to 8Track ass'y(22,2). Includes 7 to 8
-
8504152410 Guide cleatGuide cleat
-
9504151860 Bearing housingBearing housing
-
1034011 Grease fittingGrease fitting
-
11501025000 FlangeFlange
-
12504151836 FlangeFlange
-
13517290100 Cable protectorCable protector
-
14293550033 Synthetic greaseSynthetic grease
-
1533011 Elastic stop nut M8Elastic stop nut M8
-
16504151858 CountershaftCountershaft
-
17371910000 CirclipCirclip
-
18080044200 Casting SpacerCasting Spacer
-
19504152008 Ball bearingBall bearing
-
2040344 Socket head screw M8 x 25Socket head screw M8 x 25
-
2120004 Washer A8,4Washer A8,4
-
2240190 Hex, screw M10 x 80Hex, screw M10 x 80
-
23504083800 SpacerSpacer
-
24504073700 ShimShim
-
25504152064 ChaincaseChaincase
-
2620005 Washer A10,5Washer A10,5
-
2733082 Elastic stop nut M10Elastic stop nut M10
-
28293800060 Loctite 243, 10mlLoctite 243, 10ml
-
29732601314 Screw adjustingScrew adjusting
-
30414484400 O-ringO-ring
-
31504081000 Chain tensionerChain tensioner
-
32504080200 SleeveSleeve
-
33504080300 WasherWasher
-
34405403000 Needle bearingNeedle bearing
-
35414531300 RollerRoller
-
36732601144 ScrewScrew
-
37293800005 Loctite 271, 10mlLoctite 271, 10ml
-
38504151927 SealSeal
-
39371901700 CirclipCirclip
-
40504152006 Ball bearingBall bearing
-
41504147200 ShimShim
-
42504071800 Sprocket Z17Sprocket Z17
-
43504152049 SpacerSpacer
-
44232210414 Nut M16Nut M16
-
45417000900 WasherWasher
-
4641003 PinPin
-
47504151883 Chain 72/11Chain 72/11
-
48504148600 Sprocket Z43Sprocket Z43
-
49415064300 CirclipCirclip
-
50415046400 SealSeal
-
51504152027 CoverCover
-
5240040 Hex. screw M10 x 25Hex. screw M10 x 25
-
5320068 Lock washerLock washer
-
5440340 Socket head screw M6 x 30Socket head screw M6 x 30
-
55504151703 Filler cap ass'yFiller cap ass'y
-
56414969400 O-ringO-ring
-
57413803300 Synt. chaincase oil (12 x 355ml)Synt. chaincase oil (12 x 355ml)
-
58414575600 PinPin
-
59504151921 PlugPlug
-
60501022400 SleeveSleeve
-
61504152005 Ball bearingBall bearing
-
62501021800 SleeveSleeve
-
63293800070 Loctite 767, 8 ozLoctite 767, 8 oz
