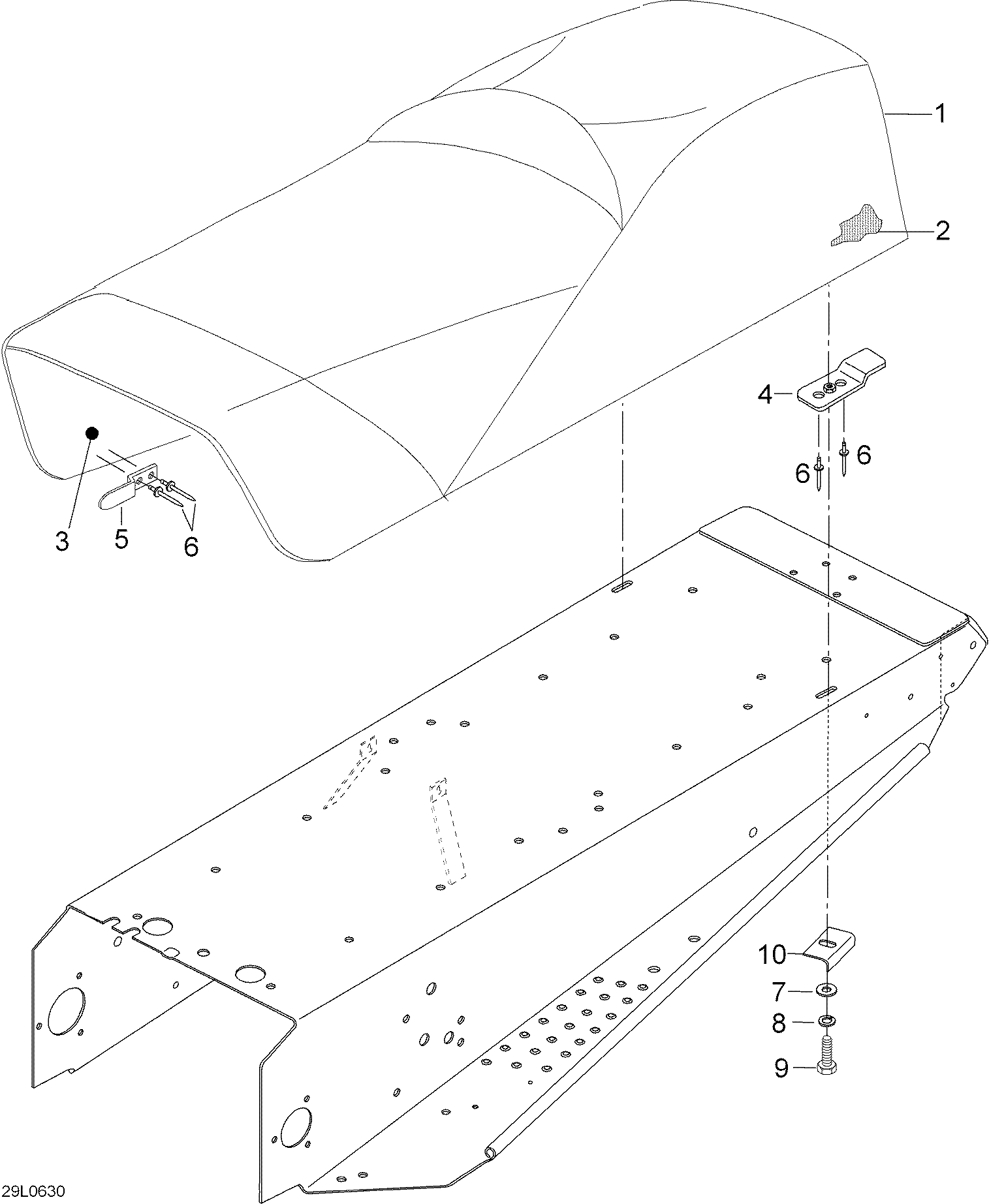

09- Seat для BRP Lynx Safari 400 - 2006
-
№АртикулНазвание
-
1605153088 Seat coverSeat cover
-
25146604 Seat foamSeat foam
-
35146603 Seat bottomSeat bottom
-
45447928 Fastening plate, rearFastening plate, rear
-
55447909 Fastening plate, frontFastening plate, front
-
720010 Washer A8,4Washer A8,4
-
820014 Lock washer A8Lock washer A8
-
940015 Hex. screw M8 x 30Hex. screw M8 x 30
-
105447994 Support plateSupport plate
