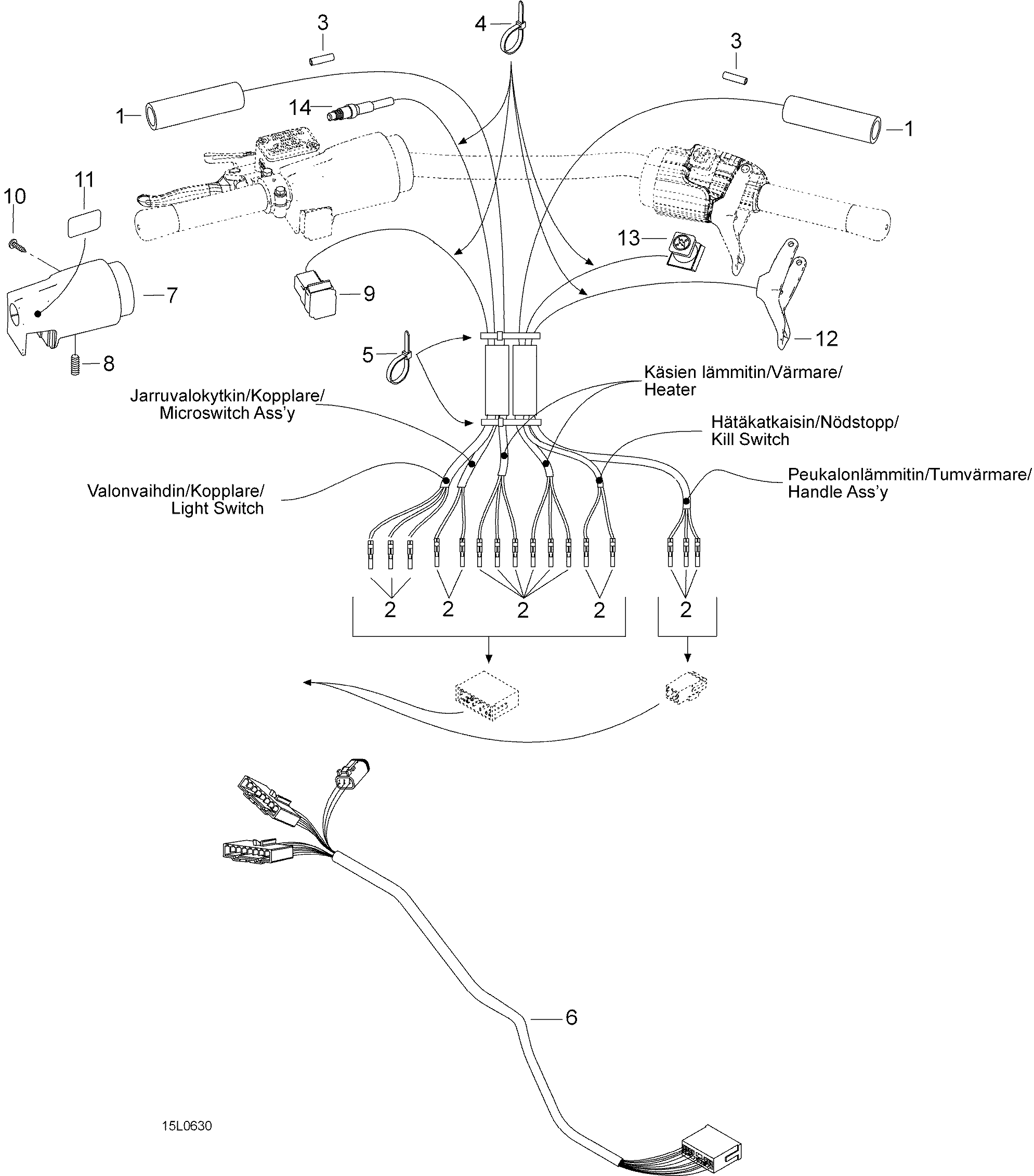

10- Steering Harness для BRP Lynx Safari 400 - 2006
-
№АртикулНазвание
-
1515175657 HeaterHeater
-
242603 ConnectorConnector
-
339023 TubingTubing
-
427010 Tie-rap 98mmTie-rap 98mm
-
527100 Tie-rap 363mmTie-rap 363mm
-
65147106 Wiring harnessWiring harness
-
7515175696 Brake housingBrake housing
-
8414440800 Screw M8 x 10Screw M8 x 10
-
9515175390 Light switchLight switch
-
10250000022 ScrewScrew
-
11415025500 DecalDecal
-
12512059624 Throttle handleThrottle handle
-
13515175410 Switch killSwitch kill
-
14507032366 Microswitch ass'yMicroswitch ass'y
