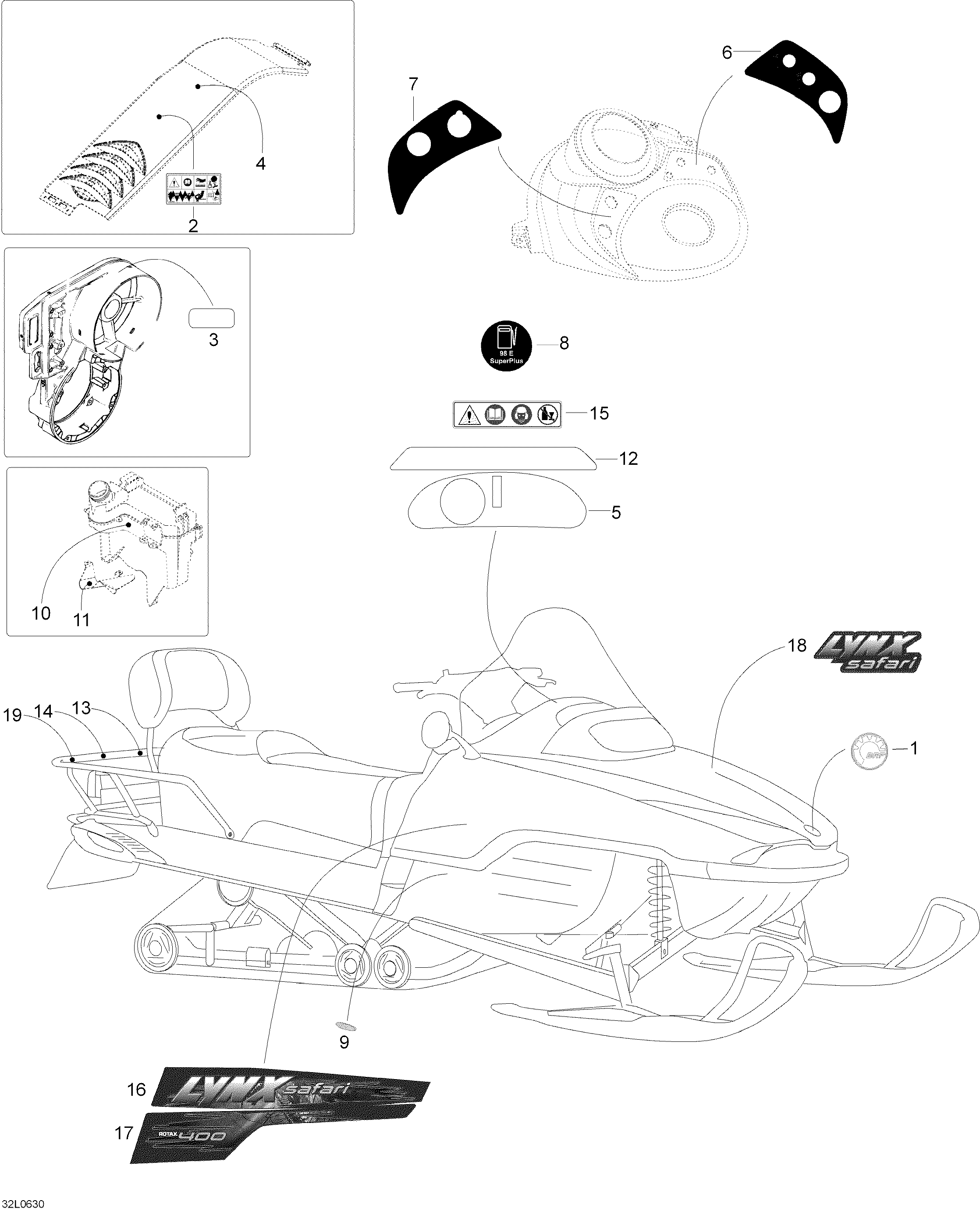

09- Decals для BRP Lynx Safari 400 - 2006
-
№АртикулНазвание
-
1219902468 Logo-BRPLogo-BRP
-
25447014 Pulley decalPulley decal
-
35447016 Instruction decalInstruction decal
-
45447012 Oil check decalOil check decal
-
55347662 Control panel decalControl panel decal
-
65447918 R.H. console decalR.H. console decal
-
75447663 L.H. Console decalL.H. Console decal
-
85447020 Fuel labelFuel label
-
9415064400 R.H. ReflectorR.H. Reflector
-
9415064401 L.H. ReflectorL.H. Reflector
-
10605449628 Label, oil levelLabel, oil level
-
11605449565 Instruction decalInstruction decal
-
125346800 Instruction decalInstruction decal
-
135447931 Instruction decalInstruction decal
-
14605448801 Warning labelWarning label
-
155447124 Warning labelWarning label
-
16605352978 R.H. Hood decal, upperR.H. Hood decal, upper
-
16605352980 L.H. Hood decal, upperL.H. Hood decal, upper
-
17605352979 R.H. lower decal, hoodR.H. lower decal, hood
-
17605352981 L.H. lower decal, hoodL.H. lower decal, hood
-
18605352962 Hood decal, frontHood decal, front
-
19605448799 Instruction decalInstruction decal
