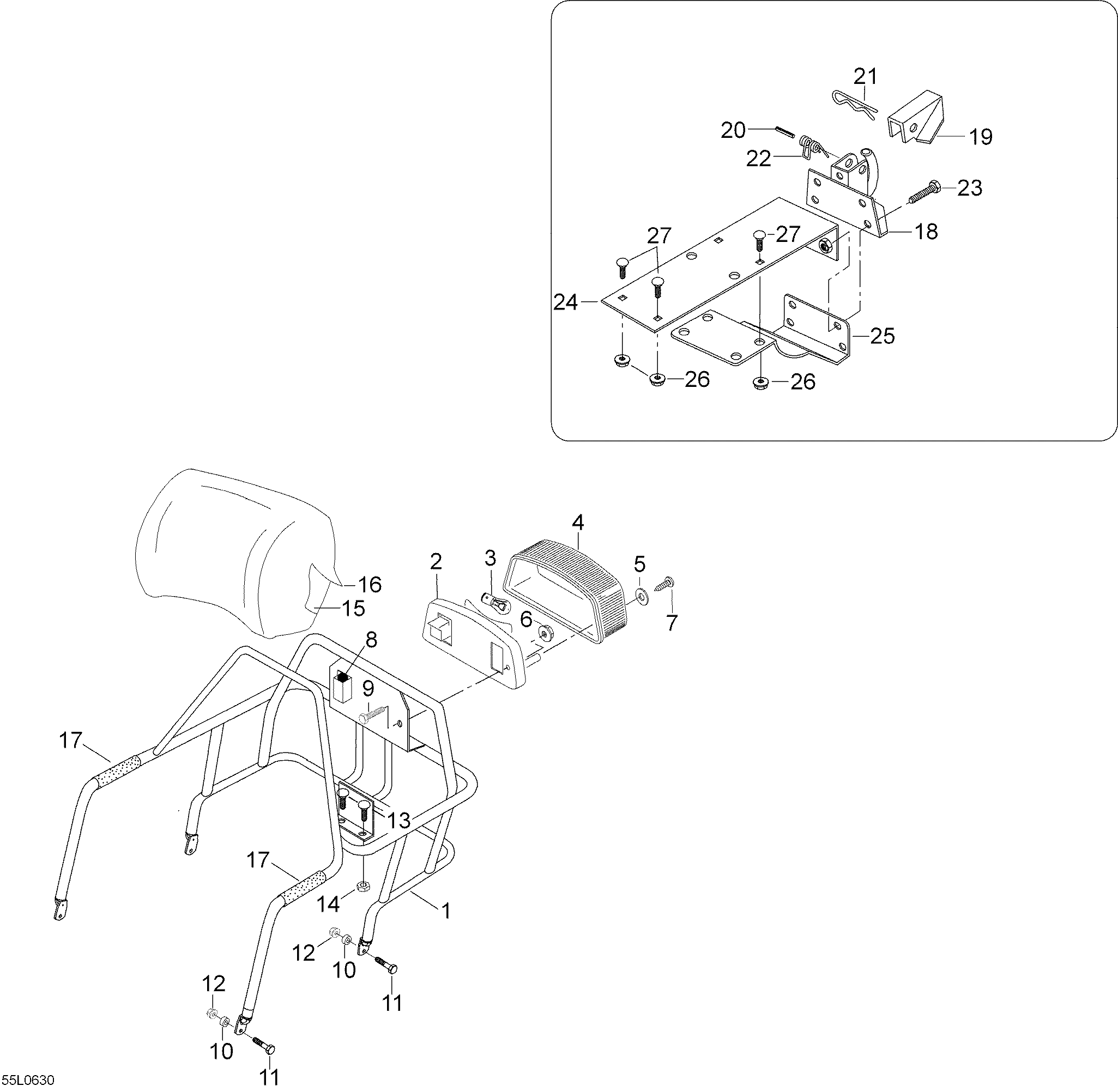

09- Rack для BRP Lynx Safari 400 - 2006
-
№АртикулНазвание
-
1605252065 Tail rackTail rack
-
-5341214 Taillamp assy. Includes 1 to 6Taillamp assy. Includes 1 to 6
-
2510004061 Taillamp housingTaillamp housing
-
3410504000 BulbBulb
-
4414513700 LensLens
-
5414516400 WasherWasher
-
633200 Elastic flanged nut M6Elastic flanged nut M6
-
7414516300 ScrewScrew
-
85345713 CoverCover
-
940032 Hex. screw M6 x 30Hex. screw M6 x 30
-
10548491 SleeveSleeve
-
1140387 Screw M8 x 30, WulockScrew M8 x 30, Wulock
-
1233201 Elastic flanged nut M8Elastic flanged nut M8
-
1340866 Locking screw M6 x 20Locking screw M6 x 20
-
1433200 Elastic flanged nut M6Elastic flanged nut M6
-
15539399 FoamFoam
-
165340917 CoverCover
-
17415050300 GripGrip
-
-5344156 Hitch Assy. Includes 18 to 27Hitch Assy. Includes 18 to 27
-
185344208 Hitch WeldHitch Weld
-
195440767 LockLock
-
2041012 Spring PinSpring Pin
-
2141029 Needle PinNeedle Pin
-
22545693 SpringSpring
-
2340336 Screw M8 x 20Screw M8 x 20
-
24605450084 BracketBracket
-
25605350085 ReinforcementReinforcement
-
2633200 Elastic flanged nut M6Elastic flanged nut M6
-
2740866 Locking screw M6 x 20Locking screw M6 x 20
