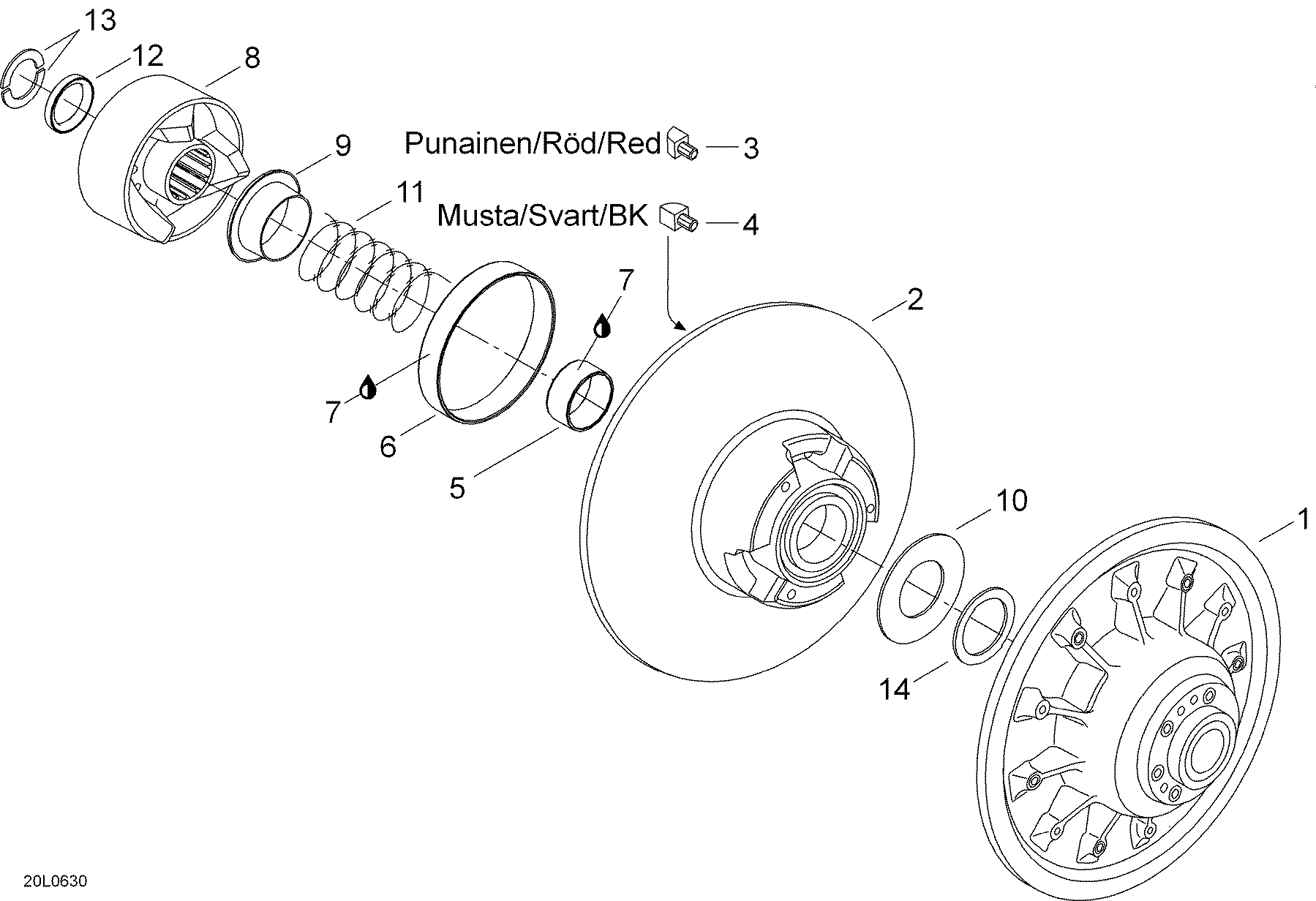

05- Driven pulley для BRP Lynx Safari 400 - 2006
-
№АртикулНазвание
-
1417126526 Fixed flange assyFixed flange assy
-
2417126403 Sliding pulley. Includes 2 to 7Sliding pulley. Includes 2 to 7
-
3417126373 Front cam shoe slide, RDFront cam shoe slide, RD
-
4417126374 Front cam shoe slide, BKFront cam shoe slide, BK
-
5415092600 BushingBushing
-
6415092700 BushingBushing
-
7413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
8417126574 Cam 44Cam 44
-
9415006000 GuardGuard
-
10504099600 Stopper washerStopper washer
-
11415092800 Spring, yellowSpring, yellow
-
12417126375 SpacerSpacer
-
13371911000 Half keyHalf key
-
14504112300 ShimShim
