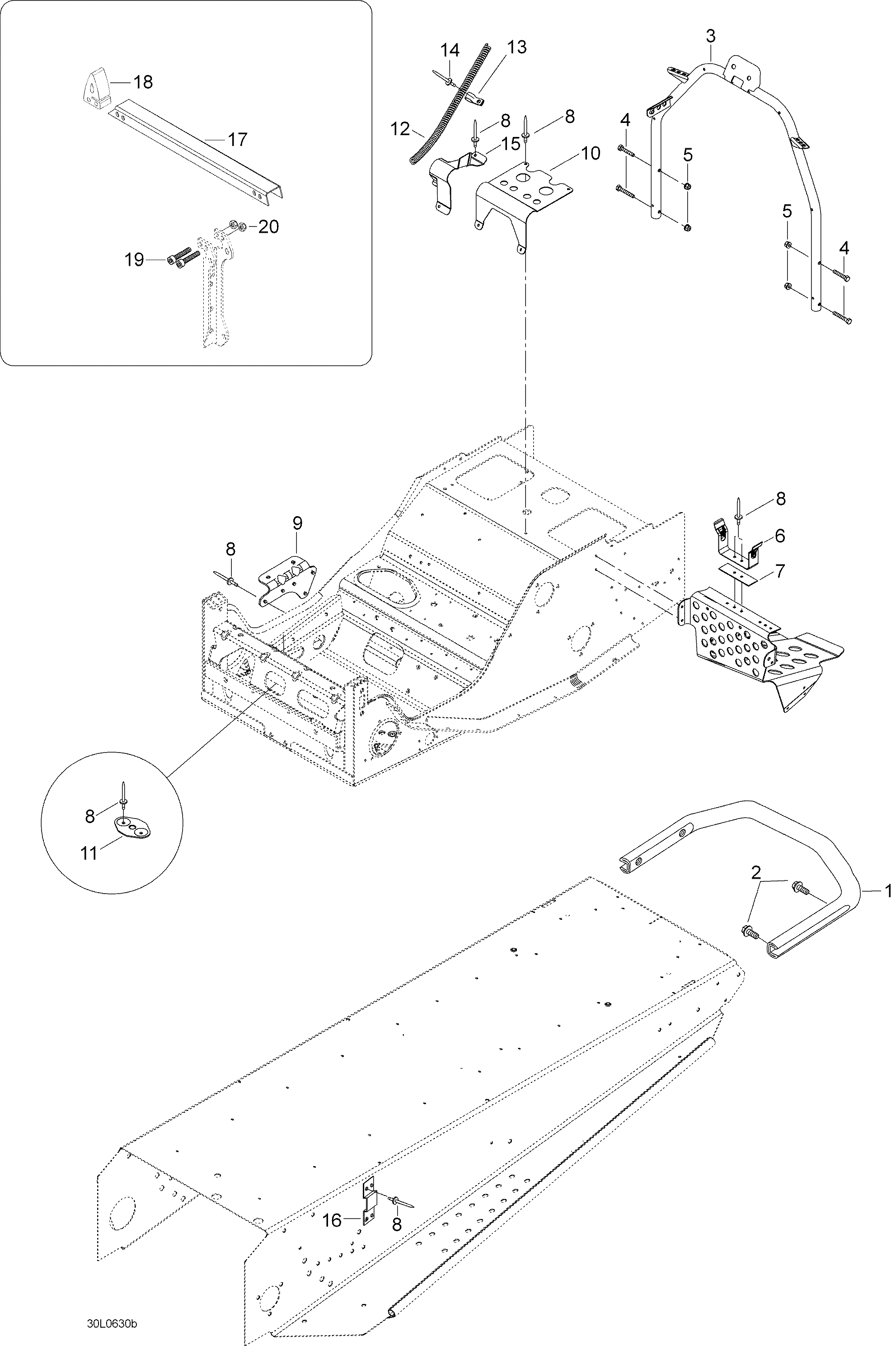

09- Frame для BRP Lynx Safari 400 - 2006
-
№АртикулНазвание
-
1517243800 Rear bumperRear bumper
-
240336 Hex. screw M8 x 20Hex. screw M8 x 20
-
35247856 Handle steering supp.Handle steering supp.
-
440002 Hex. screw M6 x 40Hex. screw M6 x 40
-
533200 Elastic flanged nut M6Elastic flanged nut M6
-
6518202100 Pulley Guard bracketPulley Guard bracket
-
7518207500 ReinforcementReinforcement
-
836489 RivetRivet
-
9518322635 Muffler supportMuffler support
-
10518310400 Air intake supportAir intake support
-
11518201307 BracketBracket
-
12518321569 Rope guideRope guide
-
1327092 ClipClip
-
1436036 RivetRivet
-
15518322699 BracketBracket
-
165447908 PlatePlate
-
175347225 BracketBracket
-
185348099 Rubber damperRubber damper
-
1940345 Socket head screw M6 x 40Socket head screw M6 x 40
-
2033010 Elastic stop nut M6Elastic stop nut M6
