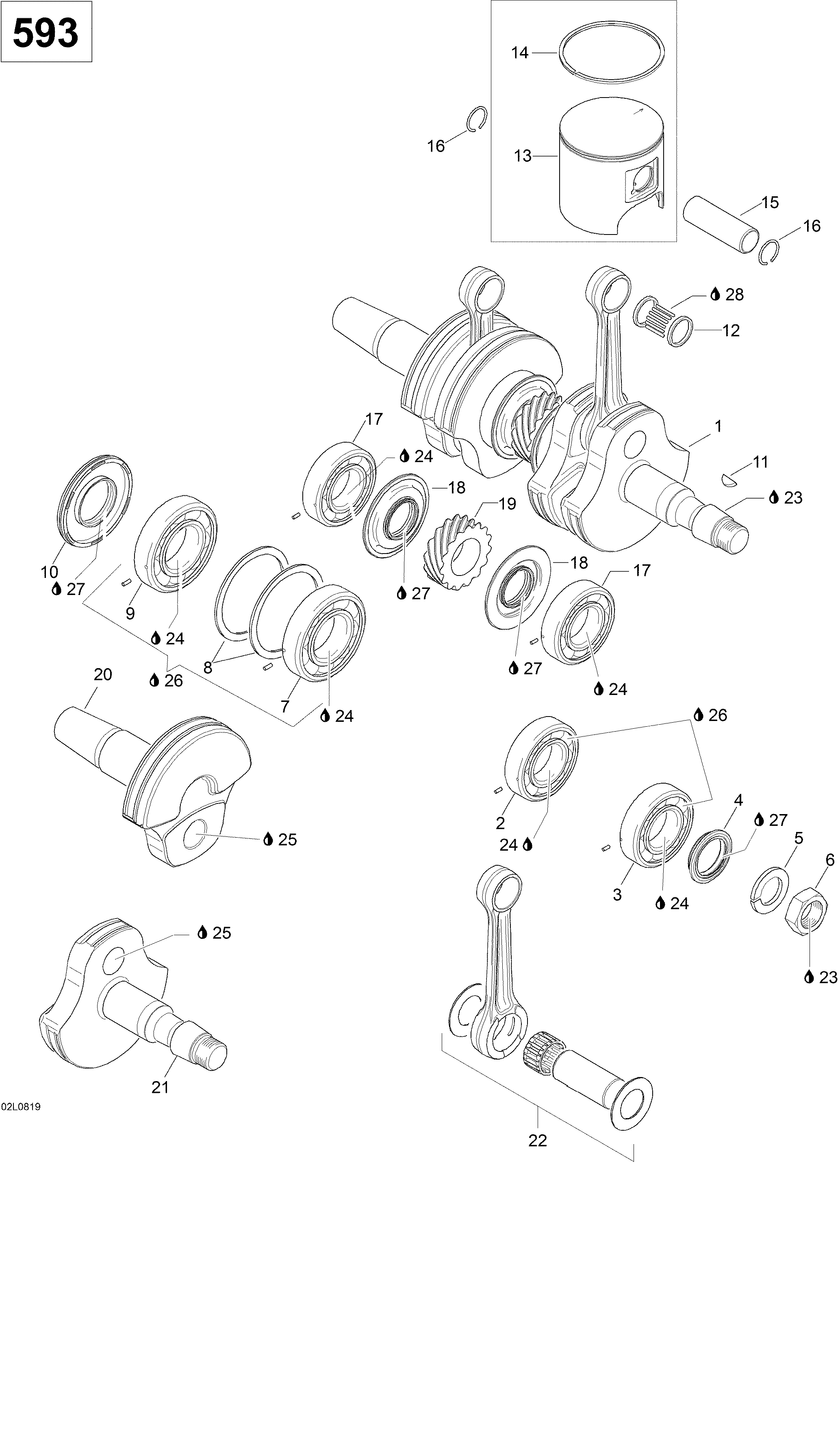

01- Crankshaft 593 для BRP Lynx YETI 600 - 2008

№

Артикул

Название
1

420890970 Crankshaft ass'y. Includes 1 to 11

Crankshaft ass'y. Includes 1 to 11

0 ₽
2

420832596 Ball bearing 6206

Ball bearing 6206

23 460 ₽
3

420832590 Ball bearing 6206

Ball bearing 6206

11 730 ₽
4

420931792 Oil seal

Oil seal

0 ₽
5

420945759 Lock washer 22 mm

Lock washer 22 mm

660 ₽
6

420842230 Hex. nut M22

Hex. nut M22

0 ₽
7

420832638 Ball bearing 6207

Ball bearing 6207

0 ₽
8

420927710 Retaining disk

Retaining disk

2 610 ₽
9

420832575 Ball bearing 6207

Ball bearing 6207

8 480 ₽
10

420831950 Oil seal

Oil seal

0 ₽
11

420246015 Woodruff-key

Woodruff-key

1 040 ₽
12

420832428 Needle bearing

Needle bearing

0 ₽
13

420889170 Piston ass'y (1 Ring 75.88 mm). Includes 13 to 14

Piston ass'y (1 Ring 75.88 mm). Includes 13 to 14

0 ₽
13

420889171 Oversize piston ass'y (1 Ring 76.13 mm). Includes 13 to 14

Oversize piston ass'y (1 Ring 76.13 mm). Includes 13 to 14

0 ₽
14

420815155 Semi-trapez ring 76 mm

Semi-trapez ring 76 mm

18 620 ₽
14

420815156 Oversize semi-trapez ring 76.25

Oversize semi-trapez ring 76.25

18 620 ₽
15

420916411 Piston pin

Piston pin

0 ₽
16

420845106 Piston circlip

Piston circlip

2 410 ₽
17

420832590 Ball bearing 6206

Ball bearing 6206

11 730 ₽
18

420931940 Oil seal

Oil seal

10 710 ₽
19

420834350 Central gear 15 Teeth

Central gear 15 Teeth

8 200 ₽
22

420888753 Rod repair kit (MAG side)

Rod repair kit (MAG side)

0 ₽
22

420888754 Rod repair kit (PTO side)

Rod repair kit (PTO side)

0 ₽
23

293800060 Loctite 243, 10 ml

Loctite 243, 10 ml

2 760 ₽
24

293800070 Loctite 767, Antiseize lubricant, 454 g

Loctite 767, Antiseize lubricant, 454 g

3 130 ₽
25

413711400 Loctite 648, 10 ml

Loctite 648, 10 ml

3 420 ₽
26

413802900 Klueber Isoflex grease, 400 g

Klueber Isoflex grease, 400 g

1 050 ₽
27

420899271 Grease Petamo Ghy 133N, 400 g

Grease Petamo Ghy 133N, 400 g

8 190 ₽
28

413802900 Injection oil (12 x 1 Liter)

Injection oil (12 x 1 Liter)

1 050 ₽
