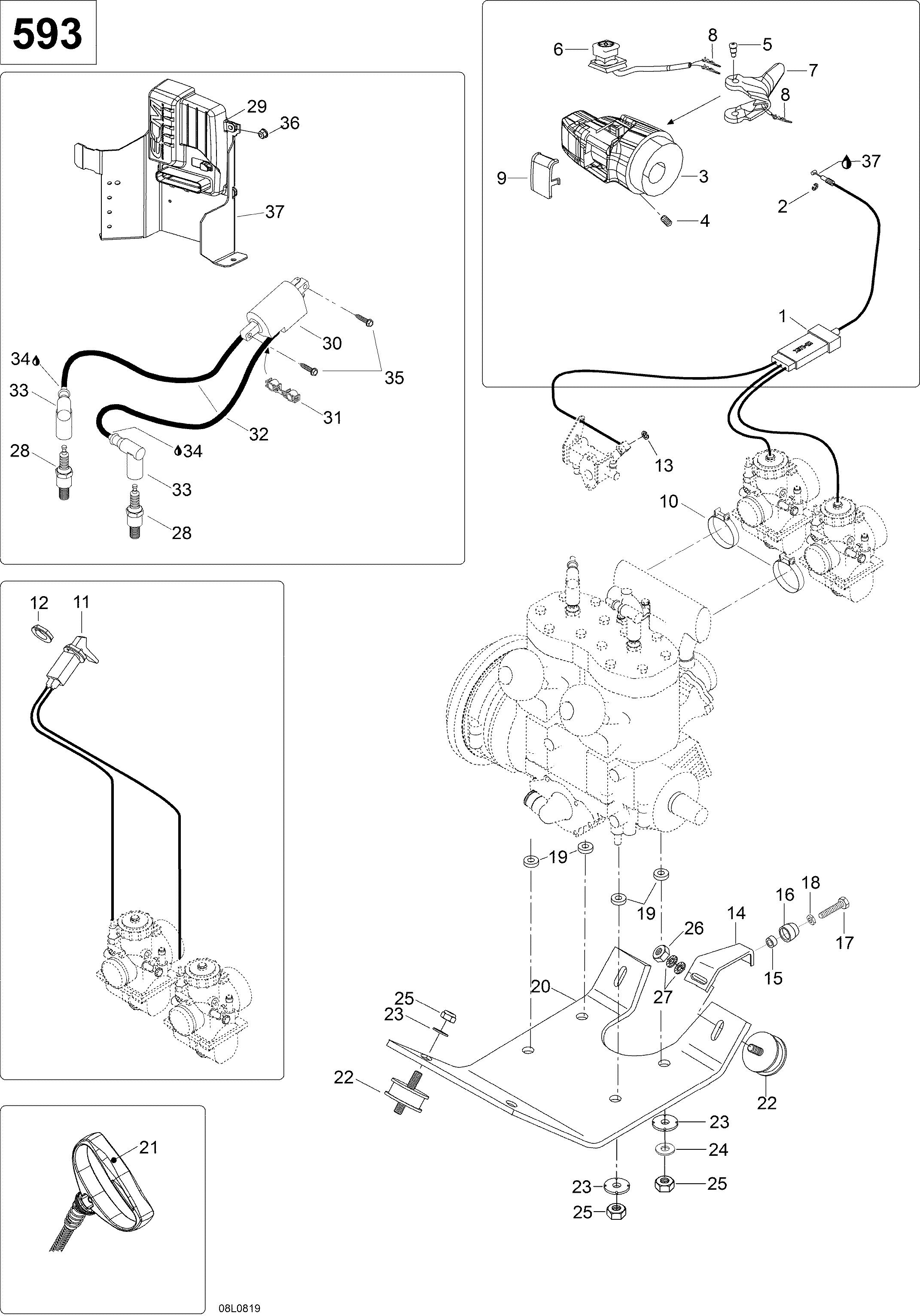

01- Engine And Engine Support 593 для BRP Lynx YETI 600 - 2008
-
№АртикулНазвание
-
15246328 Throttle cableThrottle cable
-
231038 Circlip. Includes 2 to 4Circlip. Includes 2 to 4
-
3605355737 Throttle handle housingThrottle handle housing
-
4414440800 ScrewScrew
-
5732601143 Screw. Includes 5 to 6Screw. Includes 5 to 6
-
6515175410 Emergency switchEmergency switch
-
7512059348 Heat throttle handleHeat throttle handle
-
842603 ConnectorConnector
-
9572100901 CoverCover
-
10414532700 ClampClamp
-
11535482 ChokeChoke
-
12512059364 Plastic nutPlastic nut
-
1331035 CirclipCirclip
-
14605352447 Support. Includes 14 to 15Support. Includes 14 to 15
-
152846014 Rubber sleeveRubber sleeve
-
16605449240 SleeveSleeve
-
1740121 Hex. screw M8 x 40Hex. screw M8 x 40
-
1833003 Nut M8Nut M8
-
195446347 SleeveSleeve
-
20605248305 Engine mount. plateEngine mount. plate
-
21572084400 GripGrip
-
22570127700 Rubber mount.Rubber mount.
-
23512056700 Lock washerLock washer
-
24512056700 Washer lockWasher lock
-
2533012 Elastic stop nut M10Elastic stop nut M10
-
2633004 Nut M10Nut M10
-
2720068 Lock washer D10Lock washer D10
-
28512059552 Spark plug BR9 ECS, NGKSpark plug BR9 ECS, NGK
-
29605155103 Calibration moduleCalibration module
-
30512059968 Ignition coil ass'yIgnition coil ass'y
-
31410914600 Plastic clipPlastic clip
-
32512059695 Spark plug wire 300MMSpark plug wire 300MM
-
32512059696 Spark plug wire 375 mmSpark plug wire 375 mm
-
33278000237 Spark plug protectorSpark plug protector
-
34293550004 Dielectric greaseDielectric grease
-
3540031 Screw M6 x 25Screw M6 x 25
-
3633200 NutNut
-
37605353805 Fastening plate ECUFastening plate ECU
