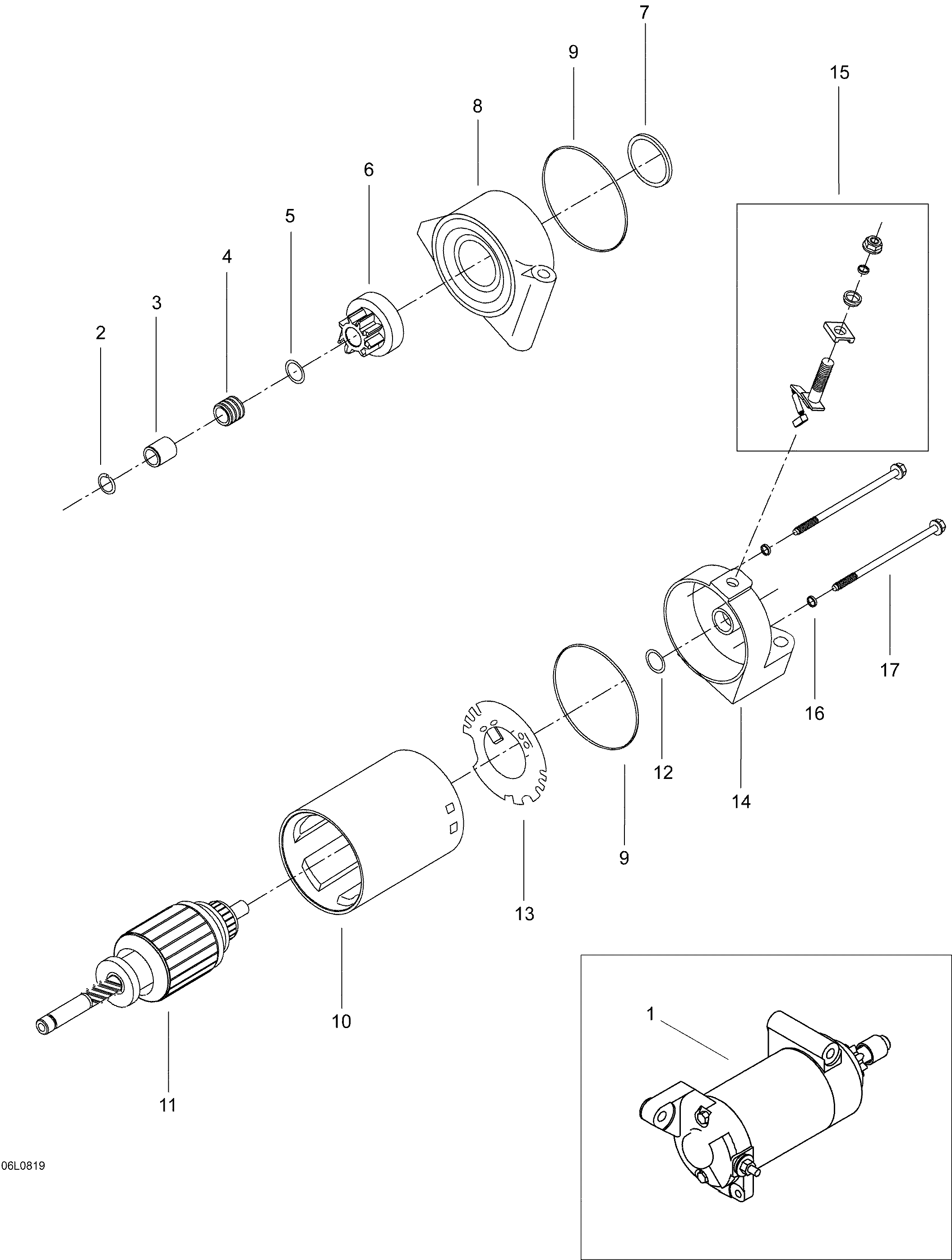

04- Electric Starter для BRP Lynx YETI 600 - 2008
-
№АртикулНазвание
-
1515176133 Electric start. Includes 1 to 17Electric start. Includes 1 to 17
-
2410207700 CirclipCirclip
-
3515175928 Pinion nutPinion nut
-
4410922957 SpringSpring
-
5278001105 WasherWasher
-
6410922958 ClutchClutch
-
7278000696 O-ringO-ring
-
9278000695 O-ringO-ring
-
12410204500 WasherWasher
-
13515175786 Holder assyHolder assy
-
14410922960 Housing assyHousing assy
-
15410212100 Brush kitBrush kit
-
16278000060 O-ringO-ring
-
17410922961 ScrewScrew
