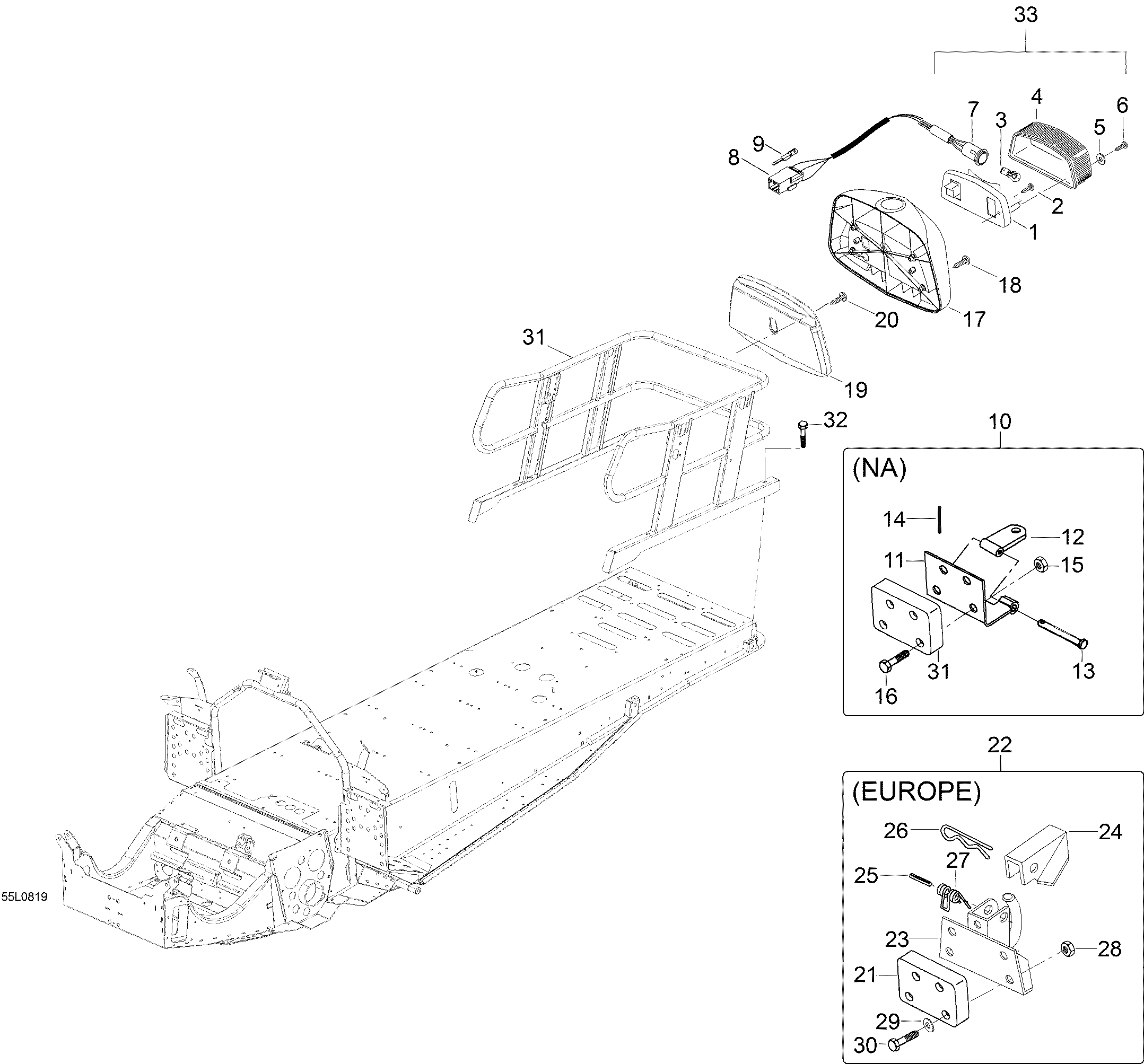

09- Luggage Rack для BRP Lynx YETI 600 - 2008
-
№АртикулНазвание
-
1515175397 Tail lamp baseTail lamp base
-
240207 Screw 4.8 x 45Screw 4.8 x 45
-
3410504100 BulpBulp
-
4414513700 LensLens
-
5414516400 WasherWasher
-
6414516300 ScrewScrew
-
7515175852 Wire ass'yWire ass'y
-
942614 Female connectorFemale connector
-
105344152 Hitch ass'yHitch ass'y
-
115344151 BracketBracket
-
12548745 Hitch plateHitch plate
-
13560309200 PinPin
-
1441031 Hair pinHair pin
-
1533011 Elastic stop nut M8Elastic stop nut M8
-
1640009 Hex. screw M8 x 45Hex. screw M8 x 45
-
17605251392 Mold tail lampMold tail lamp
-
1840206 Screw 4.8 x 25Screw 4.8 x 25
-
19605251963 BaseBase
-
2040322 Self tapping screw M6 x 16Self tapping screw M6 x 16
-
21605351510 ExtensionExtension
-
225344156 Hitch ass'yHitch ass'y
-
235344208 HitchHitch
-
245440767 LockLock
-
2541012 PinPin
-
2641029 Hair pinHair pin
-
27545693 SpringSpring
-
2833011 Elastic stop nut M8Elastic stop nut M8
-
2920004 Washer A8,4Washer A8,4
-
3040009 Hex. screw M8 x 50Hex. screw M8 x 50
-
31605155241 RackRack
-
3240316 Screw M 8x20Screw M 8x20
-
33605352543 Tail lamp assyTail lamp assy
