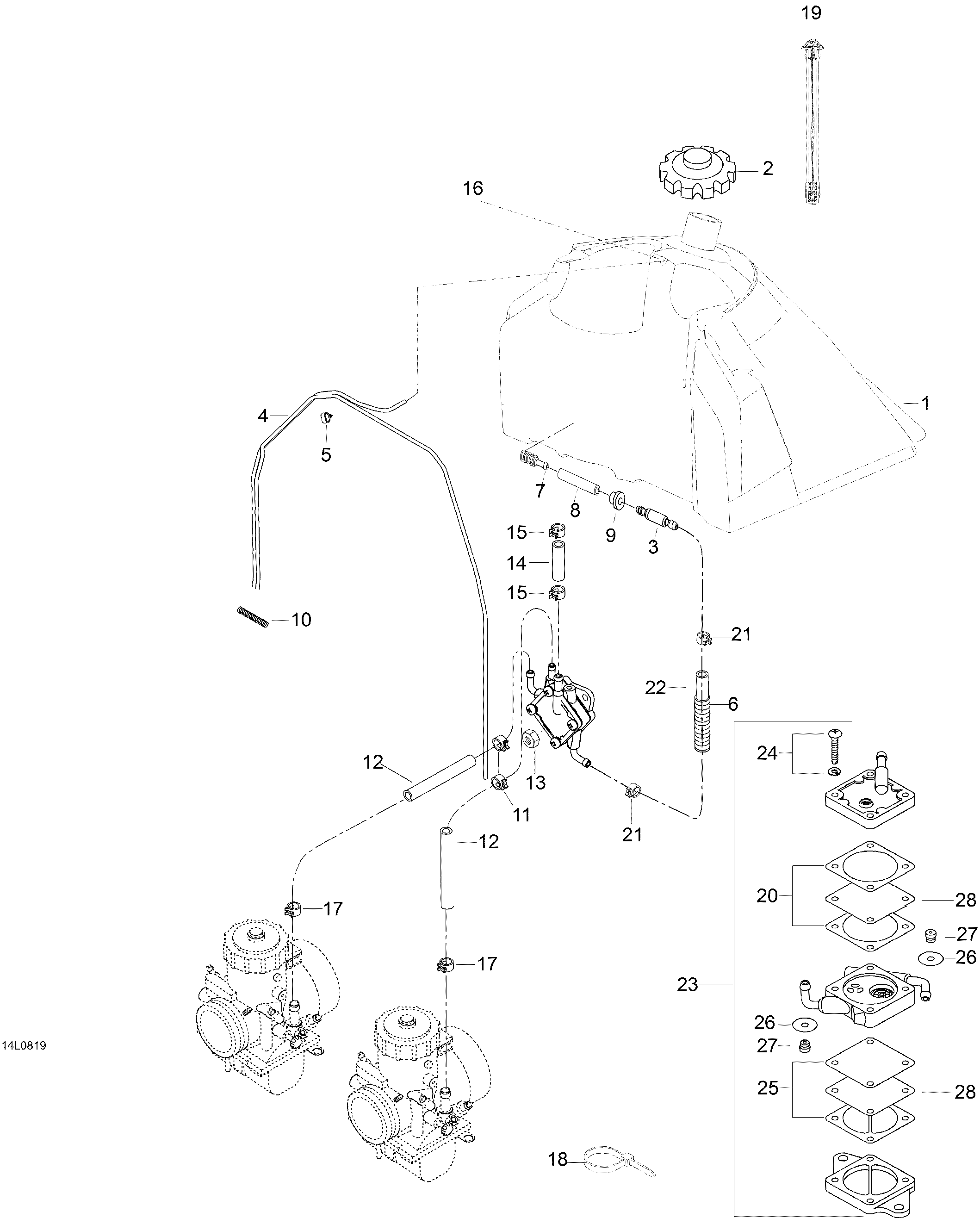

02- Fuel System для BRP Lynx YETI 600 - 2008
-
№АртикулНазвание
-
1605154804 Fuel tankFuel tank
-
2580259400 CapCap
-
3414872700 Connector maleConnector male
-
439035 HoseHose
-
5513032923 Clamp. NTC_552SKClamp. NTC_552SK
-
627127 Tubing. NTC_552SKTubing. NTC_552SK
-
7414872100 FilterFilter
-
839048 HouseHouse
-
9513032908 GrommetGrommet
-
1025003 SpringSpring
-
11414420700 ClampClamp
-
1239001 Fuel hoseFuel hose
-
1333010 NutNut
-
14605355647 Fuel hoseFuel hose
-
15513032979 ClampClamp
-
16404127600 NippelNippel
-
17414415200 Clamp. NTC_593SSClamp. NTC_593SS
-
1827026 Tie rapTie rap
-
19605351982 Fuel gaugeFuel gauge
-
20404902400 GasketGasket
-
21414655700 Clamp. NTC_552SKClamp. NTC_552SK
-
22605355604 Fuel hoseFuel hose
-
2319113 Fuel pump ass'yFuel pump ass'y
-
25404902300 GasketGasket
-
26404902100 GrommetGrommet
-
27275500042 ValveValve
-
28404902200 DiaphragmDiaphragm
