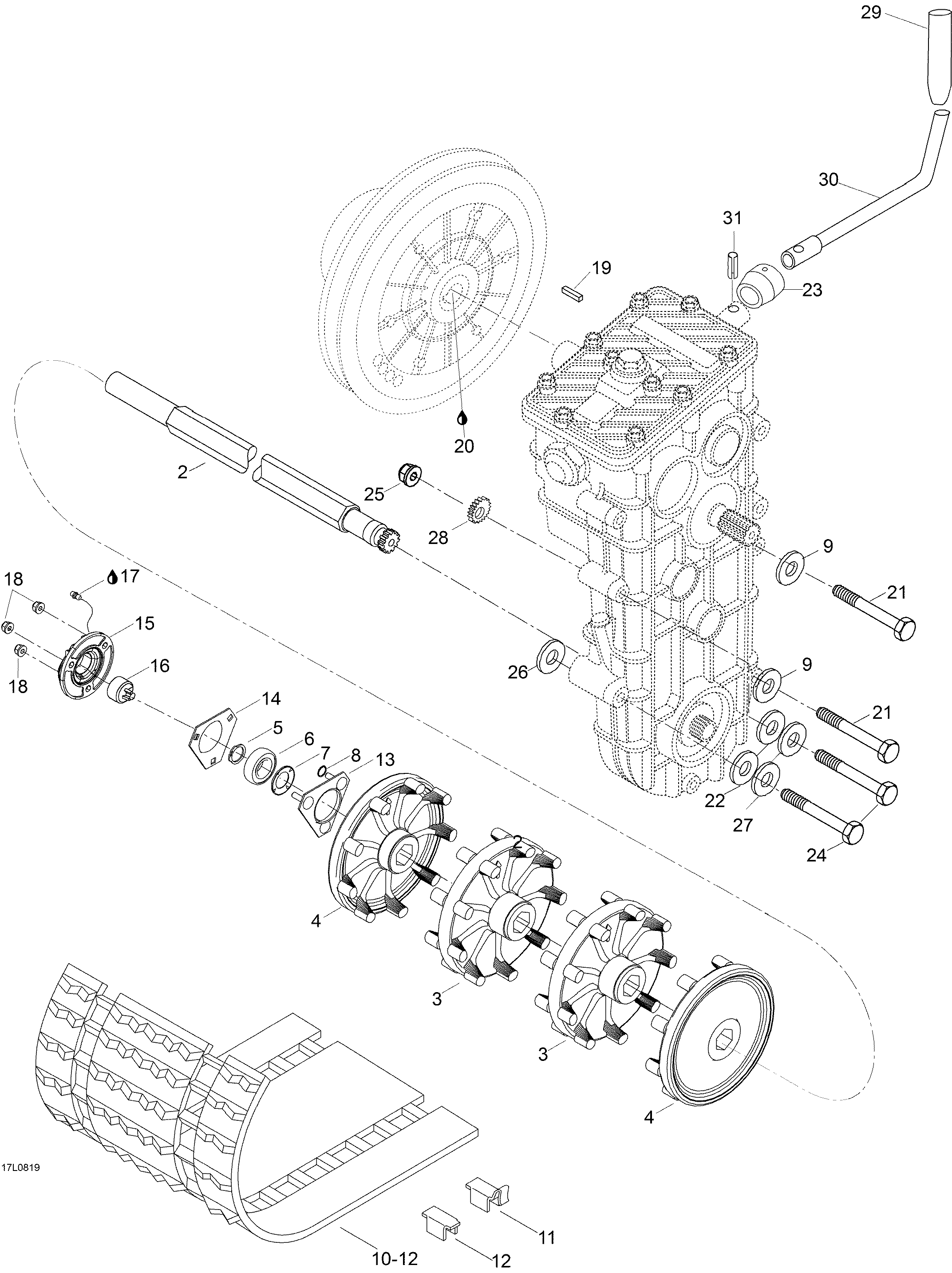

05- Drive Axle And Track для BRP Lynx YETI 600 - 2008
-
№АртикулНазвание
-
1605253105 Drive axle ass'y. Includes 1 to 4Drive axle ass'y. Includes 1 to 4
-
2605253104 Drive axleDrive axle
-
3414931800 SprocketSprocket
-
4415067400 SprocketSprocket
-
5371910200 CirclipCirclip
-
6504152009 Ball bearingBall bearing
-
7501017400 ProtectorProtector
-
8414484400 O-ringO-ring
-
920004 WasherWasher
-
1013070 Track ass'y. Includes 10 to 12Track ass'y. Includes 10 to 12
-
115318323 Cleat guideCleat guide
-
125318322 Slide guideSlide guide
-
13504151860 Ball bearing housingBall bearing housing
-
14501025000 FlangeFlange
-
15504152173 Speede sensor flangeSpeede sensor flange
-
16504152040 Magnetic adaptorMagnetic adaptor
-
17413711500 Synthetic greaseSynthetic grease
-
1833201 Elastic flanged nut M8Elastic flanged nut M8
-
19418763 KeyKey
-
20293800070 Loctite 767, antiseize lubricant, 8ozLoctite 767, antiseize lubricant, 8oz
-
2140264 Hex, screw M8 x 90Hex, screw M8 x 90
-
2220010 Lock washerLock washer
-
235446699 SleeveSleeve
-
2440012 Hex, screw M8 x 80Hex, screw M8 x 80
-
2533201 Elastic flanged nut M8Elastic flanged nut M8
-
2620077 WasherWasher
-
2720014 Spring washerSpring washer
-
28605454017 Off-Center GearOff-Center Gear
-
2928247 Shift buttonShift button
-
30605350153 Shaft handleShaft handle
-
3141008 Spring keySpring key
