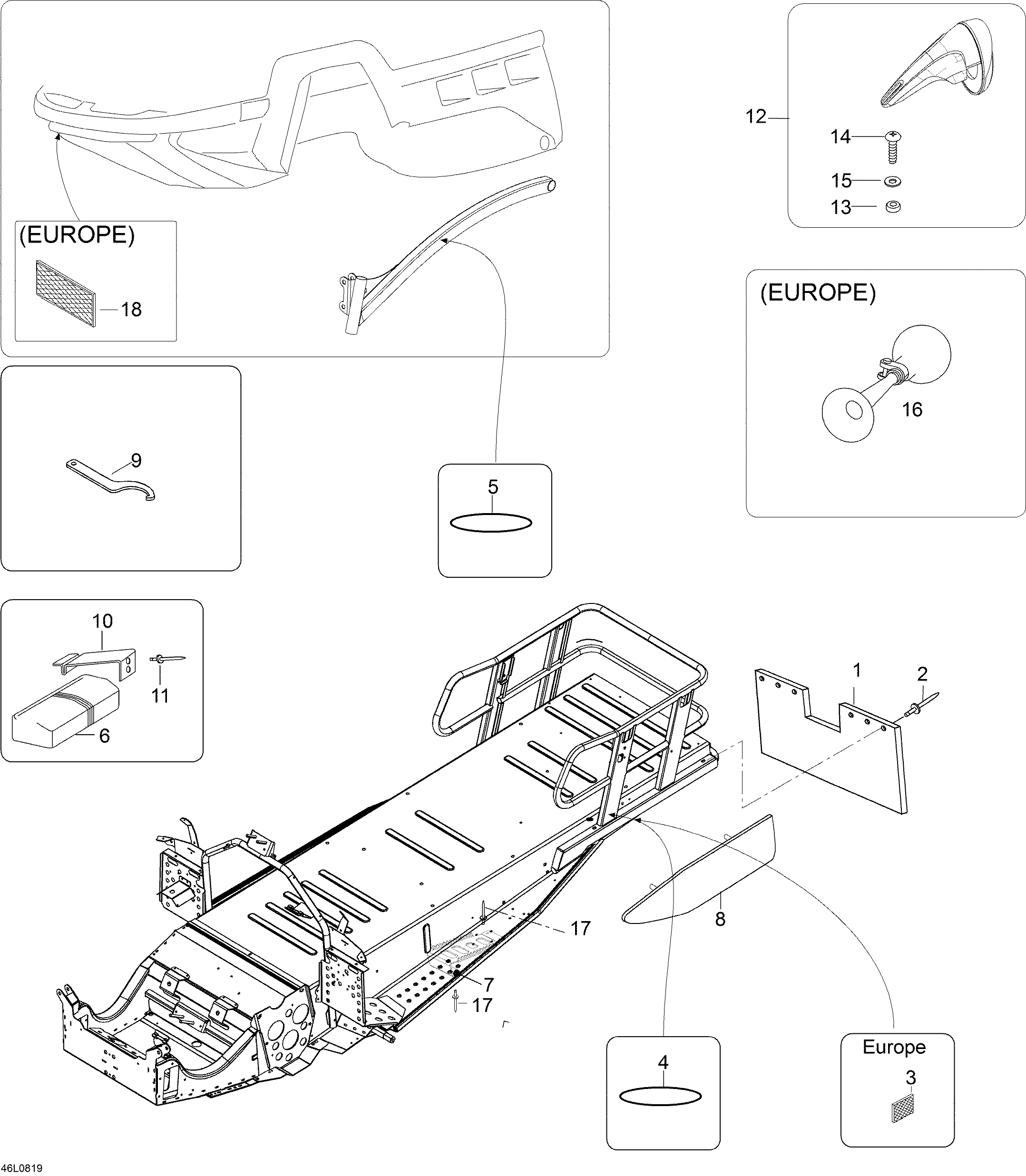

09- Utilities для BRP Lynx YETI 600 - 2008
-
№АртикулНазвание
-
1520000857 Snow guardSnow guard
-
236036 RivetRivet
-
3414510100 Reflector (Red)Reflector (Red)
-
321121 Reflector (Yellow)Reflector (Yellow)
-
4520000523 Reflegtor, redReflegtor, red
-
5520000525 Reflegtor, yellowReflegtor, yellow
-
6605350525 Tool ass'yTool ass'y
-
7605354068 FootrestFootrest
-
8605354746 Side snow quard L.HSide snow quard L.H
-
8605354747 Side snow quard R.HSide snow quard R.H
-
9529035582 Wrench adjusterWrench adjuster
-
105346728 Spring plateSpring plate
-
1136108 RivetRivet
-
12517303955 Mirror Kit. Include 12-15Mirror Kit. Include 12-15
-
13250200025 RubberwasherRubberwasher
-
14250000146 ScrewScrew
-
15250200024 WasherWasher
-
16549011291 HornHorn
-
1736489 RivetRivet
-
1821118 Reflector (White)Reflector (White)
