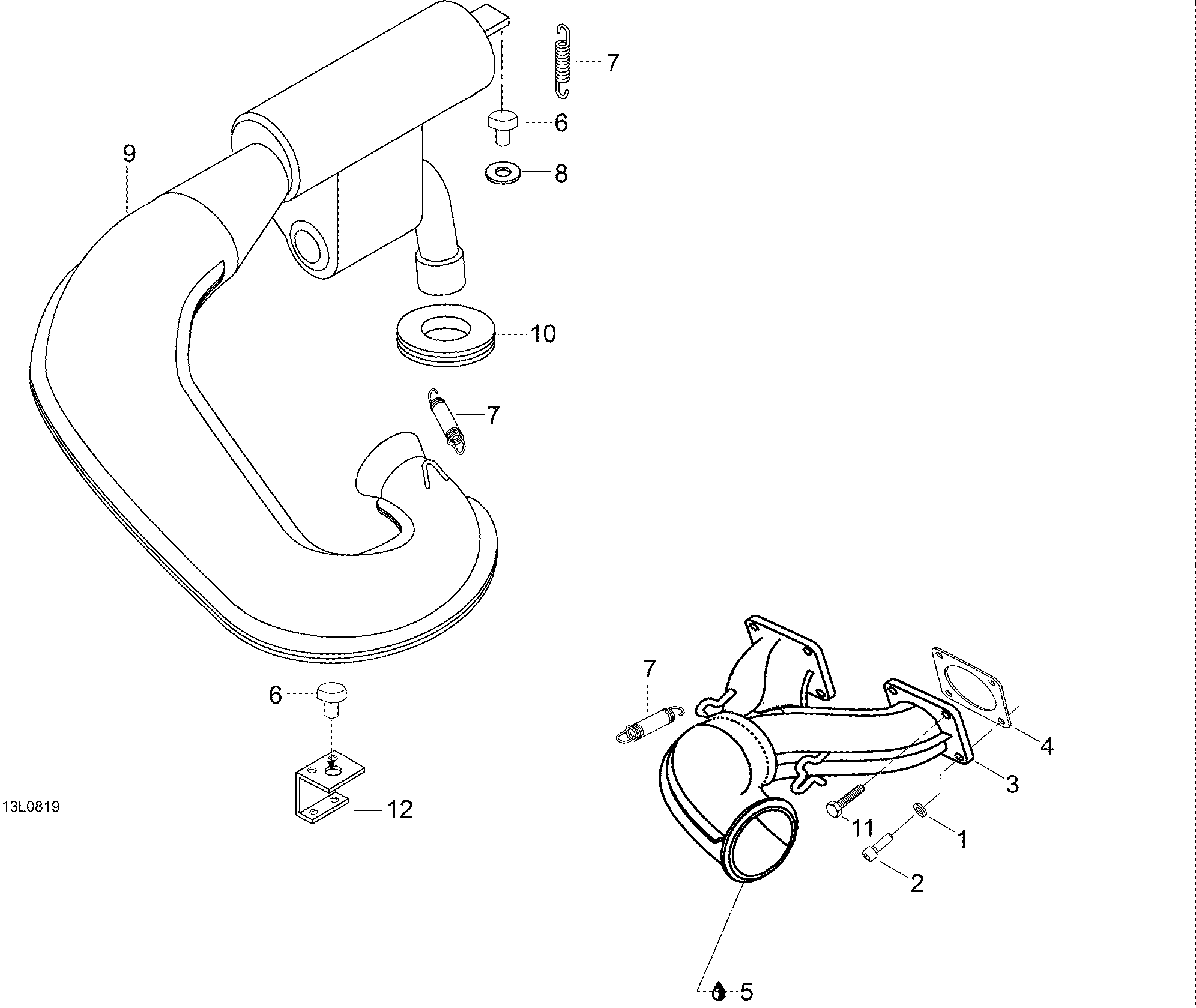

01- Exhaust System для BRP Lynx YETI 600 - 2008
-
№АртикулНазвание
-
120014 Lock washer A8Lock washer A8
-
240135 Socket head screw M8 x 30Socket head screw M8 x 30
-
35245177 Branch-YBranch-Y
-
4420931610 SealSeal
-
5293800090 Loctite, 80mlLoctite, 80ml
-
6570048700 Rubber damperRubber damper
-
7420938795 SpringSpring
-
820087 Washer M14Washer M14
-
9605148762 Tuned pipeTuned pipe
-
10570039000 GrommetGrommet
-
1140036 Hex. screw M8 x 20Hex. screw M8 x 20
-
12605355769 BracketBracket
