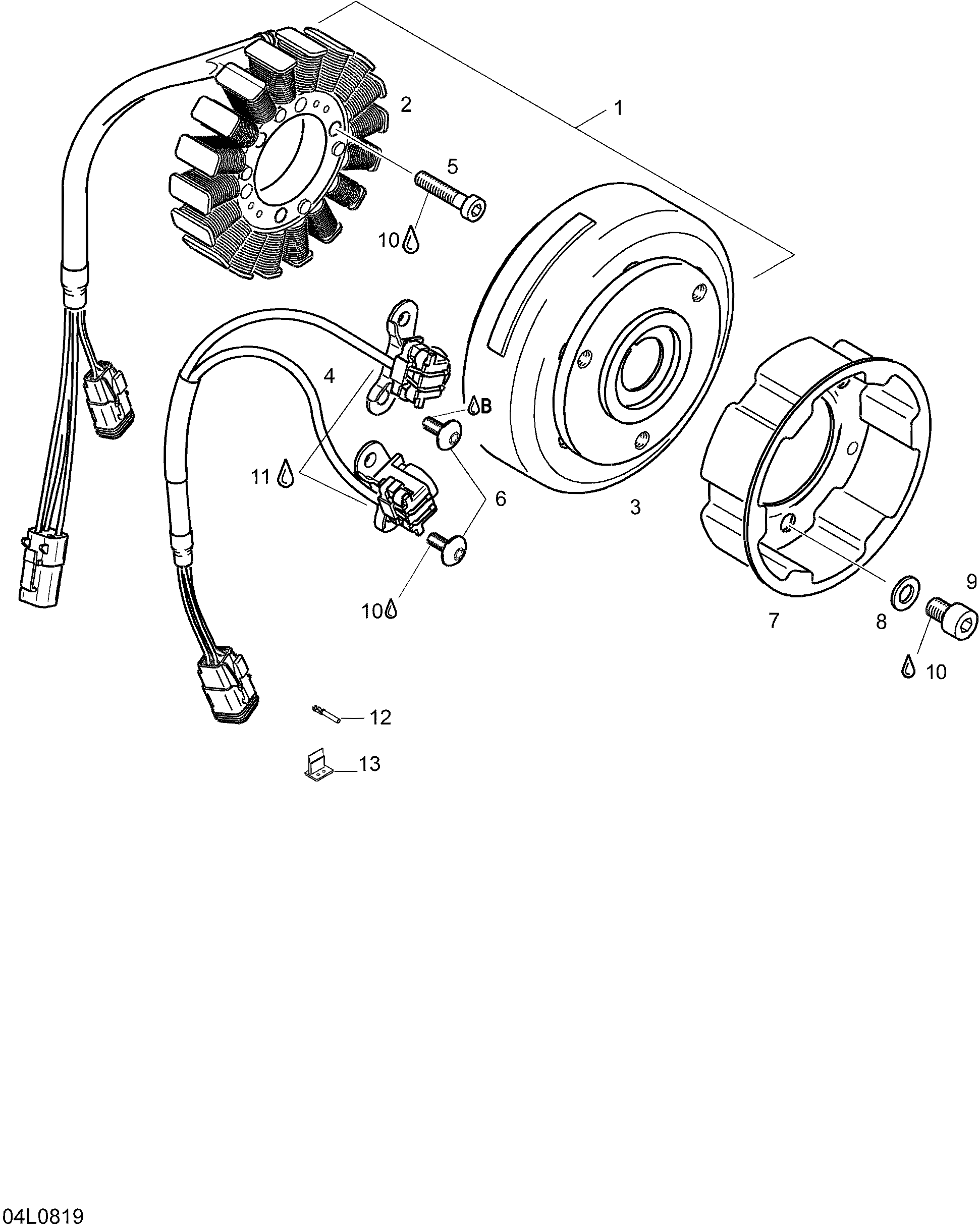

03- Magneto 593 для BRP Lynx YETI 600 - 2008
-
№АртикулНазвание
-
1420888238 Magnetto ass'y (12 V 360 W). Includes 1 to 3Magnetto ass'y (12 V 360 W). Includes 1 to 3
-
2410922993 Stator ass'yStator ass'y
-
3420888324 FlywheelFlywheel
-
4420966803 Pick up kitPick up kit
-
5420840880 Socket head screw M6 x 30Socket head screw M6 x 30
-
6420640321 Taptite screw M6 x 16Taptite screw M6 x 16
-
7420852590 Starting pulleyStarting pulley
-
8420827405 Lock washer 8 mmLock washer 8 mm
-
9420841520 Socket head screw M8 x 12Socket head screw M8 x 12
-
10293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
12278000632 Female terminalFemale terminal
-
13409207100 Female lock (2 circuits)Female lock (2 circuits)
