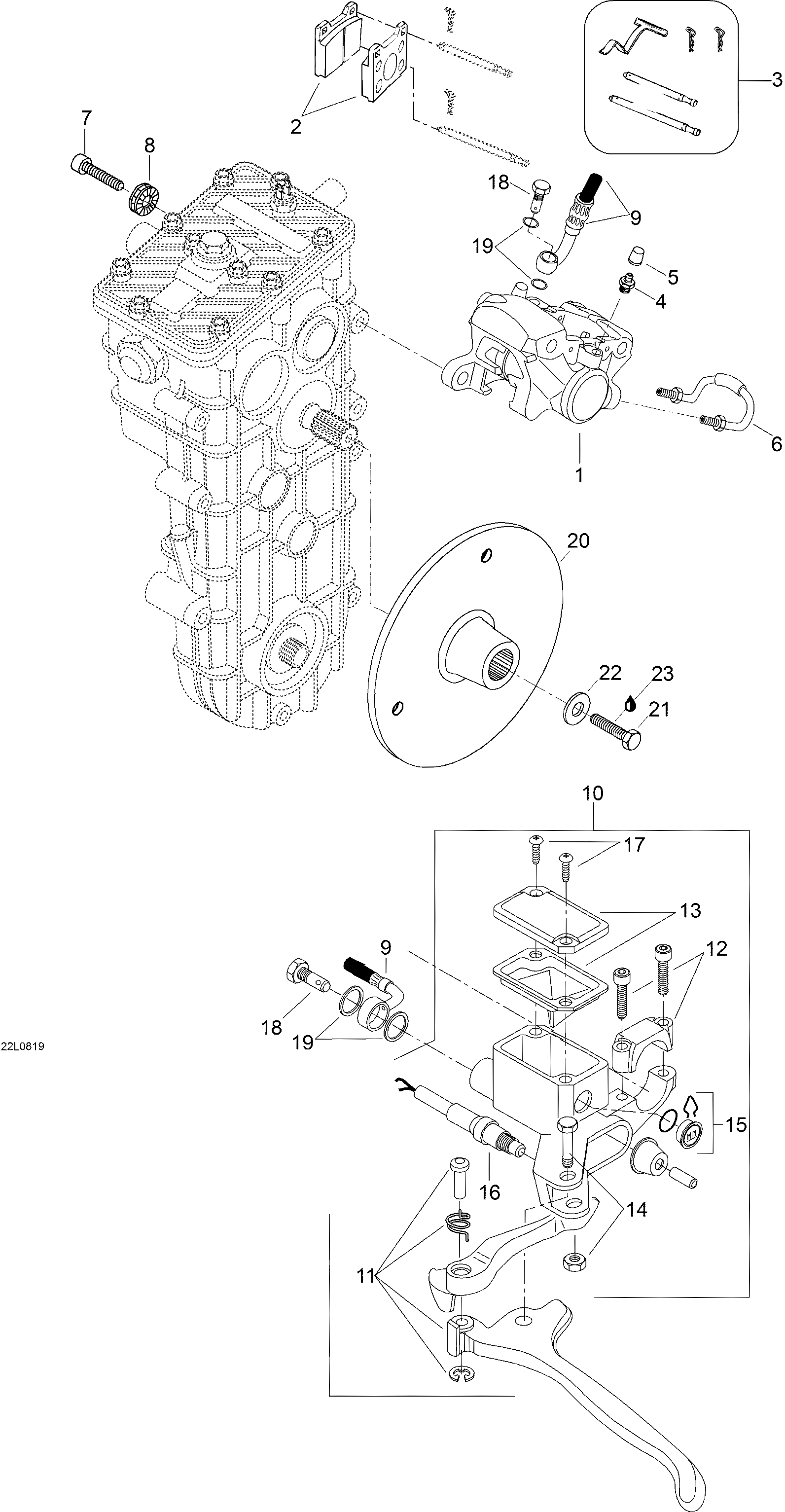

06- Brake для BRP Lynx YETI 600 - 2008
-
№АртикулНазвание
-
1507032409 Caliber. Includes 1 to 6Caliber. Includes 1 to 6
-
2415084600 Brake lining kitBrake lining kit
-
3414990700 Kit (pins, retainers, spring)Kit (pins, retainers, spring)
-
4414989800 Screw-bleederScrew-bleeder
-
5414989700 BootBoot
-
6414989900 TubeTube
-
740277 Socket head screw M10 x 65Socket head screw M10 x 65
-
820068 Lock washer D10Lock washer D10
-
9507032237 Brake hoseBrake hose
-
10507032408 Master cylinder. Includes 10 to 17Master cylinder. Includes 10 to 17
-
11507032423 Short brake leverShort brake lever
-
12507032477 Clamp assyClamp assy
-
13415029900 CoverCover
-
14415030000 Pin assyPin assy
-
16507032366 Microswitch ass'yMicroswitch ass'y
-
17216141260 ScrewScrew
-
18414920500 Banjo boltBanjo bolt
-
19414920600 WasherWasher
-
20605353250 Brake diskBrake disk
-
2140336 Hex. screw M8 x 20Hex. screw M8 x 20
-
22546336 WasherWasher
-
23293800070 Loctite 767, antiseize lubricant, 8 ozLoctite 767, antiseize lubricant, 8 oz
