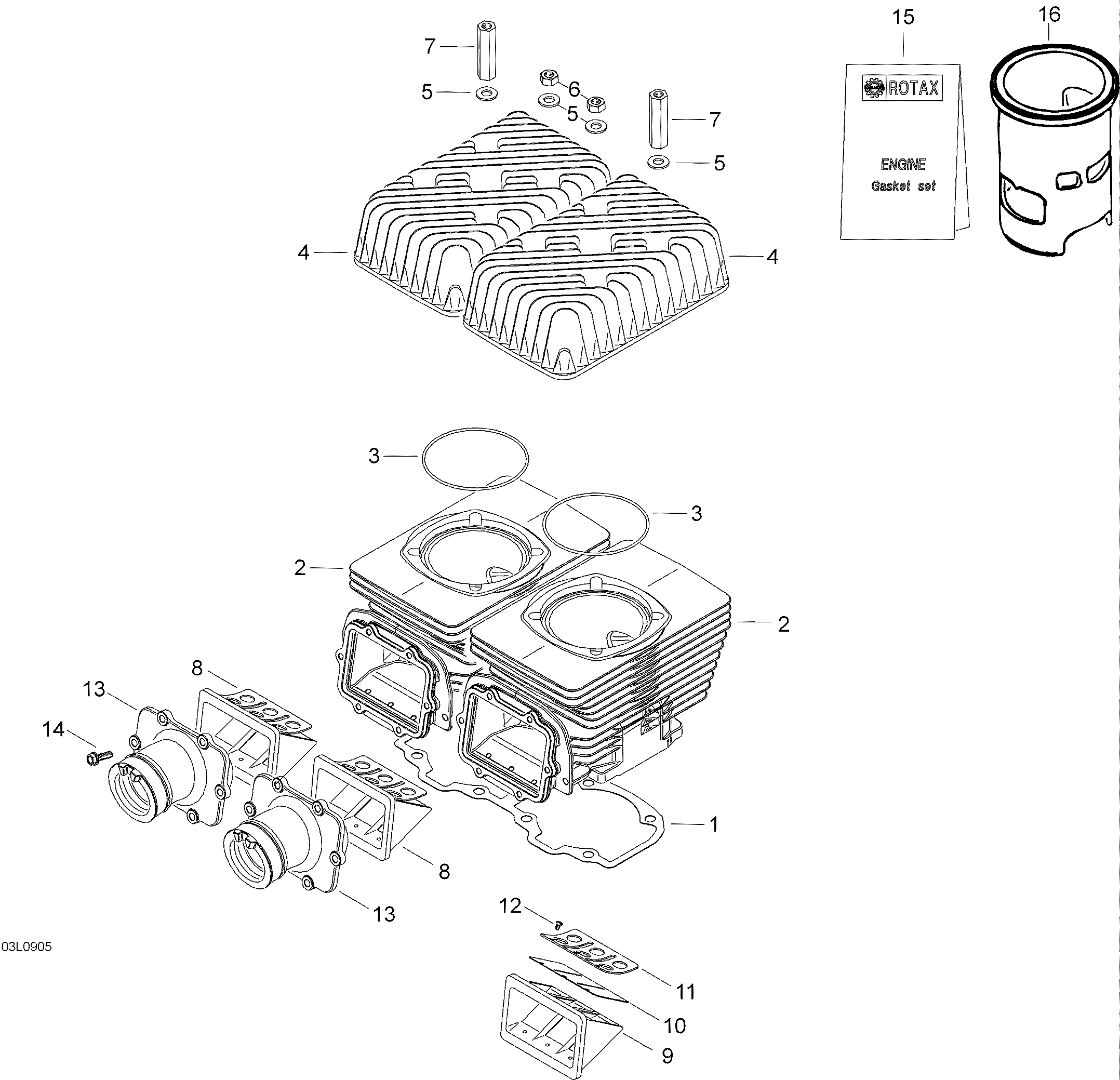

01- Cylinder And Cylinder Head для BRP Lynx YETI Pro 550 - 2009
-
№АртикулНазвание
-
1420950910 Gasket 0.3 mmGasket 0.3 mm
-
1420950911 Gasket 0.4 mmGasket 0.4 mm
-
1420950912 Gasket 0.6 mmGasket 0.6 mm
-
2420623141 Cylinder with sleeveCylinder with sleeve
-
3293300026 O-ring 83 mmO-ring 83 mm
-
4420923597 Cylinder headCylinder head
-
5420250311 Washer 8.4 mmWasher 8.4 mm
-
6420242206 Nut M8Nut M8
-
7420842203 Distance nut M8 x 47Distance nut M8 x 47
-
8420924519 Reed valve ass'yReed valve ass'y
-
10420924532 Reed pedalReed pedal
-
11420924539 Reed pedal stopReed pedal stop
-
12420941215 Oval-head screw M3 x 5Oval-head screw M3 x 5
-
13420867105 Carburetor socketCarburetor socket
-
14420941925 Taptite screw M5 x 16Taptite screw M5 x 16
-
15420889911 Engine gasket setEngine gasket set
