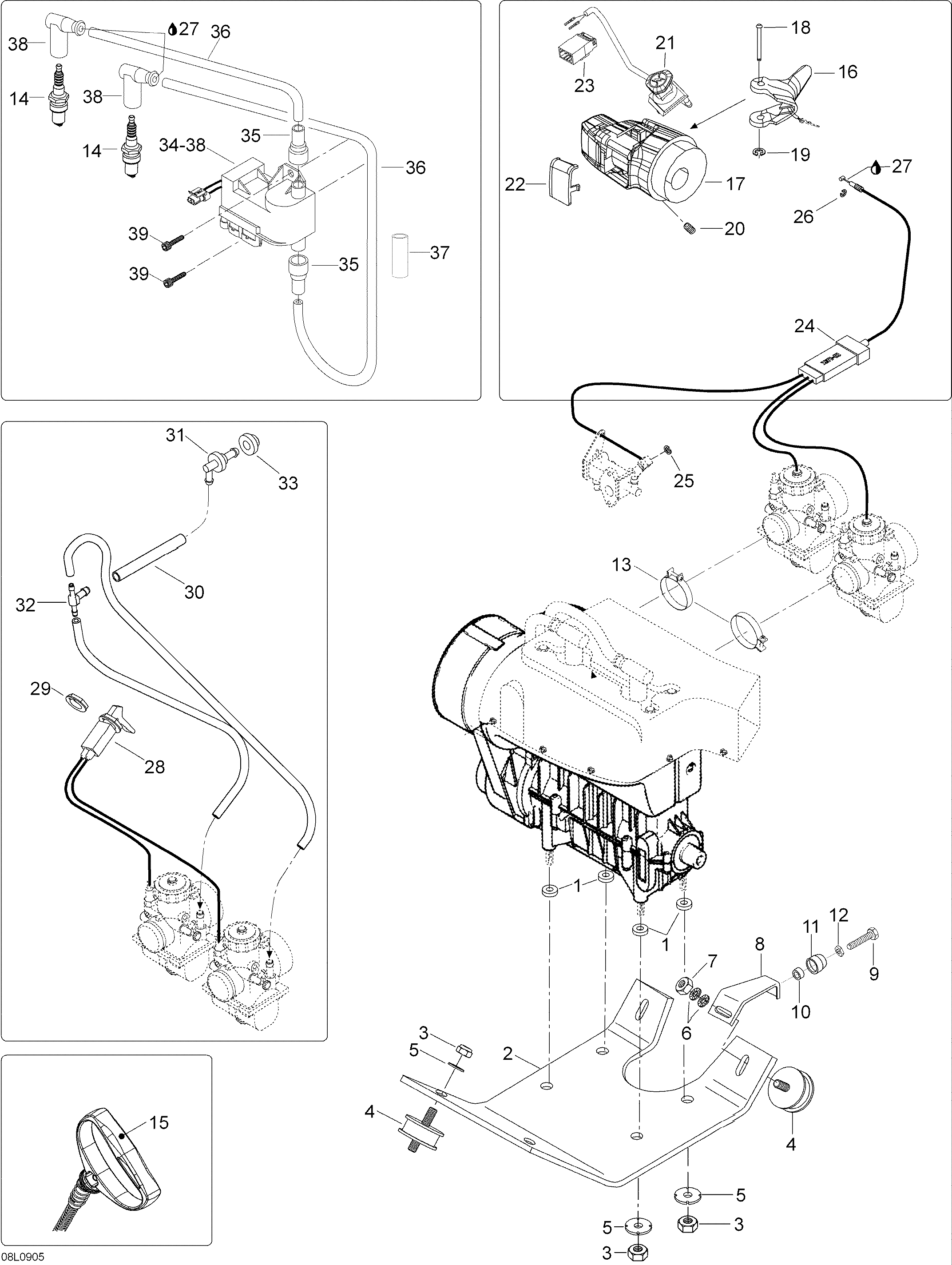

01- Engine And Engine Support для BRP Lynx YETI Pro 550 - 2009
![](/wa-data/public/shop/sheme/bombardier/lynx/041dad74-4aa7-4bd9-85e3-b317816b4b38.png)
-
№АртикулНазвание
-
15446347 SleeveSleeve
-
2605249349 Engine mount. plateEngine mount. plate
-
333012 Elastic stop nut M10Elastic stop nut M10
-
4570128700 Rubber mount.Rubber mount.
-
5512056700 Lock washerLock washer
-
620068 Lock washer D10Lock washer D10
-
733004 Nut M10Nut M10
-
8605352447 SupportSupport
-
940121 Hex. screw M8 x 40Hex. screw M8 x 40
-
102846014 Rubber sleeveRubber sleeve
-
11605449240 SleeveSleeve
-
1233003 Nut M8Nut M8
-
13414532700 ClampClamp
-
14414961100 Spark plug NGK BR9 ESSpark plug NGK BR9 ES
-
15572084400 GripGrip
-
16512060214 Heat throttle handleHeat throttle handle
-
17512059489 Throttle handle housingThrottle handle housing
-
18414438700 PinPin
-
19414439000 CirclipCirclip
-
20414440800 ScrewScrew
-
21605355643 Emergency switchEmergency switch
-
22572100901 CoverCover
-
2342618 Connector housingConnector housing
-
24605249117 Throttle cableThrottle cable
-
2531035 CirclipCirclip
-
2631038 CirclipCirclip
-
27293550004 Dielectric grease, 150gDielectric grease, 150g
-
28535482 ChokeChoke
-
29414977200 Plastic nutPlastic nut
-
3039038 HoseHose
-
31414580600 Straight fittingStraight fitting
-
32572045500 T-FittingT-Fitting
-
33513032908 GrommetGrommet
-
34512059626 Ingnition module. Includes 34 to 38Ingnition module. Includes 34 to 38
-
35515174900 Protection capProtection cap
-
36278001268 Ignition cable, l=690 mmIgnition cable, l=690 mm
-
37540806051 Protection hoseProtection hose
-
38278000237 Spark plug connectorSpark plug connector
-
3940322 Self tapping screw M6 x16Self tapping screw M6 x16
