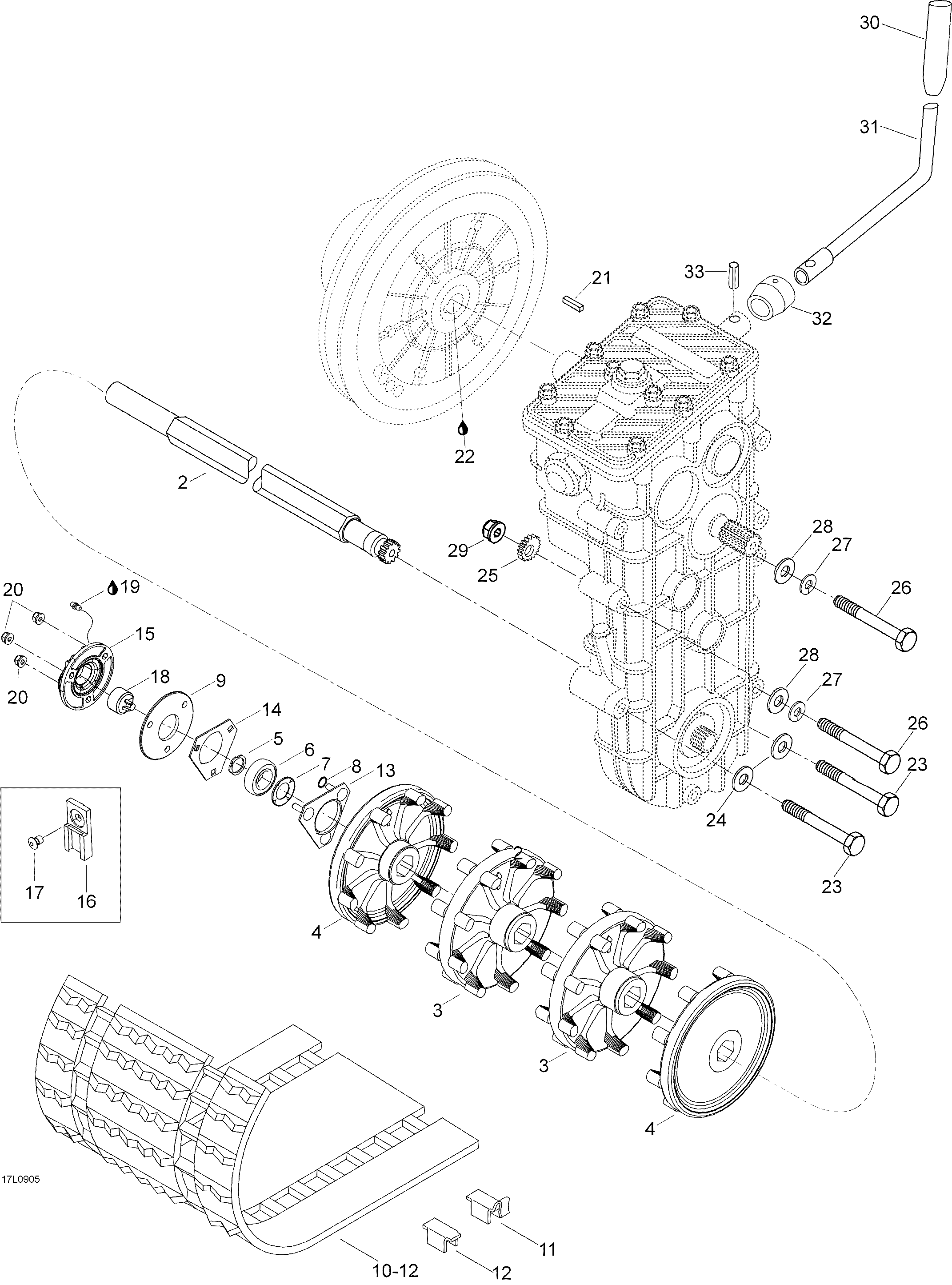

05- Drive Axle And Track для BRP Lynx YETI Pro 550 - 2009
![](/wa-data/public/shop/sheme/bombardier/lynx/8cc8bc97-d27a-48f3-86f6-7cc1c7913206.png)
-
№АртикулНазвание
-
1605253448 Drive axle ass'y. Includes 1 to 4Drive axle ass'y. Includes 1 to 4
-
2605249972 Drive axleDrive axle
-
3414931800 SprocketSprocket
-
4415067400 SprocketSprocket
-
5371910200 CirclipCirclip
-
6293350060 Ball bearingBall bearing
-
7501017400 ProtectorProtector
-
8414484400 O-ringO-ring
-
95446641 SpacerSpacer
-
1013056 Track ass'y. Includes 10 to 12Track ass'y. Includes 10 to 12
-
115318323 Cleat guideCleat guide
-
125318322 Slide guideSlide guide
-
13504151860 Ball bearing housingBall bearing housing
-
14501025000 FlangeFlange
-
15504152173 Speede sensor flangeSpeede sensor flange
-
16515175917 ClipClip
-
1736005 RivetRivet
-
18504152040 Magnetic adaptorMagnetic adaptor
-
19219700417 Synthetic greaseSynthetic grease
-
2033201 Elastic flanged nut M8Elastic flanged nut M8
-
21418763 KeyKey
-
22293800070 Loctite 767, antiseize lubricant, 8ozLoctite 767, antiseize lubricant, 8oz
-
2340089 Hex. Screw M8 x 75Hex. Screw M8 x 75
-
2420004 Washer A8,4Washer A8,4
-
25605454017 Off-Center GearOff-Center Gear
-
2640012 Hex, screw M8 x 80Hex, screw M8 x 80
-
2720014 Lock washerLock washer
-
2820010 WasherWasher
-
2933201 Elastic flanged nut M8Elastic flanged nut M8
-
3028247 Shift buttonShift button
-
31605350153 Shaft handleShaft handle
-
325446699 SleeveSleeve
-
3341008 Spring keySpring key
-
2440089 Hex, screw M8 x 75Hex, screw M8 x 75
