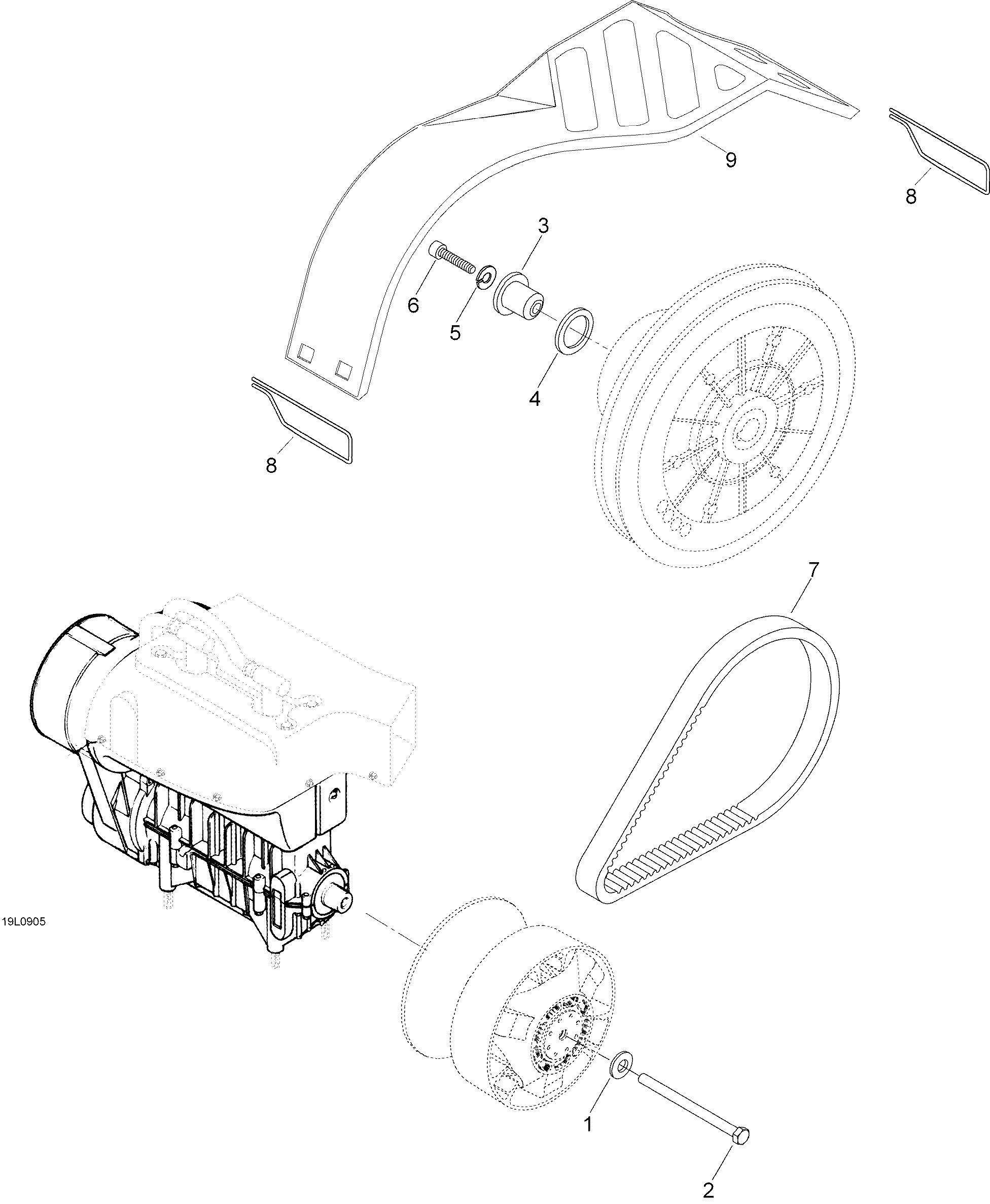

05- Pulley System для BRP Lynx YETI Pro 550 - 2009
-
№АртикулНазвание
-
120090 Lock washerLock washer
-
2417113800 ScrewScrew
-
35443765 Shaft extensionShaft extension
-
43125351 ShimShim
-
520014 Lock washer A8Lock washer A8
-
640290 Socket head screw M8 x 55Socket head screw M8 x 55
-
7605348425 Drive beltDrive belt
-
85442726 PinPin
-
95142660 Belt guardBelt guard
