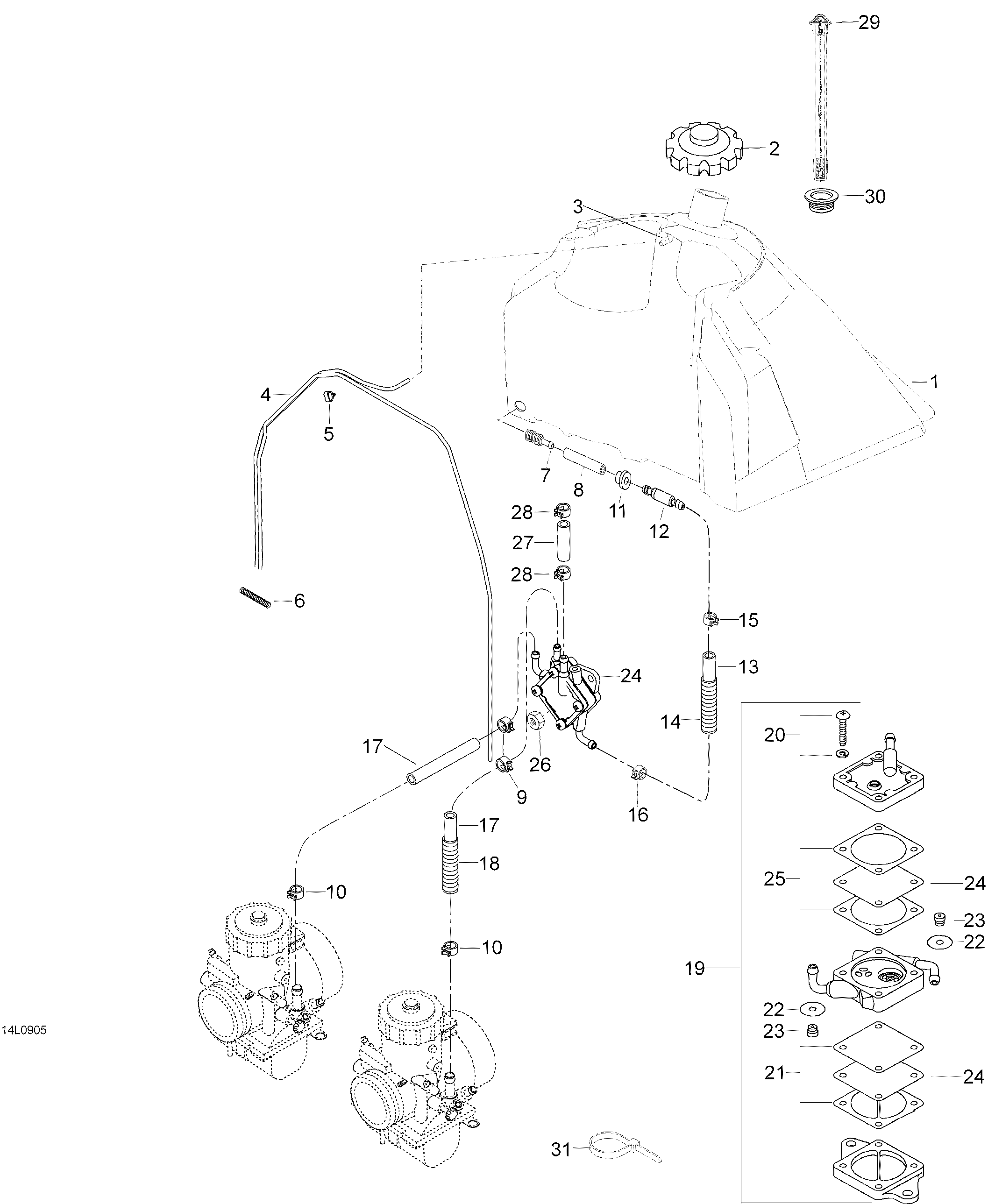

02- Fuel System для BRP Lynx YETI Pro 550 - 2009
-
№АртикулНазвание
-
1605154804 Fuel tankFuel tank
-
2580259400 CapCap
-
3404127600 NippelNippel
-
439035 HoseHose
-
5513032923 ClampClamp
-
625003 SpringSpring
-
7414872100 FilterFilter
-
839048 HoseHose
-
9605627005 ClampClamp
-
10414655700 ClampClamp
-
11570273900 GrommetGrommet
-
12414872700 Connector maleConnector male
-
13605355604 HoseHose
-
1427127 TubingTubing
-
15605627009 ClampClamp
-
16513032979 ClampClamp
-
17605355647 Fuel hoseFuel hose
-
18409901800 TubingTubing
-
1919113 Fuel pump ass'y. Includesa 19 to 25Fuel pump ass'y. Includesa 19 to 25
-
21404902300 GasketGasket
-
22404902100 GrommetGrommet
-
23275500042 ValveValve
-
25404902400 GasketGasket
-
2633010 NutNut
-
2739001 Fuel hoseFuel hose
-
28414420700 ClampClamp
-
29605351982 Fuel gaugeFuel gauge
-
30293720058 GrommetGrommet
-
3127026 Tie rapTie rap
