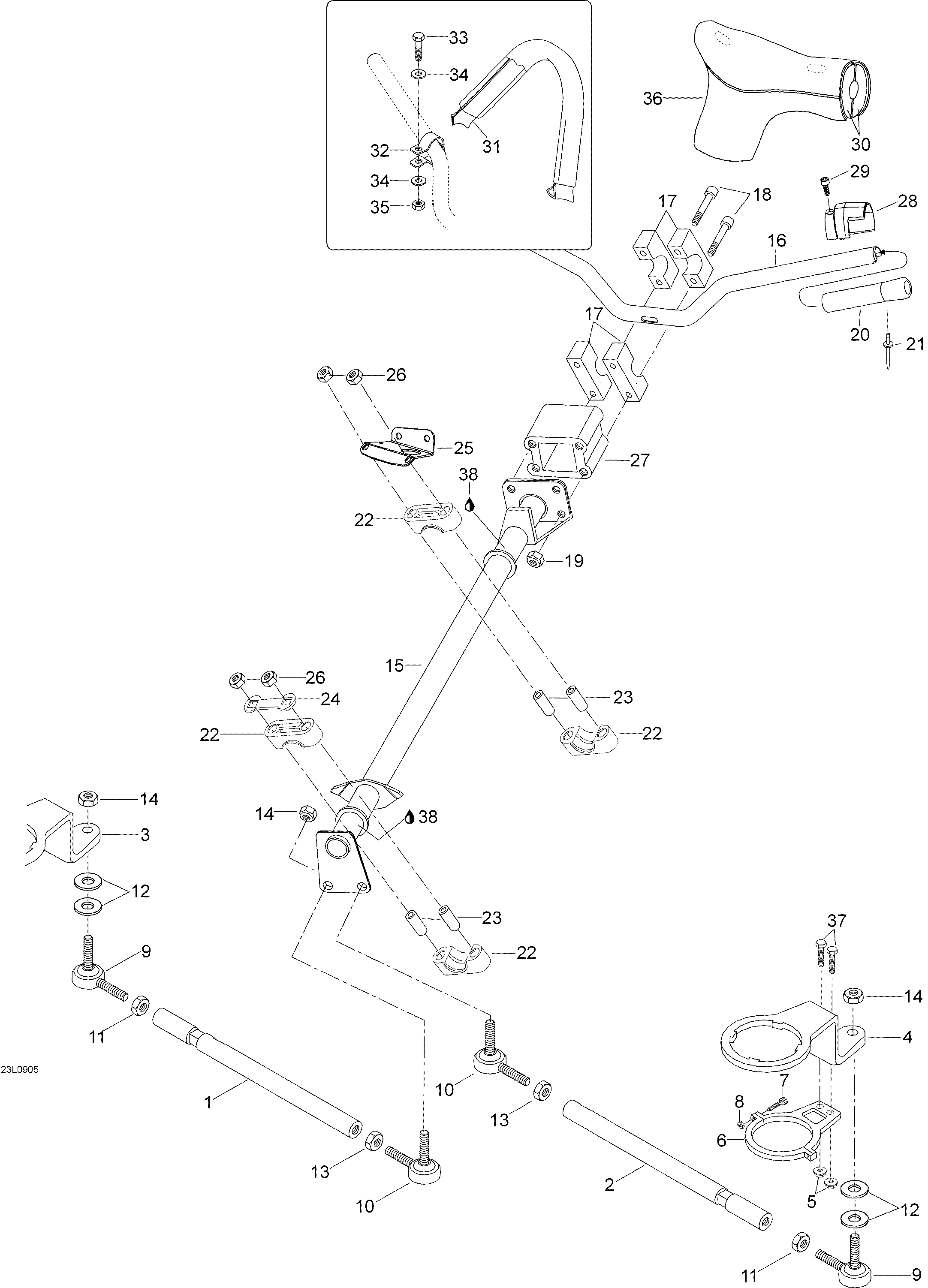

07- Steering System для BRP Lynx YETI Pro 550 - 2009
-
№АртикулНазвание
-
1605455619 R.H. tie rod lenght. 430 mmR.H. tie rod lenght. 430 mm
-
2605455620 L.H. tie rod lenght. 388 mmL.H. tie rod lenght. 388 mm
-
3605353422 R.H. Arm-steeringR.H. Arm-steering
-
4605353423 L.H. Arm-steeringL.H. Arm-steering
-
533200 Elastic flanged nut M6Elastic flanged nut M6
-
65344180 Support ass'ySupport ass'y
-
740146 Socket head screw M4 x 20Socket head screw M4 x 20
-
833008 Elastic stop nut M4Elastic stop nut M4
-
9506151492 R.H. Ball jointR.H. Ball joint
-
10506151495 L.H. Ball jointL.H. Ball joint
-
1133019 Nut R.H.Nut R.H.
-
1231014 Shim ringShim ring
-
1333017 Nut L.H.Nut L.H.
-
1433023 Elastic stop nut M10Elastic stop nut M10
-
15605255608 Main tubeMain tube
-
16605251368 Handle barHandle bar
-
17548448 Steering clampSteering clamp
-
1840124 Socket head screw M8 x 100Socket head screw M8 x 100
-
1933011 Elastic stop nut M8Elastic stop nut M8
-
205340464 GripGrip
-
2136005 RivetRivet
-
22506150400 Half bushingHalf bushing
-
23506150500 Housing bushingHousing bushing
-
24506150600 Stopper plateStopper plate
-
25605352322 Console supportConsole support
-
2633201 Elastic flanged nut M8Elastic flanged nut M8
-
27605349584 Extension 60mmExtension 60mm
-
28506151566 AdapterAdapter
-
2940390 Insex screw M8 x 20Insex screw M8 x 20
-
30605252111 Foam, rearFoam, rear
-
30605252110 Foam, frontFoam, front
-
31506152115 Tie-downTie-down
-
32506151792 Support plateSupport plate
-
3340031 Hex. screw M6 x 25Hex. screw M6 x 25
-
3420003 WasherWasher
-
3533010 Elastic stop nut M6Elastic stop nut M6
-
36605254571 CoverCover
-
3740031 Hex. screw M6 x 25Hex. screw M6 x 25
-
38219700417 Synthetic greaseSynthetic grease
