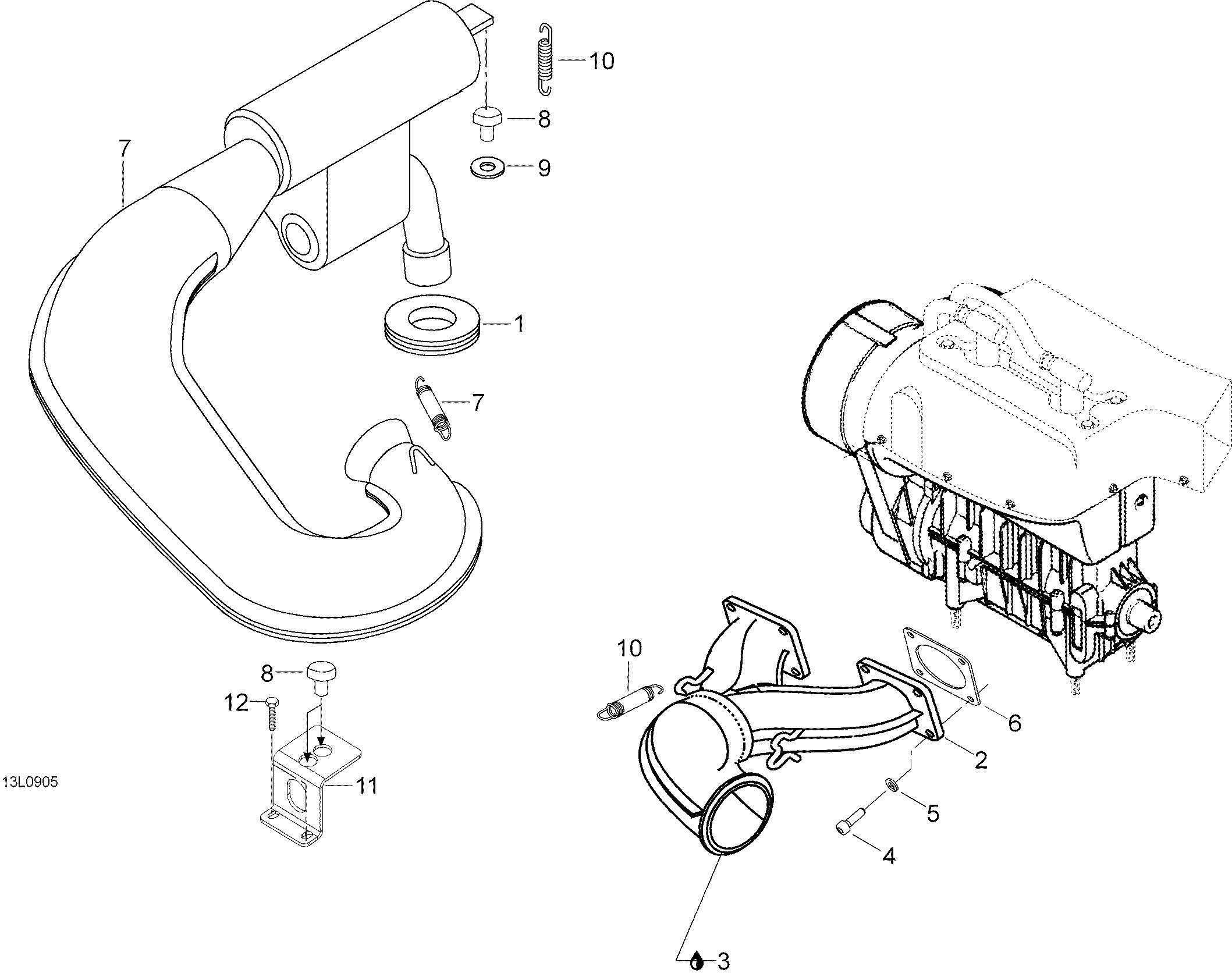

01- Exhauast System для BRP Lynx YETI Pro 550 - 2009
-
№АртикулНазвание
-
1570039000 GrommetGrommet
-
2420973512 Branch-YBranch-Y
-
3293800090 Loctite, 80mlLoctite, 80ml
-
440135 Socket head screw M8 x 30Socket head screw M8 x 30
-
520014 Lock washer A8Lock washer A8
-
6420831849 SealSeal
-
7605155509 Tuned pipeTuned pipe
-
8514053654 Rubber damperRubber damper
-
920087 Washer M14Washer M14
-
10420938795 SpringSpring
-
11605455781 BracketBracket
-
1240327 Hex. Screw M6 x 12Hex. Screw M6 x 12
