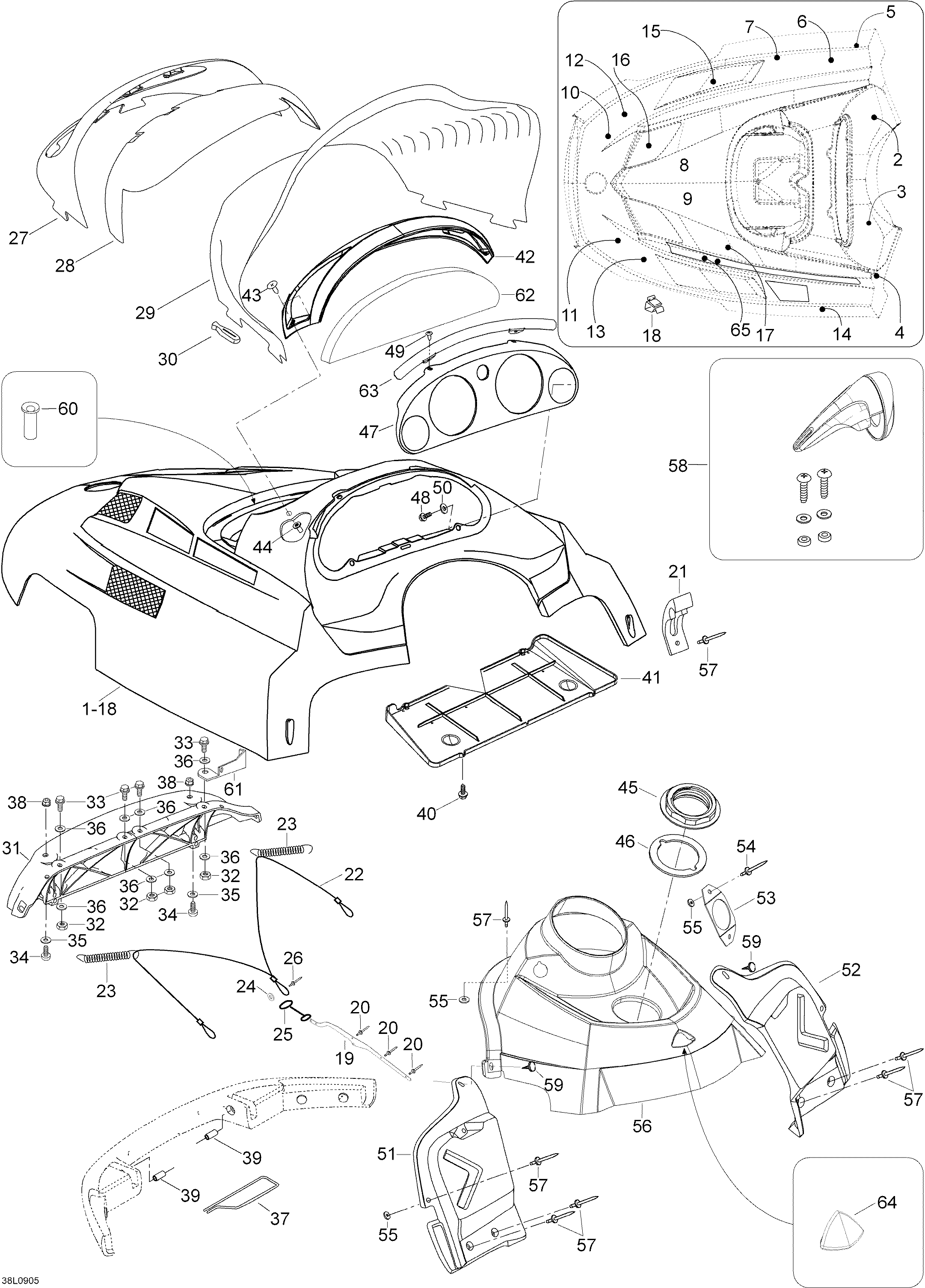

09- Hood для BRP Lynx YETI Pro 550 - 2009
-
№АртикулНазвание
-
1605354825 Hood. pre ass'y Velvet blue. Includes 1 to 18Hood. pre ass'y Velvet blue. Includes 1 to 18
-
2605350906 Isolation Rear L.H.Isolation Rear L.H.
-
3605350907 Isolation Rear R.H.Isolation Rear R.H.
-
4605350908 Isolation Rear R.H. folioIsolation Rear R.H. folio
-
5605350909 Isolation rear L.H. lowerIsolation rear L.H. lower
-
6605350910 Isolation Rear L.H. UpperIsolation Rear L.H. Upper
-
7605350911 Isolation Rear Center L.HIsolation Rear Center L.H
-
8605350912 Isolation center LHIsolation center LH
-
9605350913 Isolation center R.H.Isolation center R.H.
-
15605350923 L.H. GrillL.H. Grill
-
15605350924 R.H. GrillR.H. Grill
-
16605350925 L.H. GrillL.H. Grill
-
16605350926 R.H. GrillR.H. Grill
-
17605350927 Grill, rearGrill, rear
-
18414227300 PidikejousiPidikejousi
-
19605452657 BracketBracket
-
2036005 RivetRivet
-
21517302152 LatchLatch
-
22605351372 Retainer cableRetainer cable
-
235442675 SpringSpring
-
2420001 Washer A4,3Washer A4,3
-
255442870 BracketBracket
-
2636097 RivetRivet
-
27517302158 Moulding Head LampMoulding Head Lamp
-
28517302003 Windshiel supportWindshiel support
-
29605152073 WindshieldWindshield
-
30570023800 LatchLatch
-
31517302631 Hinge halfHinge half
-
3233010 Elastic stop nut M6Elastic stop nut M6
-
3340030 Hex, screw M6 x 20Hex, screw M6 x 20
-
3440381 Socket head screw M6 x 20Socket head screw M6 x 20
-
3520117 Washer 6mmWasher 6mm
-
3620009 Washer A6,4Washer A6,4
-
37605454779 PinPin
-
3833200 Elastic flanged nut M6Elastic flanged nut M6
-
39605454780 BushingBushing
-
40243141630 Screw M4.8 x 16Screw M4.8 x 16
-
41605354612 Air intake plateAir intake plate
-
42605151832 CoverCover
-
4340061 Screw M4 x 18Screw M4 x 18
-
4428051 Well-nutWell-nut
-
45517302043 NutNut
-
465447116 GasketGasket
-
47605354134 Indicator supportIndicator support
-
4840611 Self tapping screw K40 x 10Self tapping screw K40 x 10
-
4940888 Wronic-screw 4,2 x 19Wronic-screw 4,2 x 19
-
5020039 WasherWasher
-
51605251384 L.H. ConsoleL.H. Console
-
52605251922 R.H. ConsoleR.H. Console
-
53605352405 Support, R.H. ConsoleSupport, R.H. Console
-
5436005 RivetRivet
-
5520008 Washer A5,3Washer A5,3
-
56605252075 Middle consoleMiddle console
-
5736037 RivetRivet
-
58517303955 Mirror kitMirror kit
-
59414644300 DartDart
-
605444445 Inlet tubeInlet tube
-
61605351464 R.H. support, hoodR.H. support, hood
-
61605351463 L.H. support, hoodL.H. support, hood
-
62605352583 FilterFilter
-
63605352586 Support plateSupport plate
-
64605452114 PluggPlugg
-
6544001 Relective sheetRelective sheet
