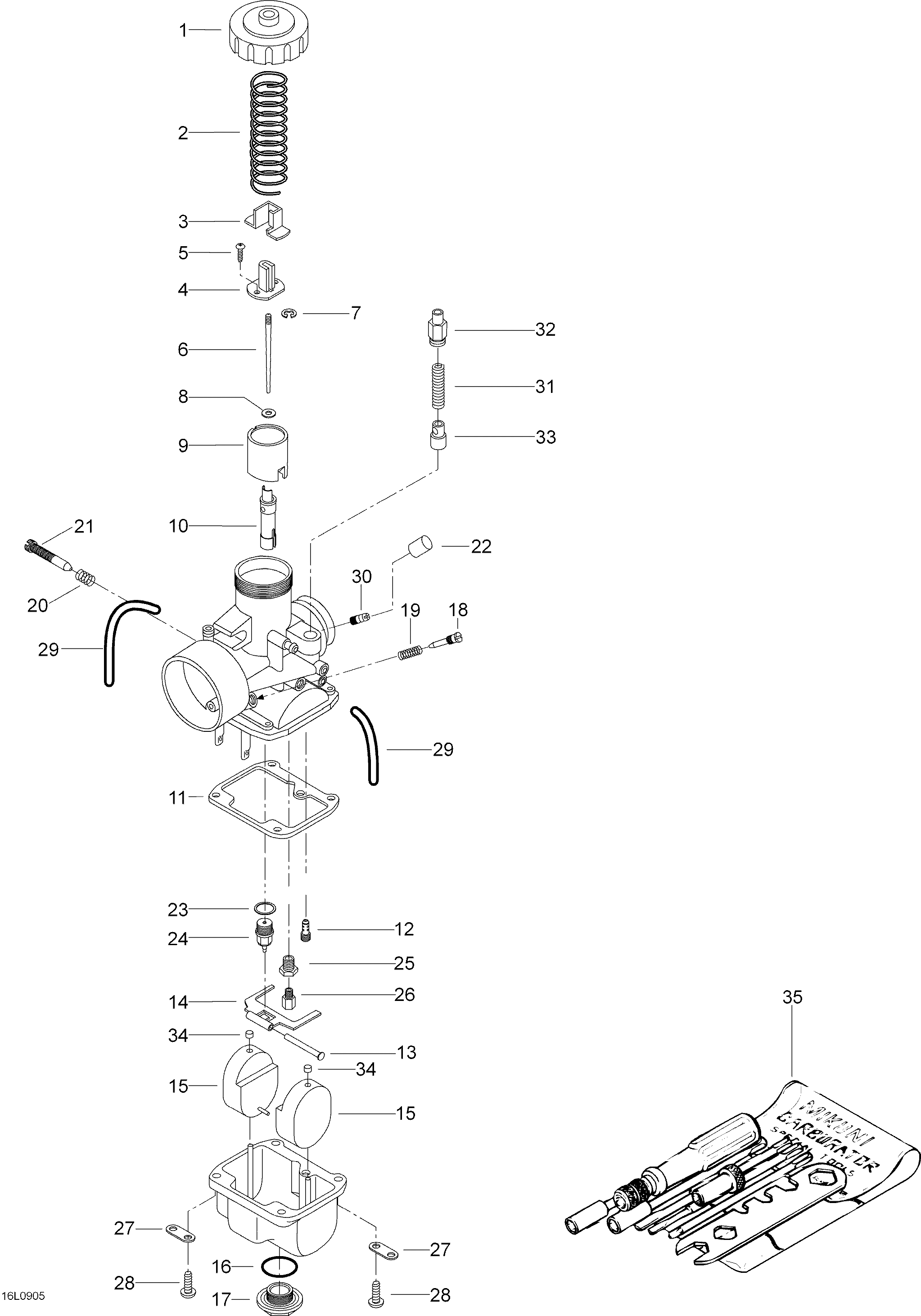

02- Carburetor для BRP Lynx YETI Pro 550 - 2009
-
№АртикулНазвание
-
-19181 Carburetor VM 34. Includes 1 to 34Carburetor VM 34. Includes 1 to 34
-
1404103700 CoverCover
-
2404154800 Throttle vale springThrottle vale spring
-
3404122100 CoverCover
-
4404160800 ConnectorConnector
-
5404121300 Screw with washerScrew with washer
-
6404162113 Jet needle 6BFY46-2Jet needle 6BFY46-2
-
7404152400 E-ringE-ring
-
8404117000 PackingPacking
-
10404120800 Needle jet NJ159 P-8Needle jet NJ159 P-8
-
11404104200 Gasket panGasket pan
-
12404109100 Pilot jet PJ 40Pilot jet PJ 40
-
13404103300 Float arm pinFloat arm pin
-
14404107600 Float leverFloat lever
-
15404107100 FloatFloat
-
16404107300 O-ringO-ring
-
17404107400 Plug screwPlug screw
-
18404102300 Air screwAir screw
-
19404101800 SpringSpring
-
20404101700 Throttle stop screw springThrottle stop screw spring
-
21404102800 Throttle stop screwThrottle stop screw
-
2219057 CapCap
-
23404101600 GasketGasket
-
24404147500 Needle valve 1.2VNeedle valve 1.2V
-
25404105500 Guide screwGuide screw
-
26404119000 Main jet MJ 190Main jet MJ 190
-
27404103000 PlatePlate
-
28404102000 Screw and lock washerScrew and lock washer
-
29404160100 Air Vent tubeAir Vent tube
-
30404127600 NippleNipple
-
31404127400 SpringSpring
-
32404161100 Support-guideSupport-guide
-
33404160400 Plunger ass'yPlunger ass'y
-
34404105800 CapCap
-
35404112000 Tool kitTool kit
