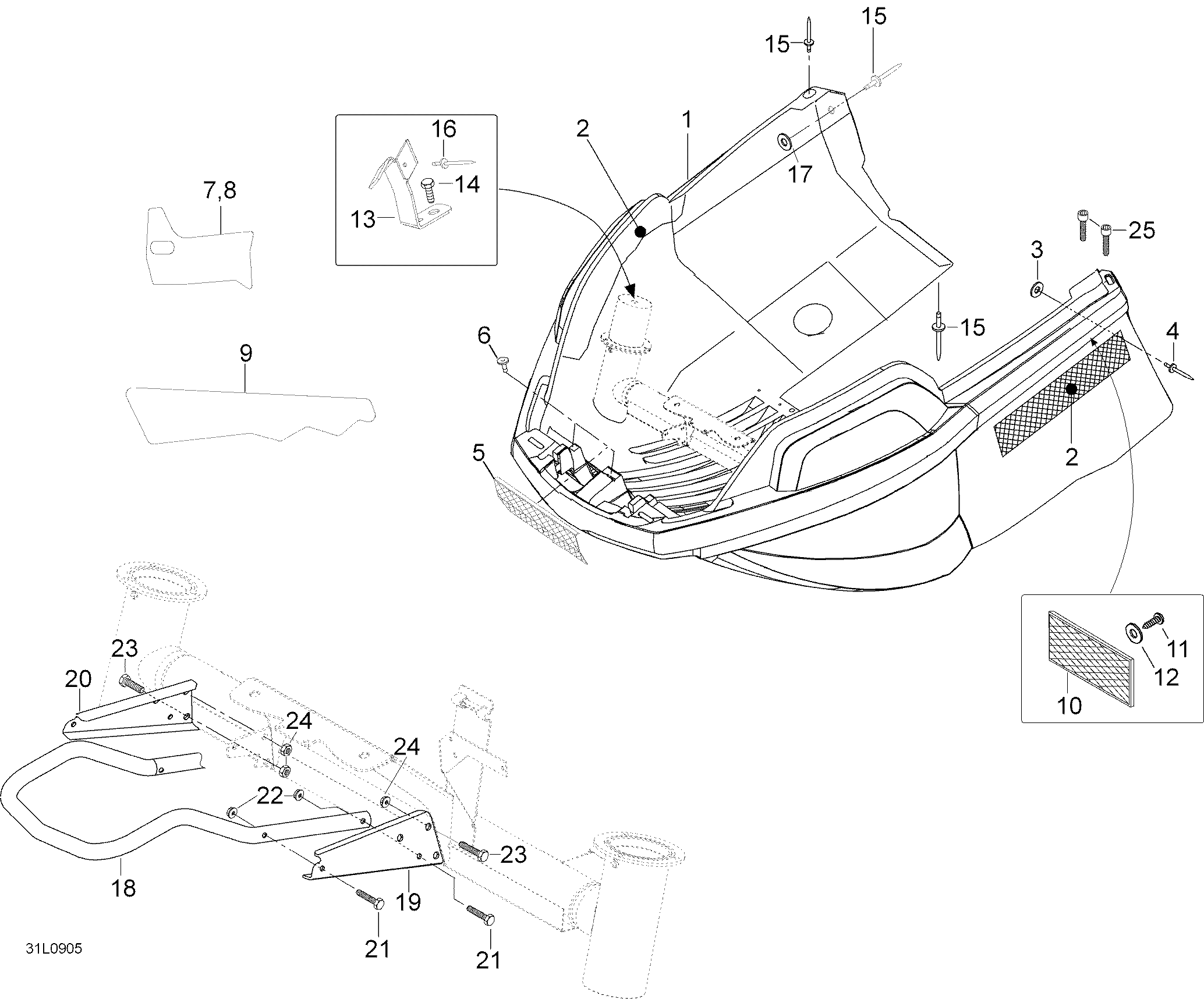

09- Bottom Pan для BRP Lynx YETI Pro 550 - 2009
-
№АртикулНазвание
-
1605155742 Bottom pan ass'y. Includes 1 to 9Bottom pan ass'y. Includes 1 to 9
-
2605354969 Side Grill L.HSide Grill L.H
-
320008 Washer A5,3Washer A5,3
-
436009 RivetRivet
-
5605255513 Grill, frontGrill, front
-
640847 Wronic-ruuvi MUP 4,2x13Wronic-ruuvi MUP 4,2x13
-
7605255744 Isolation bottompan R.HIsolation bottompan R.H
-
8605255746 Isolation bottompan L.HIsolation bottompan L.H
-
9605255745 Isolation bottompan upper R.HIsolation bottompan upper R.H
-
10414510200 Reflector, AmberReflector, Amber
-
1140063 Screw M5 x 12Screw M5 x 12
-
1220018 Serrated lock washer A5,3Serrated lock washer A5,3
-
13605354709 L.H. BracketL.H. Bracket
-
13605354710 R.H. BracketR.H. Bracket
-
1440401 Screw M6 x 10Screw M6 x 10
-
1536037 RivetRivet
-
1636087 RivetRivet
-
1720008 Washer A5,3Washer A5,3
-
18605255112 BumperBumper
-
19605355113 Bumper Fastening Plate L.HBumper Fastening Plate L.H
-
20605355114 Bumper Fastening Plate R.HBumper Fastening Plate R.H
-
2140002 Hex. screw M6 x 40Hex. screw M6 x 40
-
2233200 Elastic flanged nut M6Elastic flanged nut M6
-
2340036 Hex. screw M8 x 20Hex. screw M8 x 20
-
2433201 Elastic flanged nut M8Elastic flanged nut M8
-
2540332 Screw M6 x 16Screw M6 x 16
