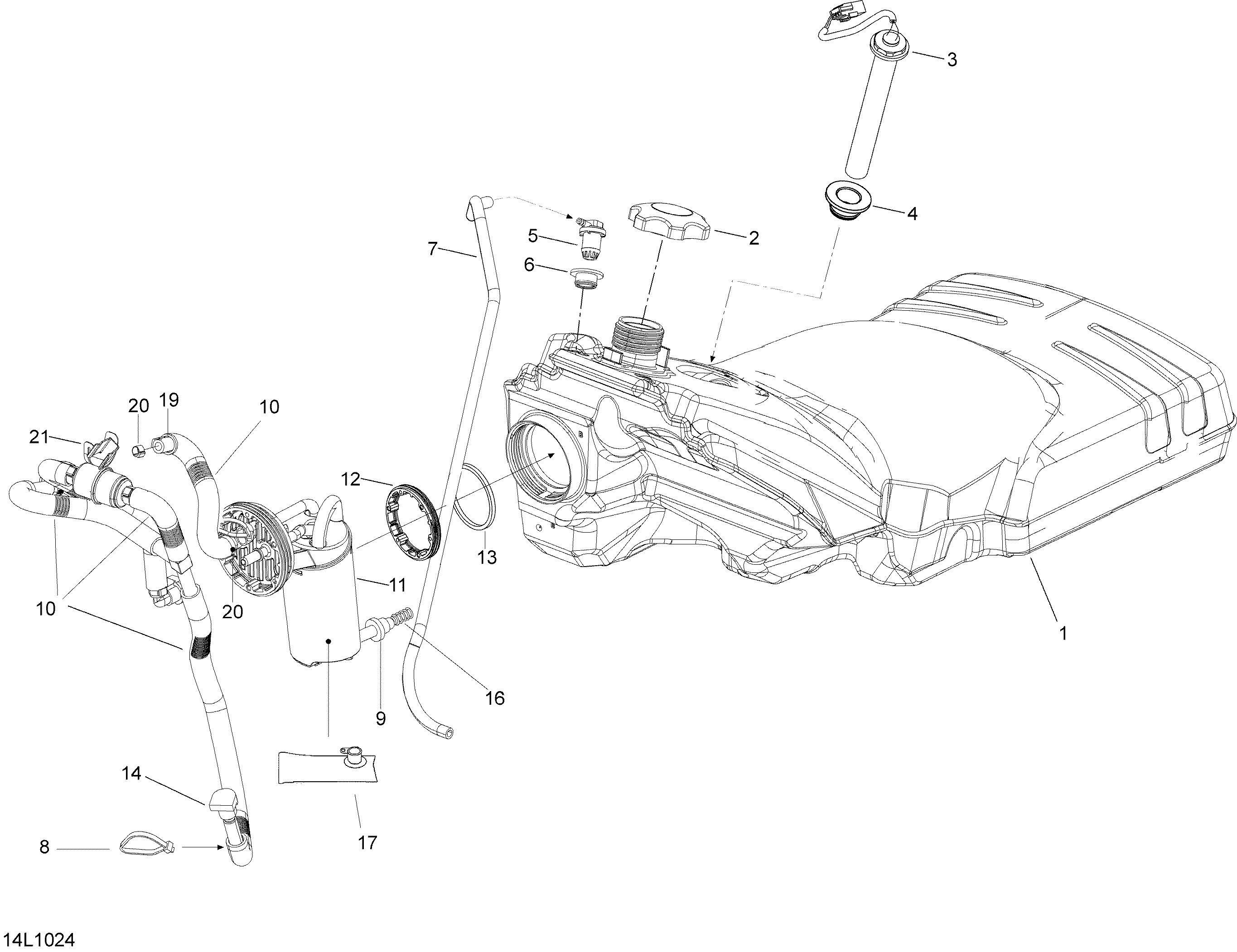

02- Fuel System для BRP Lynx Adventure GT 600 SDI - 2010
-
№АртикулНазвание
-
1513033386 Fuel tankFuel tank
-
2513033025 CapCap
-
3513033538 Fuel sensorFuel sensor
-
4293720058 GrommetGrommet
-
5513033188 Check valveCheck valve
-
6513033596 GrommetGrommet
-
7513033571 HoseHose
-
8414115200 Tie rapTie rap
-
928037 GrommetGrommet
-
10415080000 Protector tubeProtector tube
-
11513033585 Fuel pump ass'yFuel pump ass'y
-
12513033180 RingRing
-
13513033334 GasketGasket
-
14513033430 Hose ass'y (incl. fuel filter, press. reg.)Hose ass'y (incl. fuel filter, press. reg.)
-
16414872100 Fuel filter (in tank, fuel line)Fuel filter (in tank, fuel line)
-
17415129451 Fuel filter (in tank, fuel pump)Fuel filter (in tank, fuel pump)
-
19513033544 HoseHose
-
20293650047 ClampClamp
-
21513033336 Filter clipFilter clip
