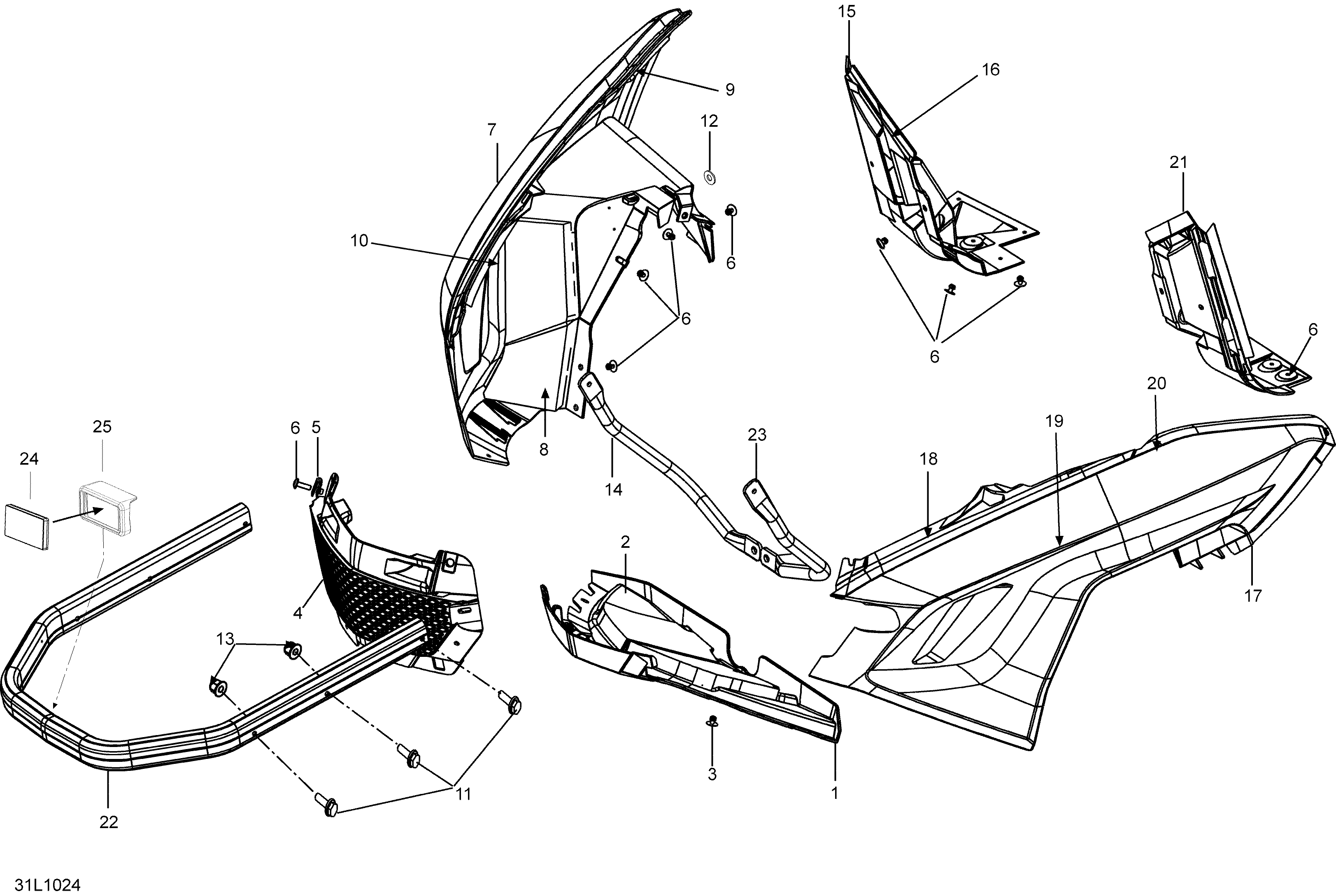

09- Bottom Pan для BRP Lynx Adventure GT 600 SDI - 2010
-
№АртикулНазвание
-
1502007082 Bottom-pan frontBottom-pan front
-
2502007002 IsolationIsolation
-
3293150103 RivetRivet
-
4502006913 GrillGrill
-
5250100113 NutNut
-
6250000128 ScrewScrew
-
7502007048 Bottom-pan R.H.Bottom-pan R.H.
-
8502007006 IsolationIsolation
-
9502007008 IsolationIsolation
-
10502007009 IsolationIsolation
-
11207664044 ScrewScrew
-
12234052490 WasherWasher
-
13233261414 NutNut
-
14502007015 Bumber support R.H.Bumber support R.H.
-
15502007126 Bottom-pan rear, R.H.. NTC_600SDIBottom-pan rear, R.H.. NTC_600SDI
-
16502007038 Aluminium foilAluminium foil
-
17502007081 Bottom-pan L.H.Bottom-pan L.H.
-
18502007003 IsolationIsolation
-
19502007004 IsolationIsolation
-
20502007005 IsolationIsolation
-
21502007124 Bottom-pan rear, R.H.Bottom-pan rear, R.H.
-
22502007083 BumberBumber
-
23502007014 Bumber support L.H.Bumber support L.H.
