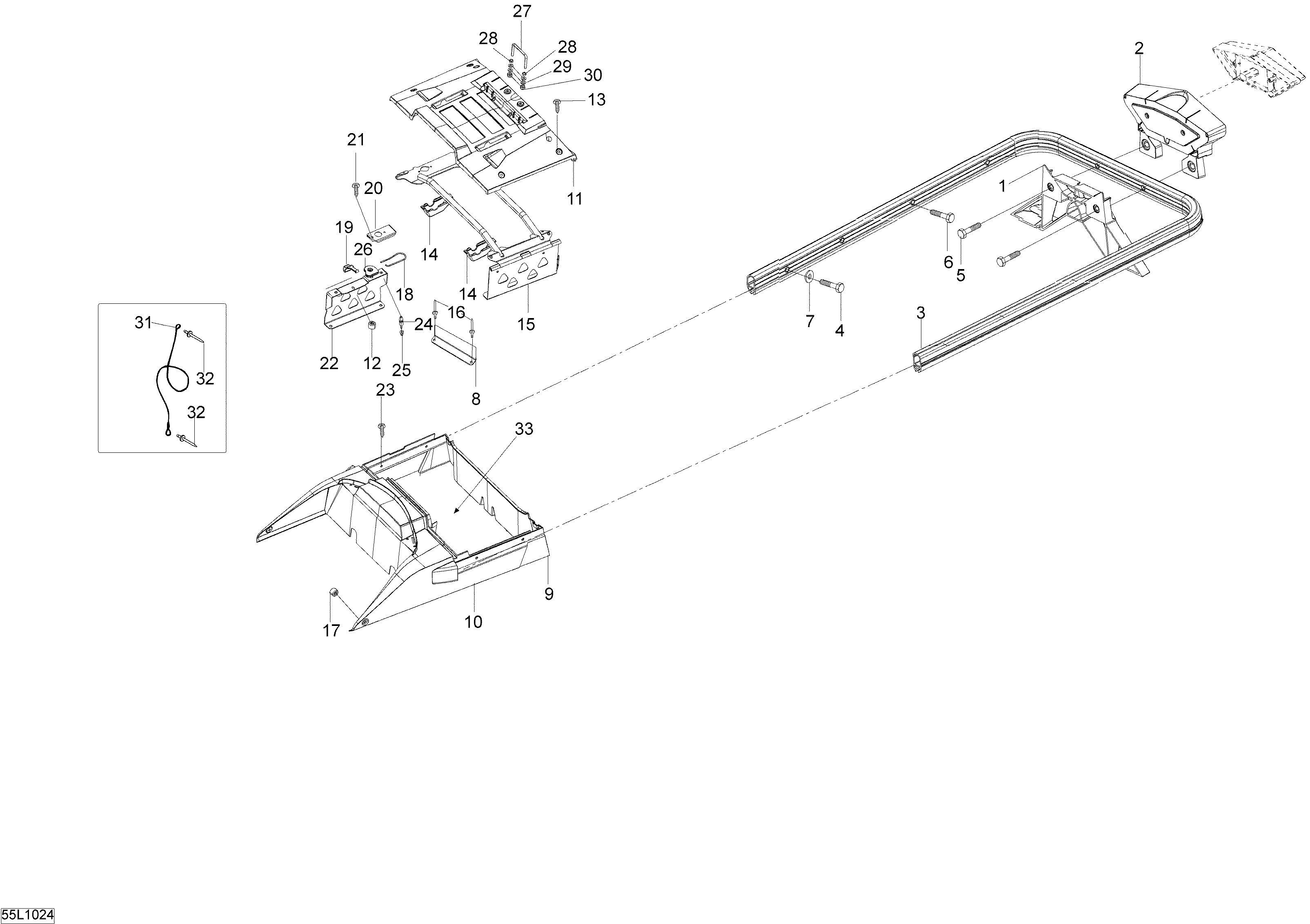

09- Rack для BRP Lynx Adventure GT 600 SDI - 2010
-
№АртикулНазвание
-
1511000559 Rearlight supportRearlight support
-
2511000630 Rearlight coverRearlight cover
-
3511000563 Rack tubeRack tube
-
4207561644 ScrewScrew
-
5207663534 ScrewScrew
-
6205562044 ScrewScrew
-
7234062430 WasherWasher
-
8510005156 Cable supportplateCable supportplate
-
9510004873 Storage box ass'yStorage box ass'y
-
10510004874 Storage boxStorage box
-
11510004875 Storage box coverStorage box cover
-
12510005147 SleeveSleeve
-
13250000389 ScrewScrew
-
14510004999 CoverCover
-
15510004951 LocktubeLocktube
-
16390402200 RivetRivet
-
17605452114 Rubber plugRubber plug
-
18269700017 LockspringLockspring
-
19510005072 PullerPuller
-
20510005112 Lock pin coverLock pin cover
-
21732600030 ScrewScrew
-
22510004998 Loking plateLoking plate
-
23207561644 ScrewScrew
-
24605452035 Lock pinLock pin
-
25233261416 NutNut
-
26510005044 Lock pin guideLock pin guide
-
27510004876 PinPin
-
28250000135 NutNut
-
2920117 WasherWasher
-
30232561414 NutNut
-
31546777 Seat Retainer CableSeat Retainer Cable
-
32390402200 RivetRivet
-
33510005043 FoamFoam
