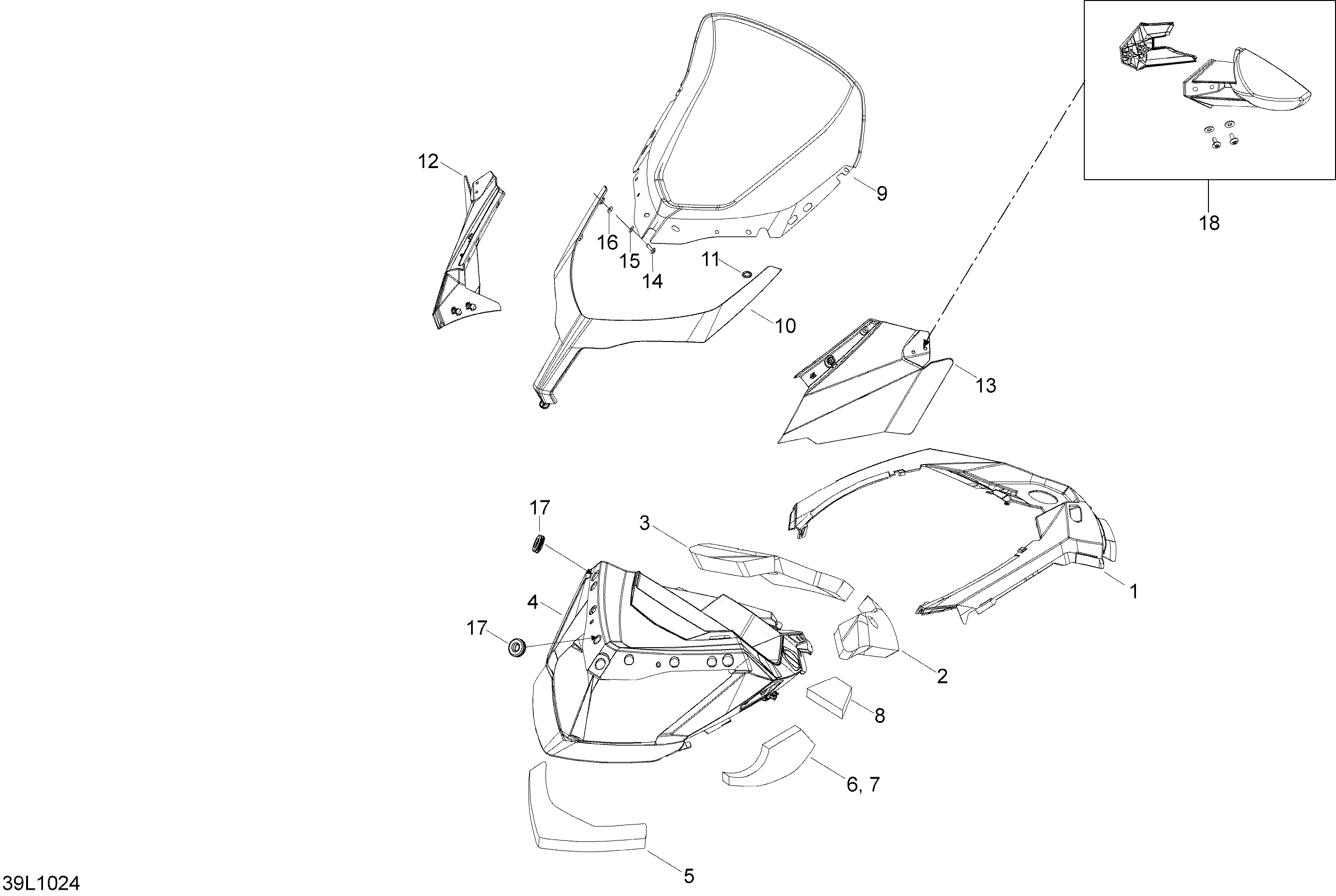

09- Windshield and Console для BRP Lynx Adventure GT 600 SDI - 2010
-
№АртикулНазвание
-
1517304574 ConsolConsol
-
2517304317 L.H. IsolationL.H. Isolation
-
3517304318 R.H. IsolationR.H. Isolation
-
4517304272 Indicator SupportIndicator Support
-
5517304314 IsolationIsolation
-
6517304315 L.H. IsolationL.H. Isolation
-
7517304316 R.H. IsolationR.H. Isolation
-
8517304319 IsolationIsolation
-
9517304287 WidshieldWidshield
-
10517303744 SupportSupport
-
11732610072 Nut pushNut push
-
12517303745 Air deflector R.H.Air deflector R.H.
-
13517303746 Air deflector L.H.Air deflector L.H.
-
14250000146 Torx-Screw K50 x 16Torx-Screw K50 x 16
-
15250200025 WasherWasher
-
16250200024 WasherWasher
-
17517303756 GrommetGrommet
-
18517303976 L.H./R.H. Mirror ass'yL.H./R.H. Mirror ass'y
