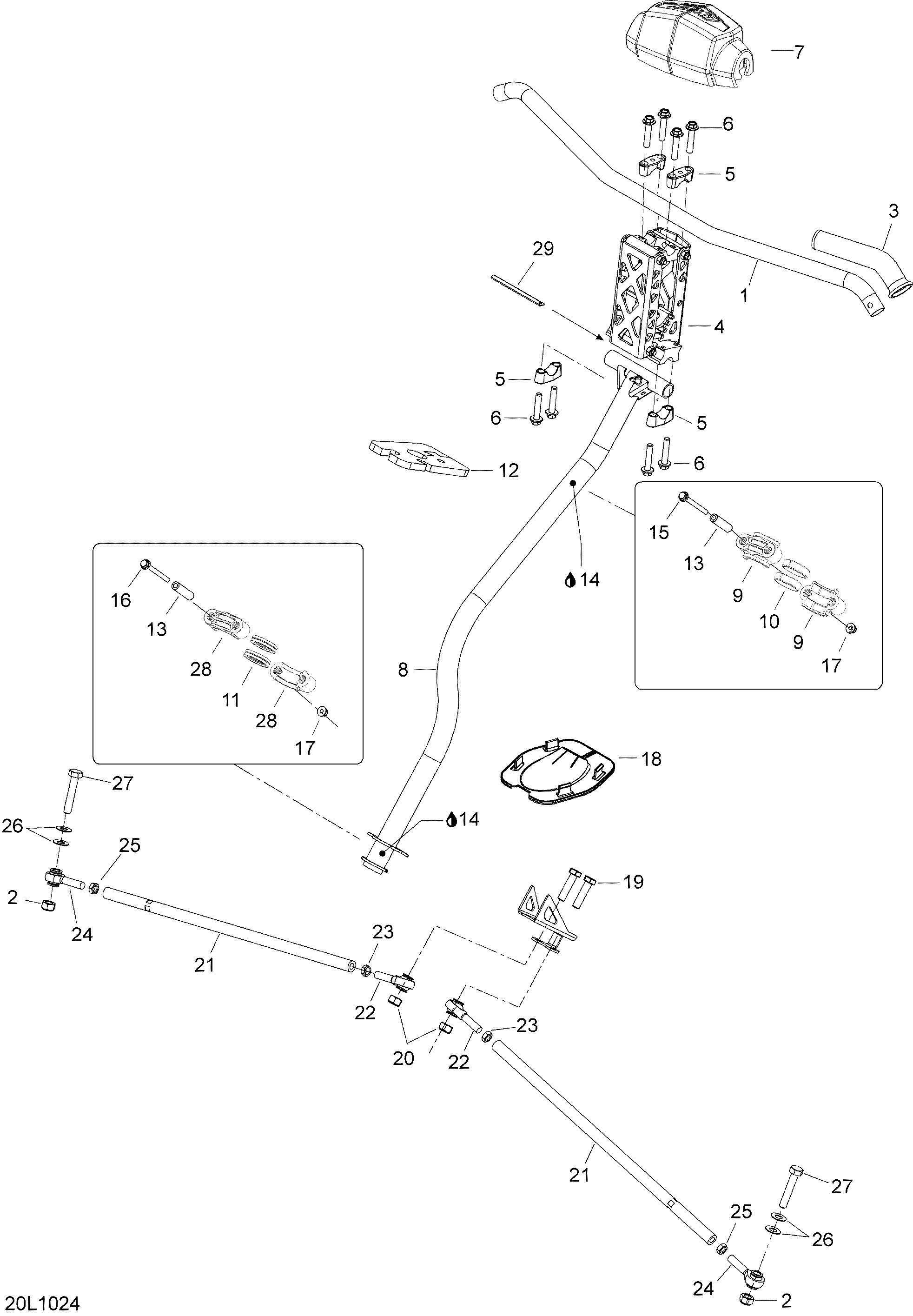

07- Steering System для BRP Lynx Adventure GT 600 SDI - 2010
-
№АртикулНазвание
-
1506152399 Handle BarHandle Bar
-
2232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
3506152483 GripGrip
-
4860200269 ExtensionExtension
-
5506152394 Steering SupportSteering Support
-
6250000285 Hex Flanged Screw M8 x 40Hex Flanged Screw M8 x 40
-
7506152265 Steering PadSteering Pad
-
8506152310 Main Tube PaintMain Tube Paint
-
9506152219 Half-Housing UpperHalf-Housing Upper
-
10506152292 VIBRAT. GASKET upperVIBRAT. GASKET upper
-
11506152218 VIBRAT. GASKET lowerVIBRAT. GASKET lower
-
12506152404 CushionCushion
-
13506152297 Housing BushingHousing Bushing
-
14293550033 Synthetic Grease, 400 gSynthetic Grease, 400 g
-
15207667086 Hex Flanged Screw M6 x 70Hex Flanged Screw M6 x 70
-
16207667086 Hex Flanged Screw M6 x 65Hex Flanged Screw M6 x 65
-
17233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
18506152163 PlatePlate
-
19207004044 Hex. Screw M10 X 40Hex. Screw M10 X 40
-
20232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
21506152095 Tie RodTie Rod
-
22506152081 Ball JointBall Joint
-
23250100016 LH Hex Jam Nut M10LH Hex Jam Nut M10
-
24506152019 Ball JointBall Joint
-
25732610010 RH Hex Jam Nut M10RH Hex Jam Nut M10
-
26506152194 WasherWasher
-
27207005544 Hex Screw M10 X 55Hex Screw M10 X 55
-
28506152217 Half housing lowerHalf housing lower
-
29506152415 Limiter PlateLimiter Plate
