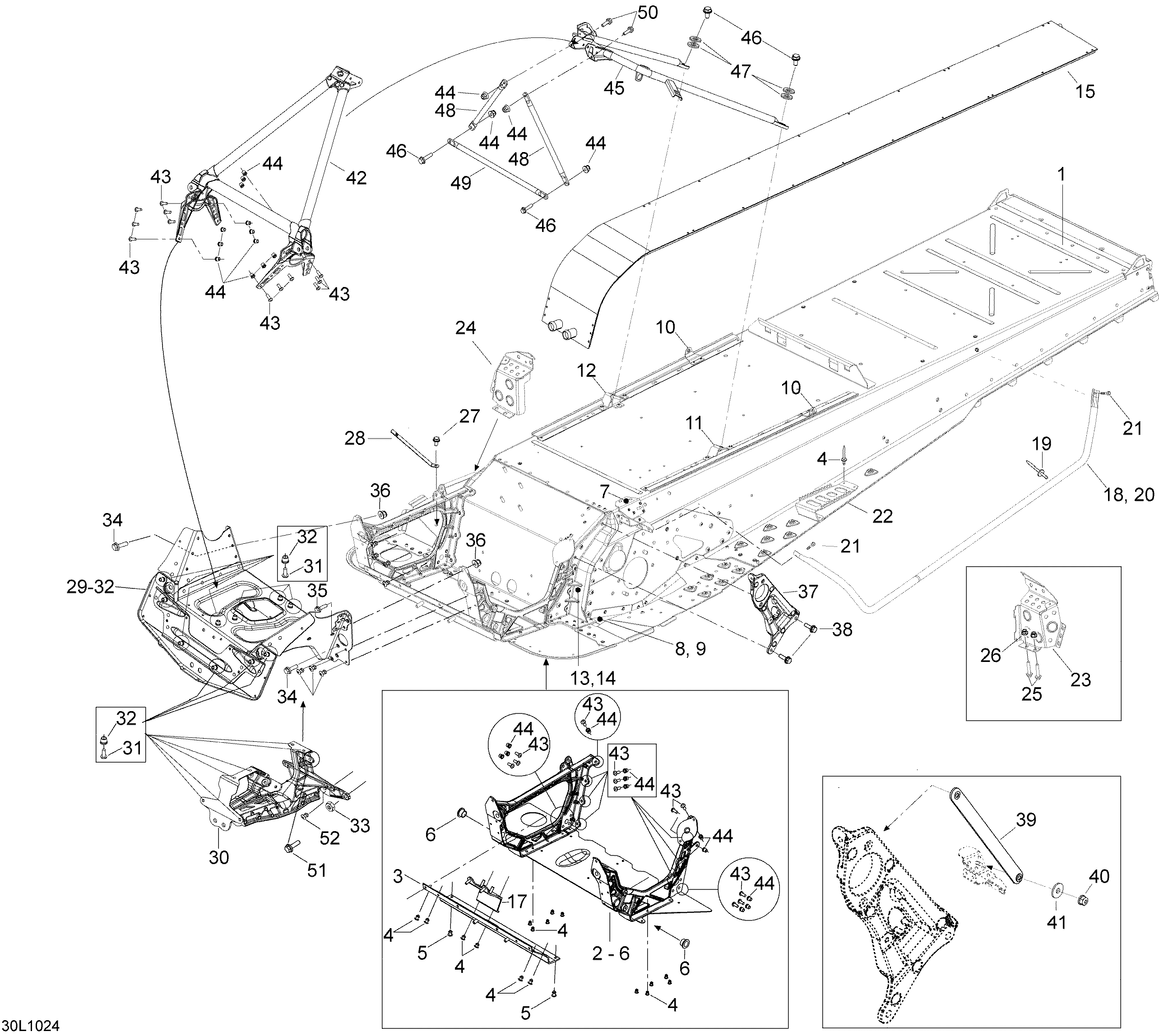

09- Frame для BRP Lynx Adventure GT 600 SDI - 2010
-
№АртикулНазвание
-
1518326425 Frame ass'y XU. Includes 1 - 12Frame ass'y XU. Includes 1 - 12
-
2518326480 Module E. Includes 2 - 6Module E. Includes 2 - 6
-
3518326198 Front memberFront member
-
4293150163 Rivet hucklokRivet hucklok
-
5293150164 Rivet hucklokRivet hucklok
-
6505070954 CushionCushion
-
7605355235 Fastening bracketFastening bracket
-
8518326439 Drive axle cover R.H.Drive axle cover R.H.
-
9518326440 Drive axle cover L.H.Drive axle cover L.H.
-
10518325987 Seat box bracketSeat box bracket
-
11518326109 Bracket L.H.Bracket L.H.
-
12518326110 Bracket R.H.Bracket R.H.
-
13518325524 Frame corner L.H.Frame corner L.H.
-
14518325526 Frame corner R.H.Frame corner R.H.
-
15509000586 RadiatorRadiator
-
17518325943 MAG SupportMAG Support
-
18605254999 Footrest support tube L.H.Footrest support tube L.H.
-
19293150163 RivetRivet
-
20605255000 Footrest support tube R.H.Footrest support tube R.H.
-
21207662086 Screw-hex. Flange M6 x 20Screw-hex. Flange M6 x 20
-
22605354068 Footrest blackFootrest black
-
23518326464 Toe hook L.H.Toe hook L.H.
-
24518326465 Toe hook R.H.Toe hook R.H.
-
25207662086 Hex. Flange screw M6 x 20Hex. Flange screw M6 x 20
-
26233261414 Elastic flanged nut M6Elastic flanged nut M6
-
27250000128 Torx-Screw M6 x 20Torx-Screw M6 x 20
-
28514054616 Brachet springBrachet spring
-
29518325924 Cross member. Includes 29-32Cross member. Includes 29-32
-
30518327475 SupportSupport
-
31207662044 Hex. Flanged Screw M6 X 20 (8.8)Hex. Flanged Screw M6 X 20 (8.8)
-
32233261414 Hex. Flanged elastic nut M6Hex. Flanged elastic nut M6
-
33233281414 Elastic flanged nut M8Elastic flanged nut M8
-
34210262080 Hex. Screw forming M6 x 20Hex. Screw forming M6 x 20
-
35250000450 Hex. Flange screwHex. Flange screw
-
36233261414 Flanged elastic nutFlanged elastic nut
-
37518326185 Pulley supportPulley support
-
38207582586 Hex. Flanged screw M8 x 25Hex. Flanged screw M8 x 25
-
39518326449 Draft barDraft bar
-
40233261414 Elastic flanged nut M6Elastic flanged nut M6
-
41234081430 Flat washerFlat washer
-
42518325929 Member-frontMember-front
-
43207662044 Hex. Flanged screw M6 x 20 (10.9)Hex. Flanged screw M6 x 20 (10.9)
-
44233261414 Elastic flanged nut M6Elastic flanged nut M6
-
45518326103 Support tube upperSupport tube upper
-
46207662086 Hex. Flanged screw M6 x 20Hex. Flanged screw M6 x 20
-
4720061 Lock washer D6Lock washer D6
-
48518325114 SupportSupport
-
49518325115 Upper columUpper colum
-
50250000450 Hex. Flanged screw M6 x 25Hex. Flanged screw M6 x 25
-
51207561244 Hex. Flanged screw M6 x 12Hex. Flanged screw M6 x 12
-
52293150147 Hemlock rivetHemlock rivet
