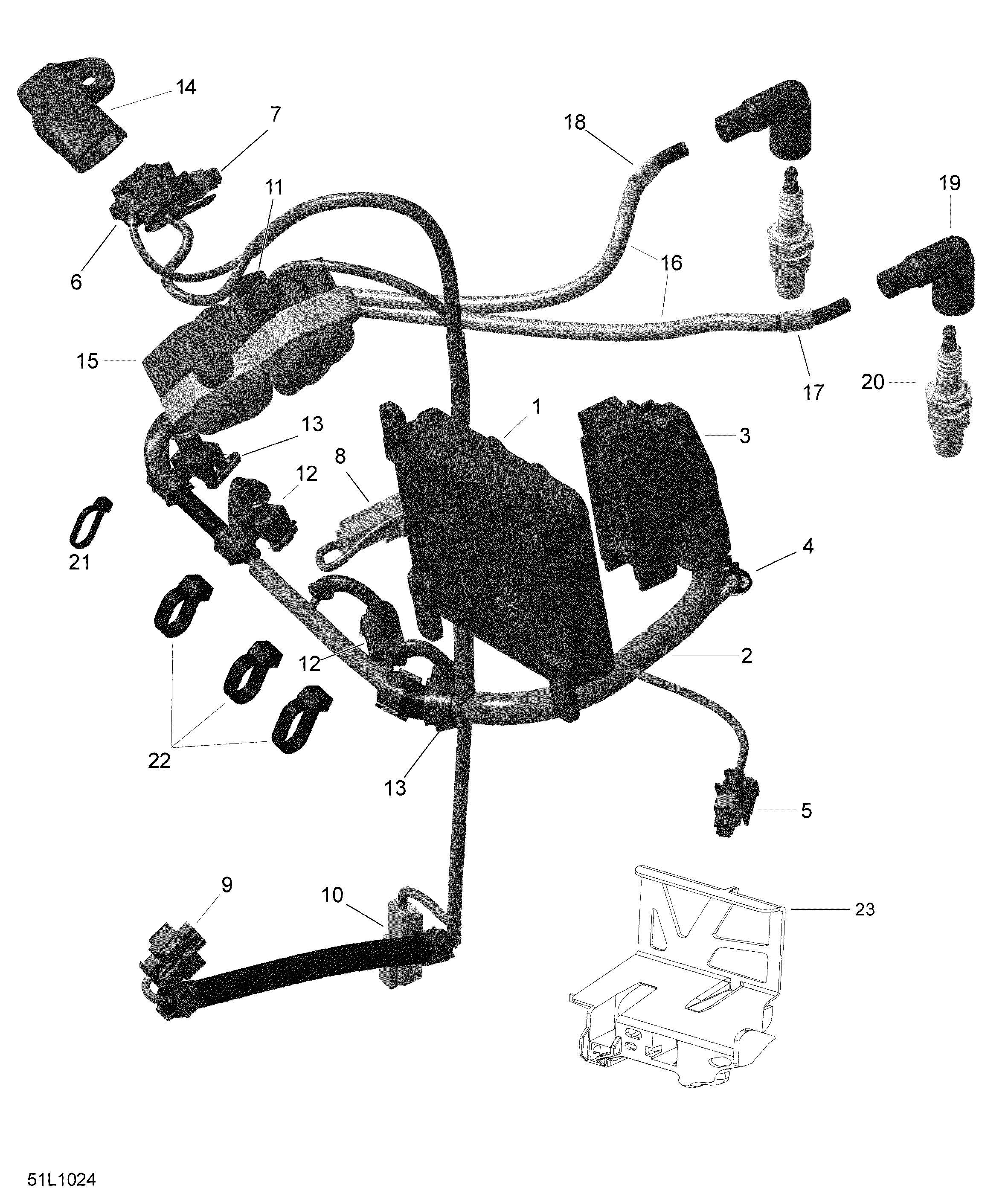

06- Engine Harness And Electronic Module для BRP Lynx Adventure GT 600 SDI - 2010
-
№АртикулНазвание
-
1420665872 Electronic boxElectronic box
-
2420665450 Wiring harness ass'yWiring harness ass'y
-
3420664450 Connector housingConnector housing
-
14707000564 Pressure/temperature sensorPressure/temperature sensor
-
15278001546 Double ignition coilDouble ignition coil
-
16420664302 Ignition cable ass'y 190mmIgnition cable ass'y 190mm
-
17420660632 Marking sleeve MAGMarking sleeve MAG
-
18420660630 Marking sleeve PTOMarking sleeve PTO
-
19278000237 Spark plug connectorSpark plug connector
-
20512060028 Spark plug NGK BR8ECSSpark plug NGK BR8ECS
-
21420866714 ClampClamp
-
22420866716 ClampClamp
-
23512060279 Module SupportModule Support
