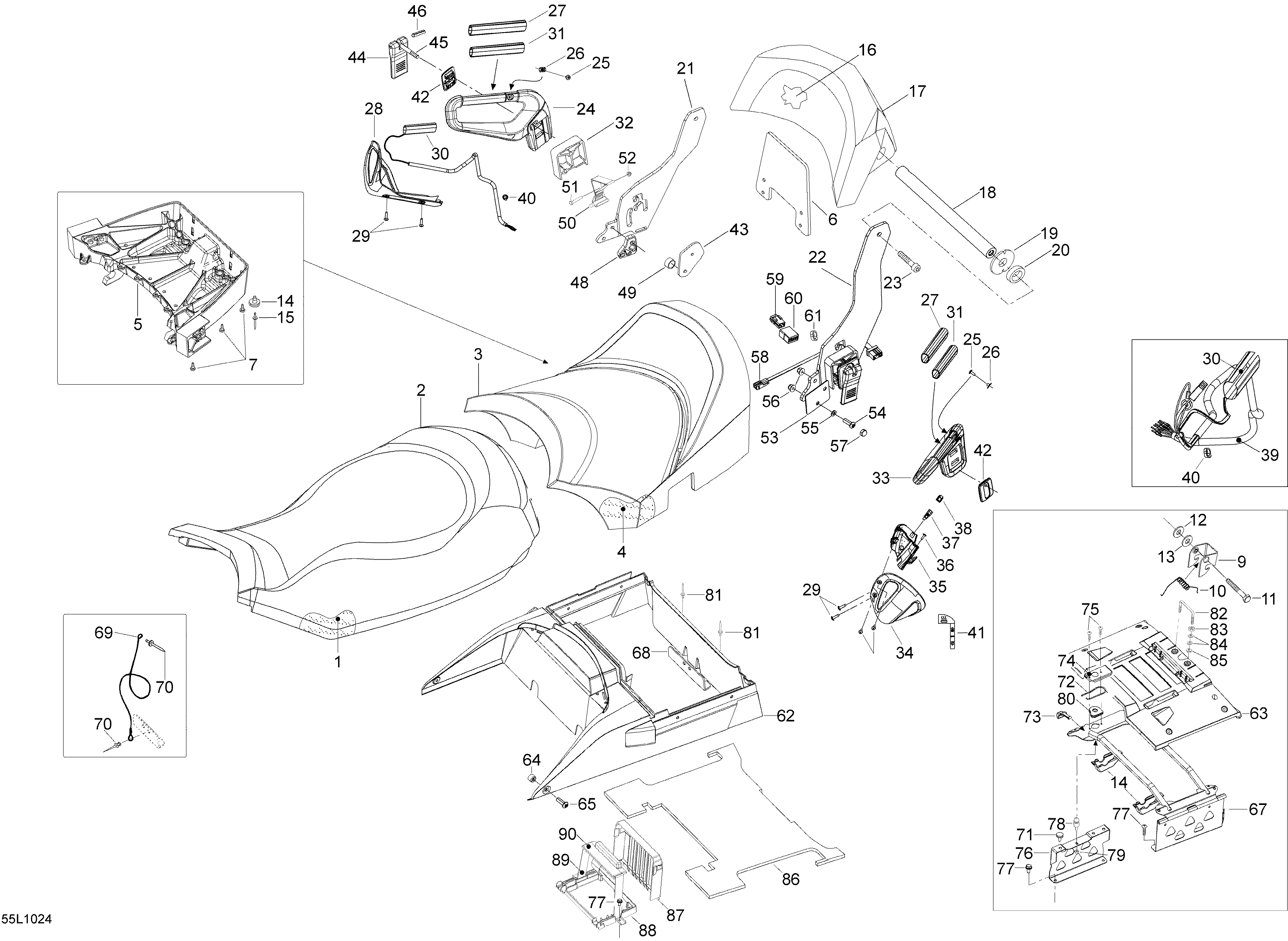

09- Seat для BRP Lynx Adventure GT 600 SDI - 2010
-
№АртикулНазвание
-
1510005316 Foam, frontFoam, front
-
2510005327 Cover, frontCover, front
-
3510005320 Cover rearCover rear
-
4510004871 Foam rearFoam rear
-
5510004816 Seat baseSeat base
-
6510005330 Backrest plateBackrest plate
-
7414644300 DartDart
-
9708000144 LockLock
-
10708000369 SpringSpring
-
11207068044 Hex. ScrewHex. Screw
-
12732610072 Nut pushNut push
-
13234061410 Washer M6Washer M6
-
14510004999 Protection coverProtection cover
-
15293150015 RivetRivet
-
16510004985 Foam backrestFoam backrest
-
17510005259 Cover backrestCover backrest
-
19510005312 WasherWasher
-
20510004378 Rubber washerRubber washer
-
21510004988 R.H. ArmR.H. Arm
-
22510004989 L.H. ArmL.H. Arm
-
23205402546 Socket head screw M10 X 25Socket head screw M10 X 25
-
24510004948 R.H. handleR.H. handle
-
25250000129 Torx-screwTorx-screw
-
26293100003 Nut-plateNut-plate
-
27510004449 Handle gripHandle grip
-
28510004415 R.H. DeflectorR.H. Deflector
-
29250000199 Screw 25mmScrew 25mm
-
30515176393 HeaterHeater
-
31510004709 Handle reinforcementHandle reinforcement
-
32510004939 AdapterAdapter
-
33510004947 L.H. handleL.H. handle
-
34510004416 L.H. DeflectorL.H. Deflector
-
35510004566 Switch-housingSwitch-housing
-
36250000146 Torx-Screw K50 x 16Torx-Screw K50 x 16
-
37510004413 Switch rockerSwitch rocker
-
38510004414 Switch-protectorSwitch-protector
-
39515176241 Harness ass'yHarness ass'y
-
40414115200 Tie-rapTie-rap
-
41516002835 DecalDecal
-
42510004405 CoverCover
-
43510004990 PlatePlate
-
44510004992 Lock ass'yLock ass'y
-
445243419 LockLock
-
45510004993 ScrewScrew
-
46510005088 PinPin
-
48510005151 AdapterAdapter
-
49510005042 SleeveSleeve
-
50510005139 Safety lockSafety lock
-
51205064044 Socket head screw M6 x 40Socket head screw M6 x 40
-
52232561414 Elastic flanged nut M6Elastic flanged nut M6
-
53510004995 Cover plateCover plate
-
54207086044 Hex. Screw M8 x 60Hex. Screw M8 x 60
-
55234081410 WasherWasher
-
56233281414 NutNut
-
5728056 CoverCover
-
58515176747 HarnessHarness
-
59515175494 Housing-maleHousing-male
-
60515175817 Housing terminale-maleHousing terminale-male
-
61414115200 Tie-rapTie-rap
-
62510004874 Storage boxStorage box
-
63510004875 Storage box coverStorage box cover
-
64510005147 SleeveSleeve
-
65250000454 ScrewScrew
-
67510004951 Lock tubeLock tube
-
68510005156 Cable support plateCable support plate
-
69546777 Retainer cableRetainer cable
-
70390402200 RivetRivet
-
71605452114 Rubber plugRubber plug
-
72269700017 LockspringLockspring
-
73510005072 PullerPuller
-
74510005112 Lock pin coverLock pin cover
-
75732600030 ScrewScrew
-
76510004998 Loking plateLoking plate
-
77207561644 Screw M6 x 16Screw M6 x 16
-
78605452035 Lock pinLock pin
-
79233261416 Nut M6Nut M6
-
80510005044 Lock pin guideLock pin guide
-
81293150104 RivetRivet
-
82510004876 Fastener pinFastener pin
-
83250000135 NutNut
-
8420117 WasherWasher
-
85232561414 NutNut
-
86510005043 FoamFoam
-
87510005079 Battery coverBattery cover
-
88515176804 Battery supportBattery support
-
89510005143 Battery strapBattery strap
-
90510005146 Strap coverStrap cover
