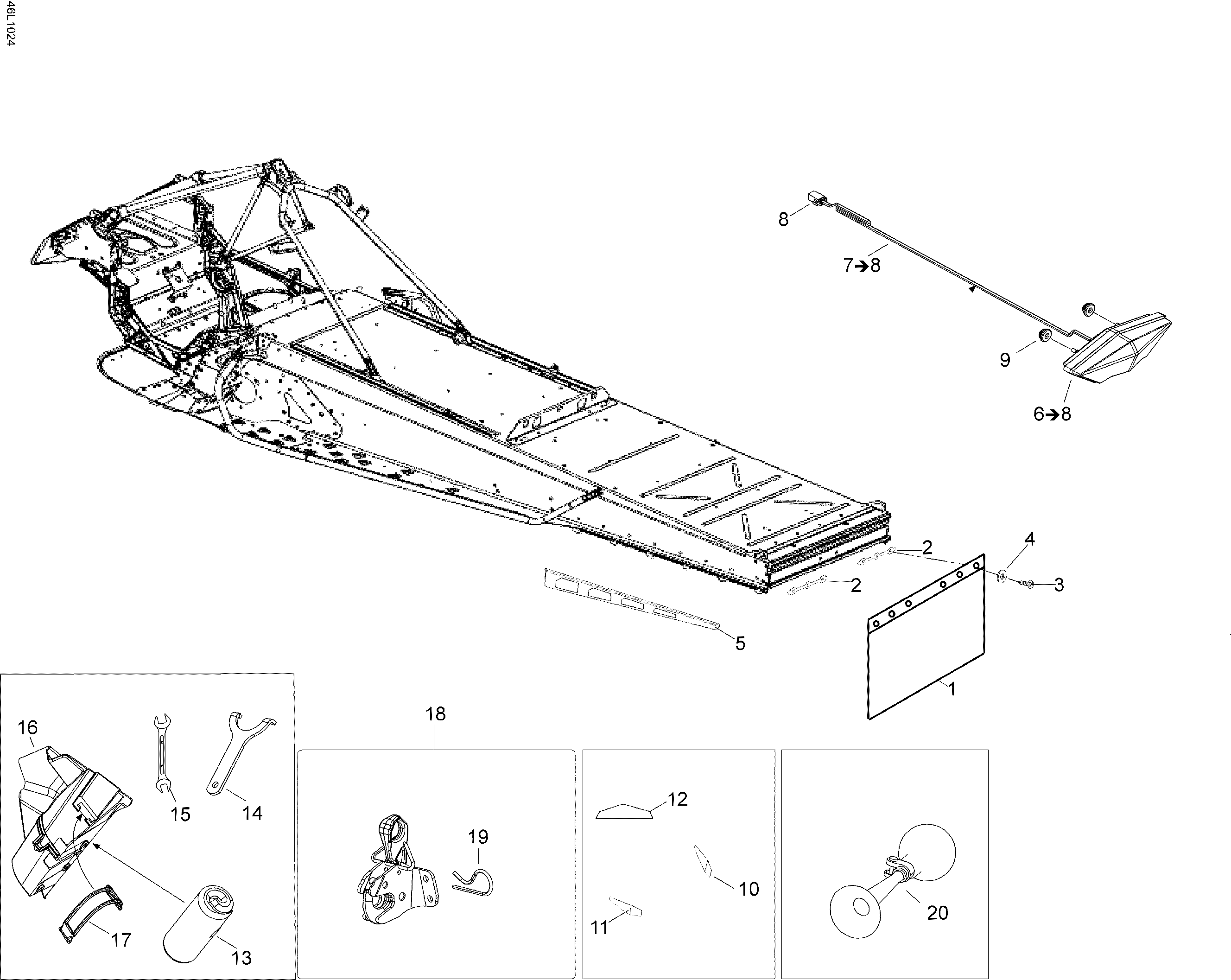

09- Utilities для BRP Lynx Adventure GT 600 SDI - 2010
-
№АртикулНазвание
-
1520000857 Snow guardSnow guard
-
2520000847 Screw PlateScrew Plate
-
3250000145 ScrewScrew
-
4250200025 WasherWasher
-
5520000693 Snow guard R.H.Snow guard R.H.
-
5520000694 Snow guard L.H.Snow guard L.H.
-
6520000692 Rear lightRear light
-
7520000849 Wiring HarnessWiring Harness
-
8515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
940611 Screw PlastofastScrew Plastofast
-
10520000843 Reflector RHReflector RH
-
11520000844 Reflector LHReflector LH
-
12705002423 Reflector AmberReflector Amber
-
13529000050 Tool kitTool kit
-
14529035582 Adjusting wrenchAdjusting wrench
-
1534017 WrenchWrench
-
16520000720 Tool kit rackTool kit rack
-
17520000528 Fastening rubberFastening rubber
-
18520000796 Hitch ass'yHitch ass'y
-
1941029 Needle PinNeedle Pin
-
20549011291 HornHorn
