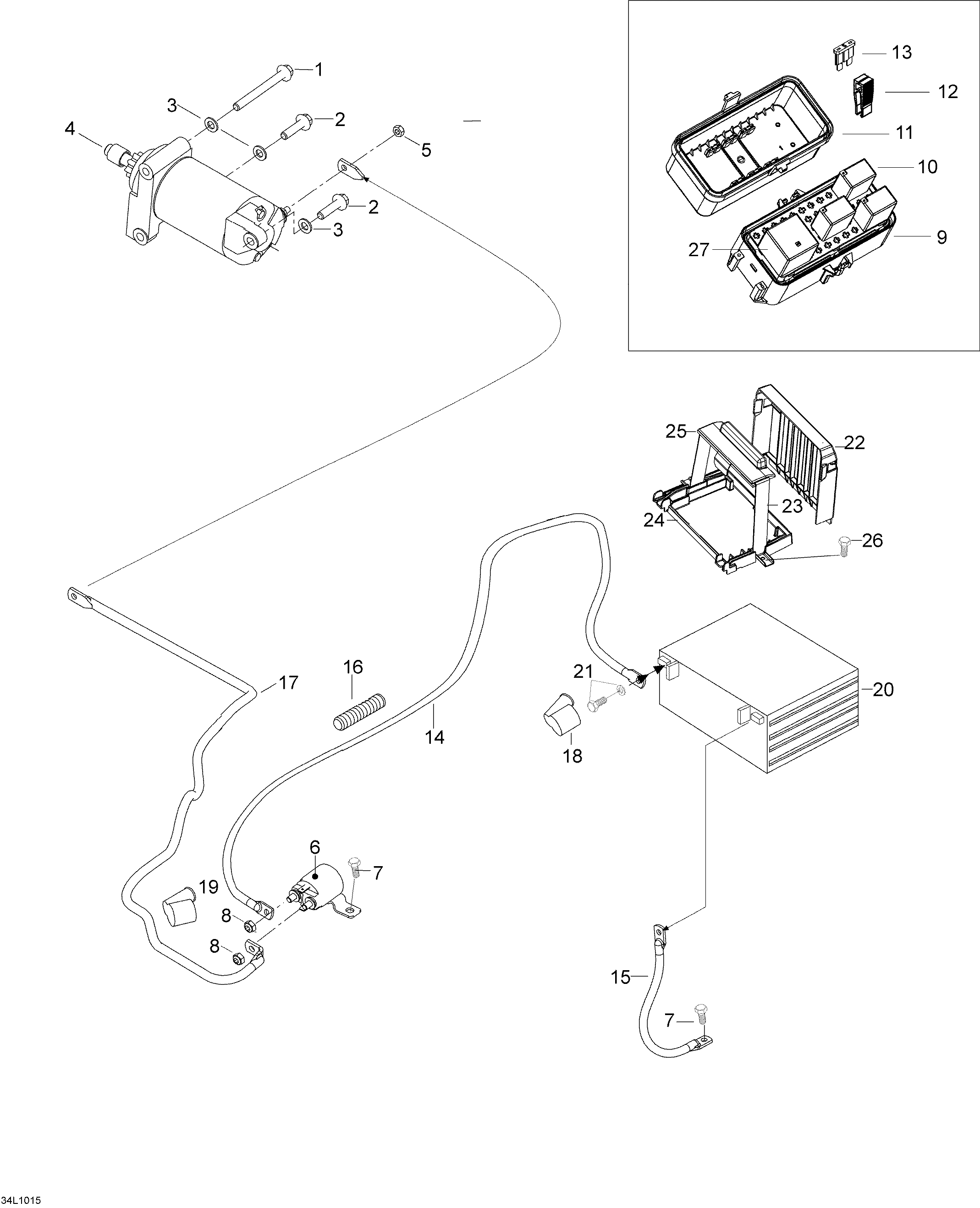

08- Battery для BRP Lynx Adventure GT 600 SDI - 2010
-
№АртикулНазвание
-
1207587544 ScrewScrew
-
2207583044 Hex. ScrewHex. Screw
-
3250200008 WasherWasher
-
4515177389 Electric startElectric start
-
533010 Elastic stop nut M6Elastic stop nut M6
-
6515176011 SolenoidSolenoid
-
7207561644 ScrewScrew
-
833200 Elastic flanged nut M6Elastic flanged nut M6
-
9415129856 Fuse Box KitFuse Box Kit
-
10710000739 Relay 10 AmpRelay 10 Amp
-
11515176066 CoverCover
-
12515175811 ToolTool
-
13278000344 Fuse 5 AFuse 5 A
-
13278000704 Fuse 7.5 AFuse 7.5 A
-
13409003900 Fuse 20 AFuse 20 A
-
13410917200 Fuse 30 AFuse 30 A
-
1342044 Fuse 1 AFuse 1 A
-
14515176805 Battery wireBattery wire
-
15515176780 Ground wireGround wire
-
1628015 TubingTubing
-
17515176806 Battery wireBattery wire
-
18278001771 CoverCover
-
19570151000 CoverCover
-
20410301203 Battery. Includes 24 to 25Battery. Includes 24 to 25
-
21295500849 Battery fastener kitBattery fastener kit
-
22510005079 Battery coverBattery cover
-
23510005143 Retainer strapRetainer strap
-
24515176804 Battery spaceBattery space
-
25510005146 Retainer strap tubingRetainer strap tubing
-
26207561644 ScrewScrew
-
27710000740 Relay 30 AmpRelay 30 Amp
